• Model NO.：WC67K-100T,2500
• Material / Metal Process：Mild Steel,Stainless Steel
• Color：Optional
• Seal Ring：Japan Nok
• Certificates：Ce, ISO, SGS
• Warranty：2 Year
• Transport Package：Plastic Cover
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462219000
• Production Capacity：3000 Sets,Year

No.Parts NameBrandBrand Location1Main motorSiemensGermany2Backgauge motorDetongShanghai China3Ram motorKongteNanjing China4ElectricsSchneiderFrance5Oil CylinderYuhuaMaanshan China6Seal ringNokJapan7Hydraulic valveRexrothGermany8PumpHangfaShanghai China9ControllerE21Nanjing China10MouldGuolingMaanshan China11Pipe connectorEMBGermany12FootswitchKarconSouth Korea13Ball screwHiwinTaiwan14Controller with moveable armYES15Front and back protection fenceYES16Backgauge with ball screwYES17Backgauge travel500MM18Emergency buttonYES
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Stop fingers 3
Front supporting arms 2
Emergency stop button;
Back, left and right safty fence
Foundation bolts 1set
Manuals and diagram 1book

Parameters:TypeNominal Force
(KN)Worktable Length
(mm)Poles Distance
(mm)Throat Depth
(mm)Slider Travel
(times/min)Max Open
(mm)Power
(kw)40T/2200400220018502301003205.540T/2500400250018502301003205.550T/2500500250018502301003205.563T/2500630250019002501003205.563T/3200630320025602501003205.580T/2500800250019903001003207.580T/3200800320025603201003507.580T/4000800400032003201003507.5100T/25001000250019003201203507.5100T/32001000320026003201504007.5100T/40001000400032003201504007.5125T/320012503200260032015040011125T/400012504000320032015040011160T/320016003200258032020046011160T/400016004000290032020046011160T/500016005000390032020046011160T/600016006000490032020046011200T/320020003200248032020046011200T/400020004000290032020046011200T/500020005000390032020046011200T/600020006000490032020046011250T/320025003200245040025059018.5250T/400025004000290040025059018.5250T/500025005000390040025059018.5250T/600025006000490040025059018.5300T/320030003200245040025059022300T/400030004000290040025059022300T/500030005000390040025059022300T/600030006000490040025059022400T/320040003200240040025059030400T/400040004000290040025059030400T/500040005000390040025059030400T/600040006000490040025059030500T/500050005000390040025059045500T/600050006000490040032059045600T/500060005000290040032059055600T/600060006000490040032059055

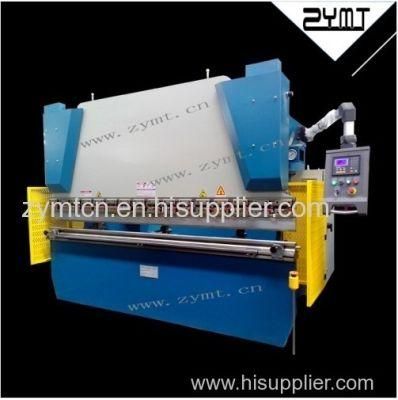

2.Hydraulic Press Brake Features:
1) The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology, high strengh and good rigidity of machine;
2) Double hydraulic oil cylinder is applied for upper transmission, provided with mechnical limit stopper and synchronous torsion bar, typical of stable and reliable operation, as well as high precision;
3) Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use;
4) Upper die is fitted with deflection compensation device.

Price Item: FOB Nanjing,China.
Delivery: Approx. 4-8 weeks(4mm-12mm), 8-16 weeks(16mm-30mm): after receipt of deposit and order confirmation.(subject to the production schedule)
Warranty: 12 months against manufacturing defects on part only. Price does not include any form of liabilities if any exclusive of service and repair outside, China.
Payment: By wire transfer 30% deposit on order; balance 70% upon delivery of machine.



Main components of ZYB model:(Standard)
1.       Control System: DELEM DA52S
2.       Servo motor and drive: Estun China
3.       Hydraulic System: HOERBGER/BOSCH Germany
4.       Ball bearing lead screw: Taiwan HIWIN
5.       Straight-line guide: Taiwan HIWIN
6.       Connector: Germany EMB
7.       Seal ring: Germany FIETZ or Japanese VALQUA
8.       Raster Ruler: Heidemhain Germany
9.       Main electrical elements: TE/OMROM/SIEMENS
10.   Standard axes: Y1,Y2,X and V(V for crowing table)

Optional:
1.       DELEM DA56: +USD 6000.00
2.       DELEM DA66T: +USD 12000.00
3.       R/Z1/Z2-axis: +USD 2400.00/axis
4.       Laser beam: +USD 6000.00
5.       Light beam: +USD 1000.00

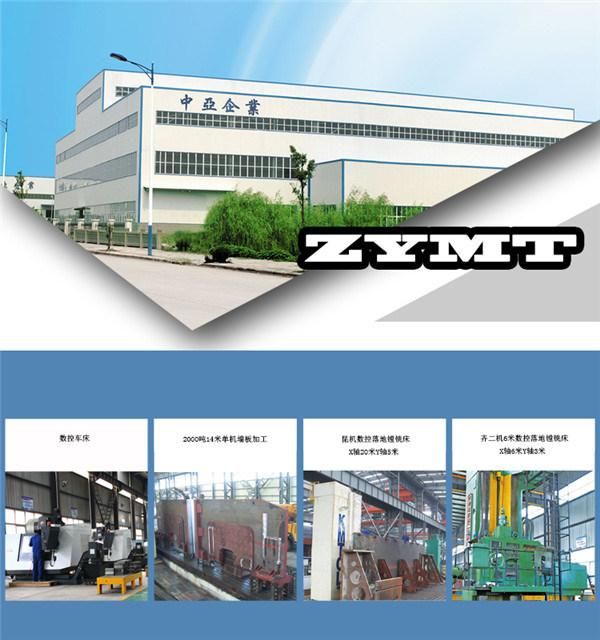

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press

If you have any demand, please contact me directly, or browse through our web site: leolivia.en.made-in-china.com
