• Model NO.：WC67K-40T,2200
• Backgauge Travel：500mm
• Controller with Movable Arm：Yes
• Front and Back Protection Fence：Yes
• Backgauge with Ball Screw：Yes
• Emergency Button：Yes
• Transport Package：Plastic Cover
• Specification：CE, ISO, SGS
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462299000
• Production Capacity：3000sets,Year

ModelNominal Pressure(KN)Length of TableDistance between columnsThroat DepthStrokeOpen HeightMain Motor(KW)Overall Dimensions L*W*H(mm)(mm)(mm)(mm)(mm)(mm)63t/2500630250019003501703805.53100*1450*2050100t/32001000320027004002004207.53500*1580*2400125t/3200125032002700400200420113500*1580*2400160t/3200160032002700400200420113500*1650*2500200t/3200200032002700400200420153500*1680*2550250t/3200250032002700400200420153500*1700*2600300t/3200300032002700400200420223500*1800*2730400t/4000300040004000400320420304500*2450*3500

Main details pictures:

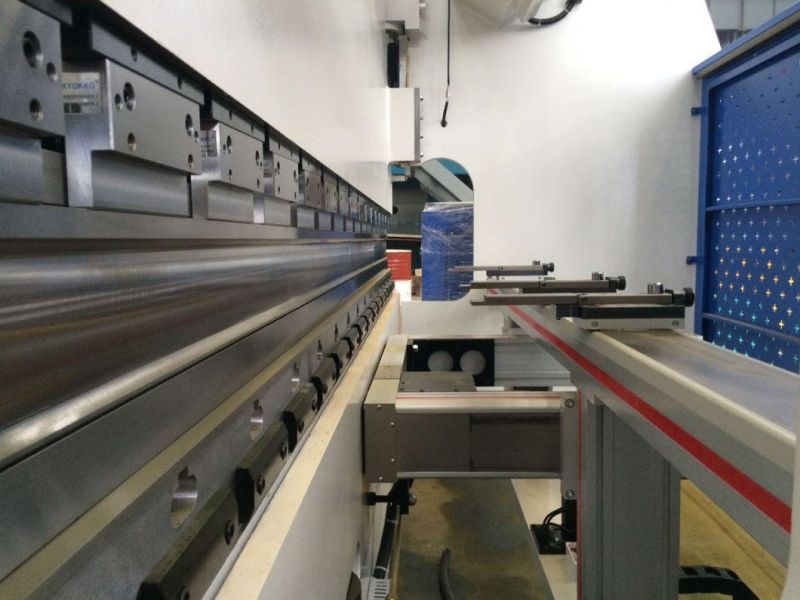

Mechnical synchronous torque system:
A efficient and accurate mechanical hydraulic system is used for the synchronism by means of a torsion bar ensures the parallelism between beams.

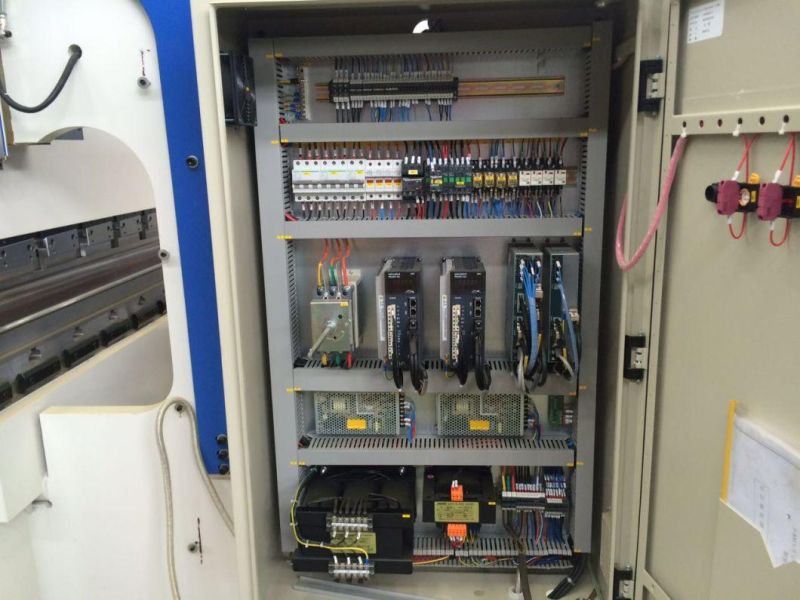

Electrical control:Schneider
Mainly electrical components are in accordance with the DIN or ISO standard.

Packaging & Shipping

(1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
(3)after loading,our professional documentary staff will follow the order till the product departs from port.

Our Services

1.Bending tools and accessories-Customized to your specifications
In our bending tools, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.

2.Service package

Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.

Special:Engineers available to service machinery overseas for the necessary maintenance.

Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.

3.Technical Service(After-sale service)

Installation and start-up(Available for complex and big machines or if you have demand)


1. Whole steel welded structure, with internal stess eliminated by vibration aging technology, high strength and good rigidity;
2. Hydraulics with torsion bar;
3. Intergrated hydraulic system, upper transmission, pressure control for adjustment of tonnage;
4. Segmented upper punch, multi-V lower die;
5. Oblique steel solid deflection compensation device is adopted for upper punch;
6. International standard electrics and switches;
7.2 axis(Y-upper ram, X-back gauge) NC controllers from China E20, E200; DELEM DA41; Cybelec DNC400; Italy Maper HT072;
8. E10 Digital display system display the working position of X, Y;
9. Main operation are by the NC controllers or display system;
10. Ball screw and line guide rail as optional choices for guarantee the higher precision;
