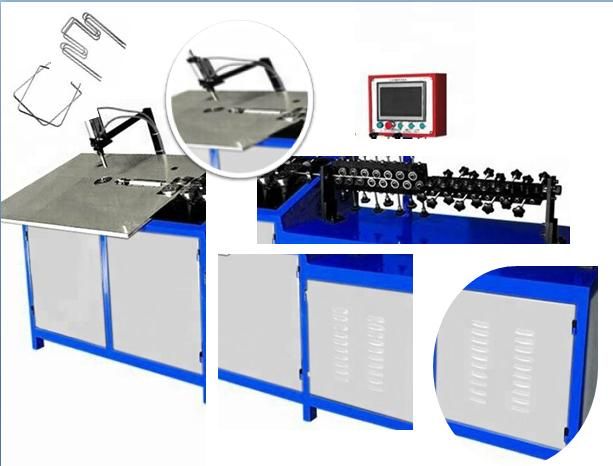

Hydraulic 2D Wire Rack & Frame Forming Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：12months
- Certification：CE
- Type：CNC
- Function：Wire Bendinng
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Color：White
Base Info
- Transport Package：Wooden Crate
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Transport Package Wooden Crate Trademark WG Origin Guangdong, China (Mainland)Product Description
Product Description| Model | GT-WB-60-10A |
| Line Diameter | 2.0-6.0mm |
| Axis | 10 |
| Max Line Feeding Value | 10,000mm |
| Min Line Feeding Value | 0.01mm |
| Feeding Wheel Number | 3pairs |
| Turning Angle | unlimited |
| Platform Lifting Height | 50-170mm |
| Twisting Head Lifting Height | 20-100mm |
| Moving Range | Front: 100mm; Back: 300mm; Left: 80mm; Right: 40mm |
| Servo Motors Power | 20.5kw |
| Dimension(L*W*H) | 410*142*160cm3 |
| Weight | 3200kg |
Features
1. Flexible external twisting head with faster speed and more twisting angle.
2. Adopting Japanese Panasonic servo motor and Taiwanese controller.
3. Cable box can move back and forth, no need to retreat lines.
4. Running in a high automation and intellectualization, no pollution.
5. Apply 3-4 pairs feeding roller, and the feeding motor is fixed on the bottom base, so that wire rotating is faster and lighter, the turning angle is more precise and stable.
