Cutting & Fold-bend Machine

Home > Product > Bending Machine

3D Wire Rack Frame Forming Machine

Dongguan Xinsheng Hardware Machinery Co., Ltd.
  • Warranty：12months
  • Certification：CE
  • Type：CNC
  • Function：Wire Bendinng
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Color：White

Base Info

  • Transport Package：Neutral Wooden Crate
  • Trademark：WG
  • Origin：Guangdong, China (Mainland)

Description

Basic Info.

Transport Package Neutral Wooden Crate Trademark WG Origin Guangdong, China (Mainland)

Product Description

Product Description
ModelGT-WB-60-10A
Line Diameter2.0-6.0mm
Axis10
Max Line Feeding Value10,000mm
Min Line Feeding Value0.01mm
Feeding Wheel Number3pairs
Turning Angleunlimited
Platform Lifting Height50-170mm
Twisting Head Lifting Height20-100mm
Moving RangeFront: 100mm; Back: 300mm; Left: 80mm; Right: 40mm
Servo Motors Power20.5kw
Dimension(L*W*H)410*142*160cm3
Weight3200kg

Features

1. Flexible external twisting head with faster speed and more twisting angle.
2. Adopting Japanese Panasonic servo motor and Taiwanese controller.
3. Cable box can move back and forth, no need to retreat lines.
4. Running in a high automation and intellectualization, no pollution.
5. Apply 3-4 pairs feeding roller, and the feeding motor is fixed on the bottom base, so that wire rotating is faster and lighter, the turning angle is more precise and stable.

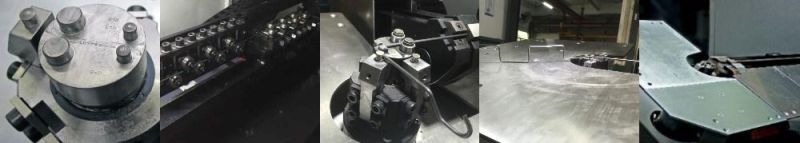

Detail images3D Wire Rack Frame Forming Machine3D Wire Rack Frame Forming Machine3D Wire Rack Frame Forming Machine3D Wire Rack Frame Forming Machine3D Wire Rack Frame Forming Machine3D Wire Rack Frame Forming MachinePacking & Delivery3D Wire Rack Frame Forming Machine3D Wire Rack Frame Forming MachineOur Service

1. Logo manufacturing welcome
2. Sample order
3. We will reply you for your inquiry in 24 hours
4. After sending, we will track the products for, until you get the products. If any question, contact us, we will offer the solve way for you.

Other Products3D Wire Rack Frame Forming Machine
