• Model NO.：FA1800D
• Type：Cnc Bending Machine
• Angle：35-179degree
• Maxworking Width：1800mm,2400mm,3000mm
• Max Working Length：Unlimited
• Max Bending Thickess：Below 15mm
• Transport Package：Plywood
• Specification：CE
• Trademark：FLYING
• Origin：China
• Production Capacity：50PCS,Month

Basic Info.

Model NO. FA1800D Type Cnc Bending Machine Angle 35-179degree Maxworking Width 1800mm/2400mm/3000mm Max Working Length Unlimited Max Bending Thickess Below 15mm Transport Package Plywood Specification CE Trademark FLYING Origin China Production Capacity 50PCS/Month

Product Description

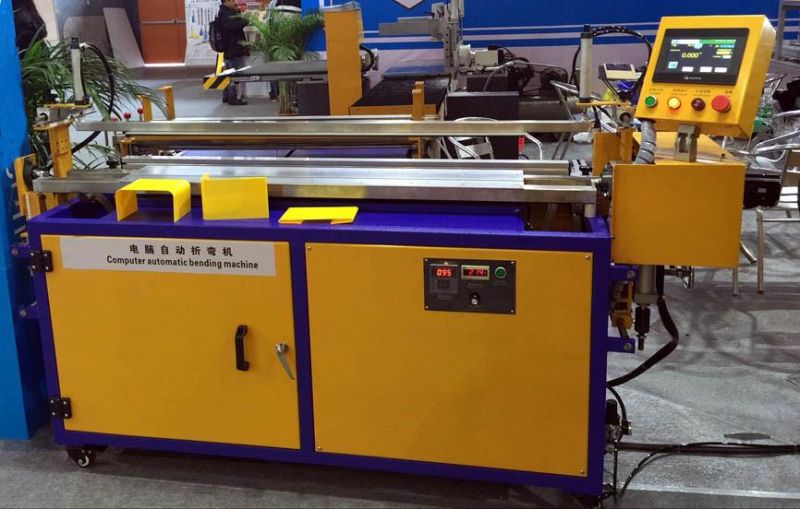

CNC bending machine for acrylic pvc sheet

Features:
    This Bending machine is widely used for bending the materials like acrylic, plastic, PC, PVC and PP. The machine bends the materials into different angles by heating up the materials with single or multi tube heaters. This machine is fast and precise. Working plateforms are cooled by water cooling system for the best result, highest efficiency and precise angle forming. The adjustable temperture works out for different materials correctly without over heating causing bubbles and undesirable curves. This is an ideal machine for the acrylic and plastic works.

Advantage:
1. Digital thermostat , simple, convenient and safe.
2. Manual funtion and automatic function.
3. Set soften time and angle according to acrylic sheet thickness and melting character, angle will be made automatically.
4. Set and adjust angle by hand, convenient and accurate, make sure uniform workpiece for mass production.
5. Adop infrared heating mode, high efficiency and long life.
6. Adjust the working voltage according to workpiece sheet thicknes, avoid burn or deficient heating.
7. Dural cooling system(water cooling and air cooling). The temperature-controller inset will alarm automatically when water temperature is too high so to insure the equipment safety
8. With electricity leakage protectioin function, ground wire connection, make user and machine more safely.
9. The bending machine helps you to easily and quickly produce different V-shaped profiles.
10. The bending machine allows to universally adjust internal sizes of the V-Shaped profiles up to maximum of 1200mm.(1800/2400/3000mm)
11. That allows to avoid time-consuming and cost-intensive adjustment of the bending machine.
12. Height adjustable device for bottom heater.
13. Aadjustable heating width.

Specification:
1. Power: 220V, 50Hz
2. Bending angles: 30' ~179'  Bending radian: R40mm
3. Thickness of materials: ≤ 20mm
4. Width: 1200mm /1800mm /2400mm /3000mm
5. Length: Unlimted
6. Applications: Angle and radian bending for acrylic sheet, organic sheet, PVC foam sheet, etc...
7. Process: Put the sheet into the intenerating slot, start the sheet pressing facility to fix it, when it rises to certain temperature, the system will give alarm automatically, then bend the sheets to certain angles or radians, when it's cooling, it's moulding.
Application:
Used to bend components of ACRYLIC, PVC, PMMA etc material, suitable for mass production of advertisement industry.
