CNC Wire Bending Machine Manufacturer with Multi Axes
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty:2 Years
- Condition:New
- Certification:CE
- Automation:Automatic
- Raw Material:Steel Bar
- Power:CNC
Base Info
- Function:Wire Bending & Forming
- Control System:CNC Control
- Extra Services:End Forming

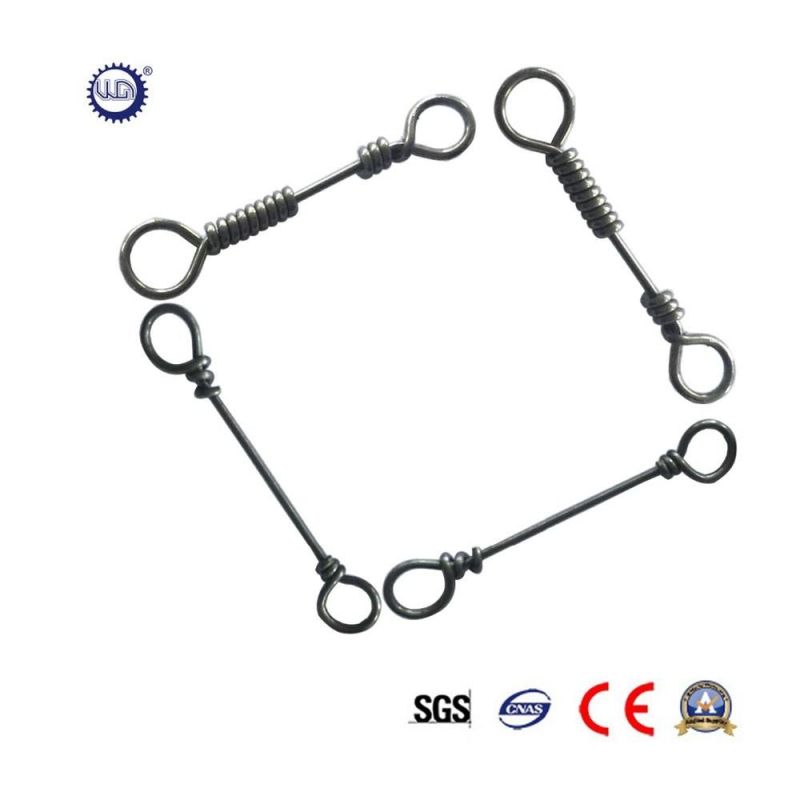

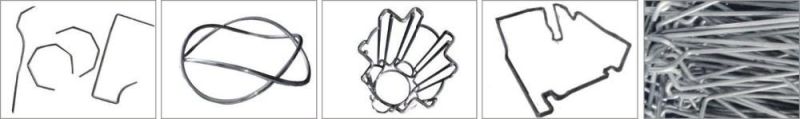

- Final Product:Wire Formings
- Year:2018
- Machine Type:Roller-Bending Machine
- Weight:7000kg
- Material / Metal Processed:Alloy
- Voltage:380V 50Hz 3phases
- Application:Multiple Industries
- After-Sales Service Provided:Field Maintenance and Repair Service
- Machine Name:Multi-Axis CNC Wire Bending Machine
- Transport Package:Standard Wooden Box
- Trademark:WG
- Origin:Guangdong, China (Mainland)
Description
Basic Info.
Function Wire Bending & Forming Control System CNC Control Extra Services End Forming Final Product Wire Formings Year 2018 Machine Type Roller-Bending Machine Weight 7000kg Material / Metal Processed Alloy Voltage 380V 50Hz 3phases Application Multiple Industries After-Sales Service Provided Field Maintenance and Repair Service Machine Name Multi-Axis CNC Wire Bending Machine Transport Package Standard Wooden Box Trademark WG Origin Guangdong, China (Mainland)Product Description
Technical ParameterModel | GT60-12R | |
Line Diameter | mm | 2.0-6.0 |
Max Line Feeding Value | mm | 10000 |
Min Line Feeding Value | mm | 0.01 |
Max Line Feeding Speed | m/min | 80 |
Max Line Length | mm | Unlimited |
Axis | 12 | |
Total Power of Servo Motors | kw | 39.8 |
Input Power | v/hz/ph | 380/50/3 |
Control system | Made in Taiwan | |
Program Storage | plus | 3000 |
Air Pressure | kg/cm2 | 5~6 |
Probe Number | 3 | |
Overall length | mm | 3500 |
Overall width | mm | 2150 |
Overall height | mm | 2150 |
Weight | kg | 7000 |
Specifications:

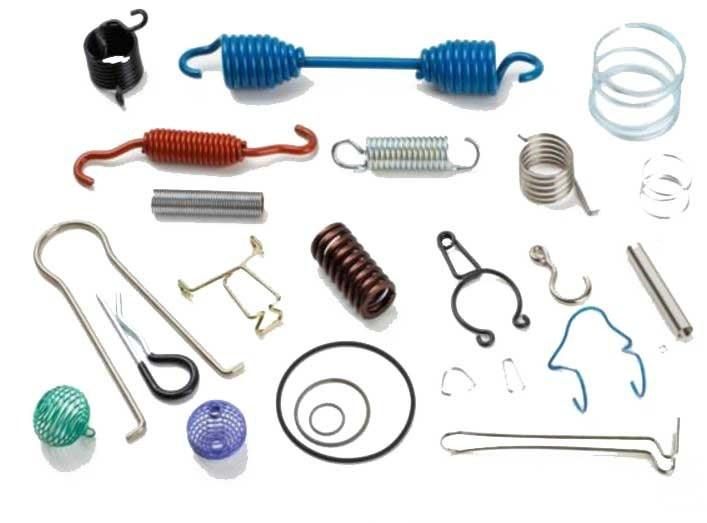

1) Suitable for producing normal and special spring in high precision and other wire forms
2) Adopting Japanese servo motor and Taiwanese controller system
3) No cam, adjust and work with great flexibility
4) Bilingual interface(English optional), easy to operate
5) Cutter tool stay in high precision and high stiffness
