• Model NO.：EA
• Power Source：Hydraulic
• Layout：Horizontal
• Transport Package：Wooden Case
• Trademark：watt
• Origin：China
• HS Code：846190900
• Production Capacity：500

       Model

Range
       0D(mm)

Wallthickness(mm)

Cut Motor

FeedMotor

CS

SS

E4A

Φ15-120

≤12mm

≤4mm

Metabo motor speed adjustable
       220~230V
       50~60Hz
       1.1KW

Servo motor speed adjustable
       220~230V
       50~60Hz
       0.75KW

E6A

Φ30-170

≤12mm

≤4mm

E9A

Φ60-225

≤12mm

≤4mm

E13A

Φ140-330

≤12mm

≤4mm

E16A

Φ215-420

≤12mm

≤4mm

E20A

Φ315-520

≤12mm

≤4mm

E24A

Φ346-630

≤12mm

≤4mm

E30A

Φ486-760

≤12mm

≤4mm

Product description:
Above parameters just for reference only, not acceptance criteria

POWER SUPPLIES

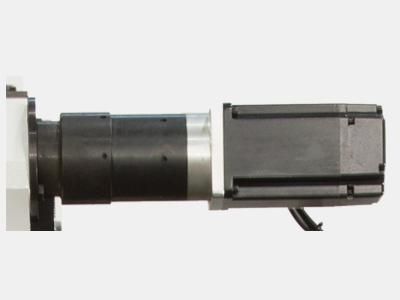

Feed motor:
Servo motor Electric
Requirements: 220-230V, 50-60Hz, 1P
Power:0.75KW Speed: adjustable by program

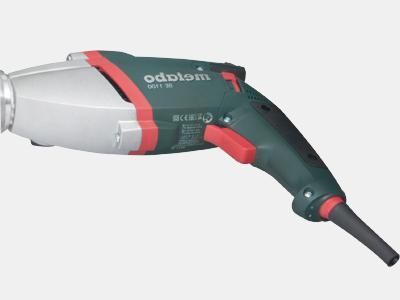

Saw blade drive motor:
Brand: Metabo Electric
Requirements: 220-230V, 50-60Hz, 1P
Power:1.3KW Speed: 6-speed adjustable

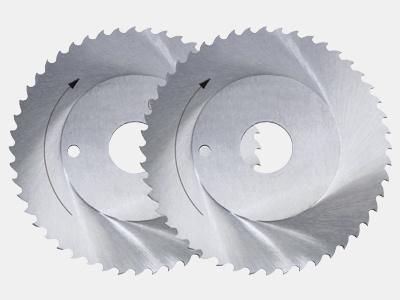

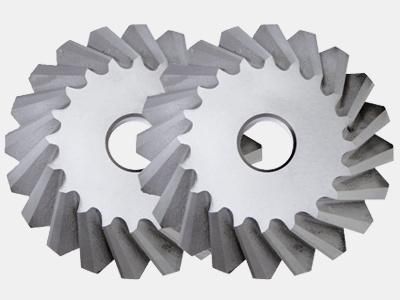

 TOOLING
  Material: M42
  Standard: 2 cutting blades
  Optional:beveling saw blade 30°, 37°, 45°



Standard: cutting blade

Optional: beveling saw blade

 Notes
 1.Tool selection
 Standard with rip saw and fine saw,Fits pipe of different wall thicknesses,General rip saw are more suitable for cutting thicker tubes,fine saw suitable for cutting thin-walled pipe.
 Inappropriate selection will result in blade heating. Reduce service life, or even bite-pipe phenomenon, deform the pipe
 2.Rotating speed
 Choosing the right cutterhead can improve the cutting performance and service life of the tool. Compared to the cutting stainless steel, the lower speed 80rpm is used, and the cutting carbon steel uses the higher speed 120rpm.
 3.Cutting rotation direction
 When the thin-walled tube 0.3-1mm, the tool rotates clockwise along the tube, which tends to cause deformation of the tube wall when the teeth engage the tube wall. The counterclockwise rotation of the tool (inverse planetary motion) can be avoided very well. This phenomenon
 4.Cutting oil
 The cutting machine can be processed without using any cutting oil, but the tool life will be greatly reduced.
Saw blade are consumables and their cost is high. In order to improve their cutting performance and service life, we recommend using cutting fluids during cutting. We choose non-toxic and harmless cutting oils, and use them to increase the tool life by 20-30%, if necessary before requisitioning
