E-Orbital Pipe Cutting Machine

Watt Machinery Technology Co., Ltd.
  • Waterproof Rating：IPX-8
  • Warranty：1-year
  • Certification：CE
  • Condition：New
  • Control：Automatic
  • Application：Metal

Base Info

  • Model NO.：E
  • Power Source：Electric
  • Layout：Horizontal
  • Transport Package：Wooden Case
  • Trademark：watt
  • Origin：China
  • HS Code：846190900
  • Production Capacity：500

Description

  Model

Range
   0D(mm)

Wallthickness(mm)

Motor

Feed

CS

SS

E4

Φ15-120

≤12mm

≤4mm


     Metabo,
    220-230V,
   50-60HZ,
   1Phase
   1.1KWManual

E6

Φ30-170

≤12mm

≤4mm

E9

Φ60-225

≤12mm

≤4mm

E13

Φ140-330

≤12mm

≤4mm

E16

Φ215-420

≤12mm

≤4mm

E20

Φ315-520

≤12mm

≤4mm

E24

Φ346-630

≤12mm

≤4mm

E30

Φ486-760

≤12mm

≤4mm

Machine body is optional: alloy steel or aluminium alloy.


POWER SUPPLIES

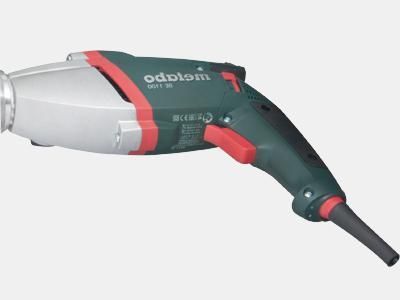

Sawblade drive motor:
Brand: Metabo
ElectricRequirements: 220-230V, 50-60Hz, 1P
Power:1.3KW
Speed: 6-speed adjustable

E-Orbital Pipe Cutting Machine

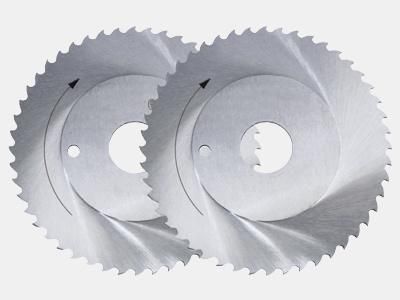

TOOLING
Material: M42
Standard:cuttingblades

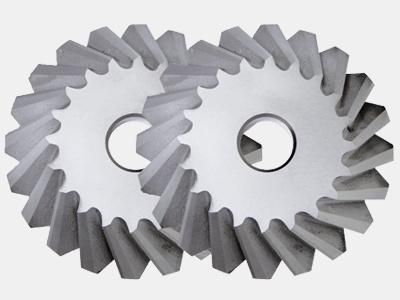

Optional:bevelingsaw blade 30°, 37°, 45°

E-Orbital Pipe Cutting Machine


E-Orbital Pipe Cutting Machine


Standard: cutting blade

Optional: bevelingsaw blade
