• Voltage：220V,380V,415V,440V
• Color：Blue
• Transport Package：Standard Fumigated Wooden Case
• Trademark：WG
• Origin：Guangdong, China (Mainland)

Basic Info.

Voltage 220V/380V/415V/440V Color Blue Transport Package Standard Fumigated Wooden Case Trademark WG Origin Guangdong, China (Mainland)

Product Description

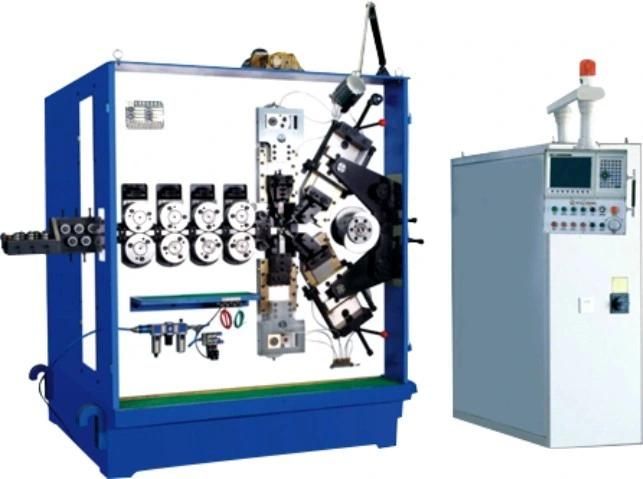

CNC Multi Shape Mechanical Wire Spring Forming Machine

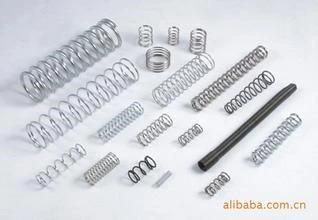

CNC spring coiling machine is to expertly produce kinds of compression springs fully automatically.

It is suitable for wire size from 3.0mm up to 8.0mm of steel wire .



Features:

1. using latest manufacturing technology, more stable .

2. using high resolution servo motor, twist angle is more accurate.

3. coiling can be extended to 6 axis, horizontal or vertical coiling is possible to produce complicated springs.

4. cutter is for vertical ,rotary or collide cutting style.

5. pitch is controlled by a single axis to move.



Technical Parameter:



1. Axis: 5

2. wire size range: 3.0- 8.0mm

3. feeding length: unlimited

4. maximum spring diameter: 110mm

5.output per minute: 0-50pcs

6.wire feeding servo: 22.0kw

7.cutter servo :5.5kw*2

8.pitch servo:2.9kw

9. powe AC: 380V/3P/50HZ

10. Dimension: 2170x1600x1870mm

11. Weight: 7000kg

Packaging & Shipping

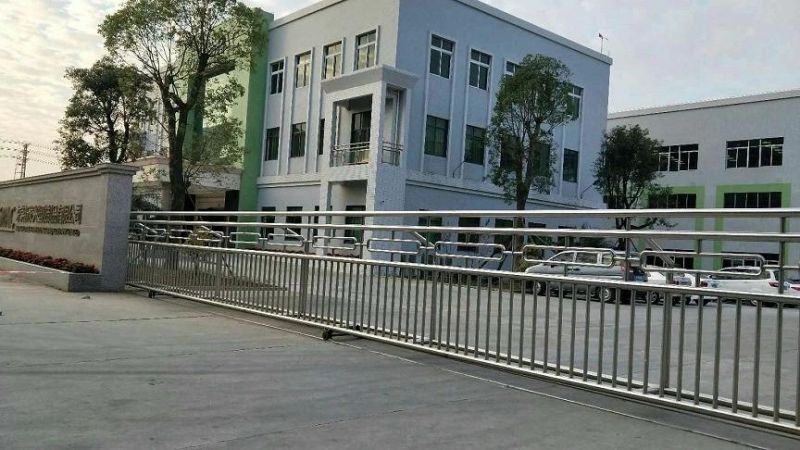

Company Information
