2 Axes Automatic CNC Meal Cone Compression Spring Coiling Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：1 Year
- Type：Automation
- Weight：500kg
- Application：Spring Manufacturering
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Wire Size：0.2-1.0mm
Base Info
- Axes：2
- Transport Package：Standard Fumugated Wooden Case
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Axes 2 Transport Package Standard Fumugated Wooden Case Trademark WG Origin Guangdong, China (Mainland)Product Description

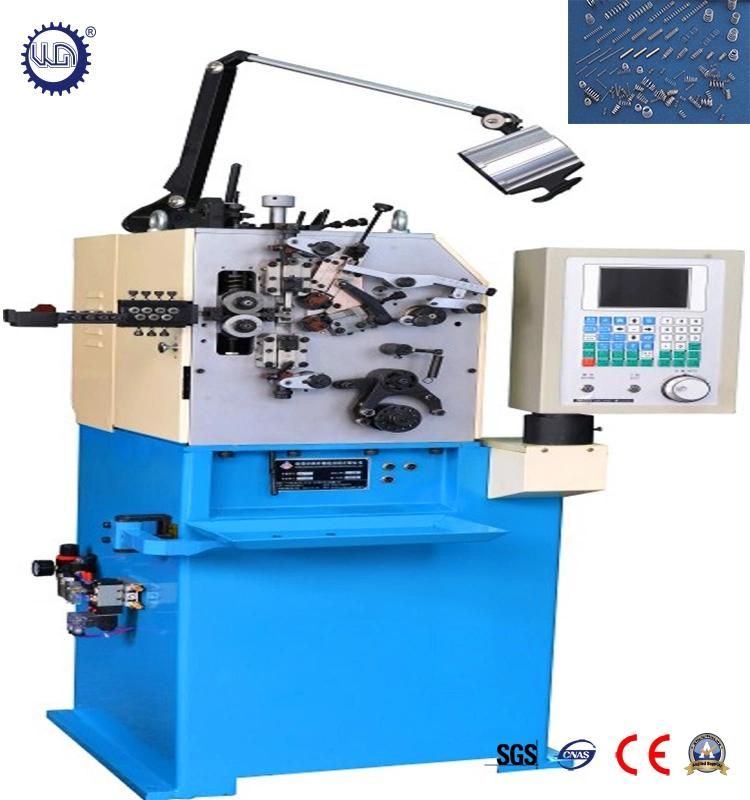

2 Axes Automatic CNC Meal Cone Compression Spring Coiling Machine
Product Description

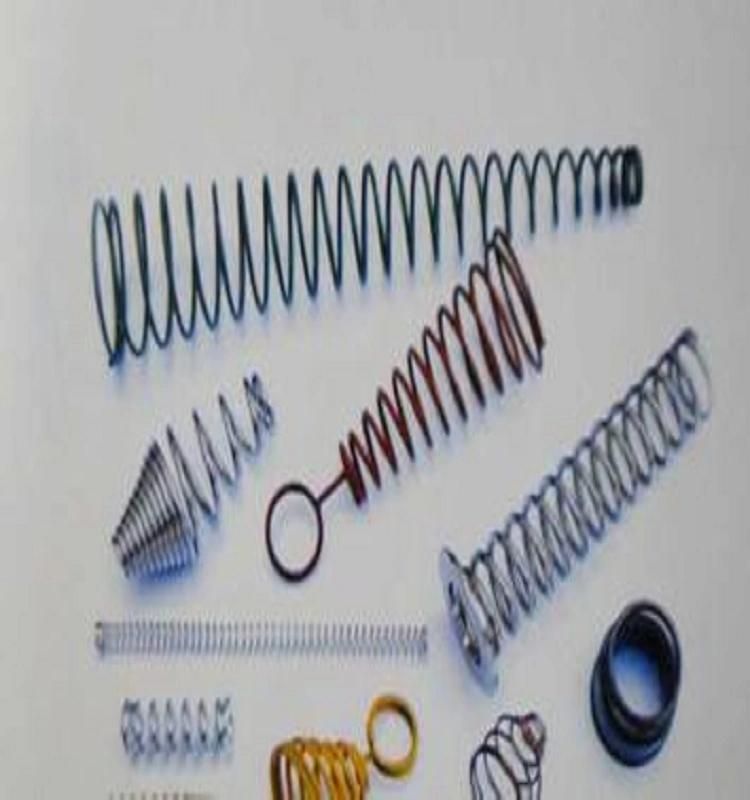

CNC spring coiling machine is to expertly produce kinds of coiling springs fully automatically.
It is suitable for wire size from 0.2mm up to 1.0mm. This machine is equipped with length detector.
Technical Parameter:
1. Axis: 2
2. wire size range: 0.2- 1.0mm
3. Max. outsider dia.: 30mm
4. feeding speed: 0-150M/Min
5. Max. feeding length: unlimited
6. production speed: 0-300 pcs/minute
7. cam setting value: +/-0.1-+/-359.9
8. wire feed motor: 1.5kw
9. cam motor: 1.5kw
10. powe AC: 380V/3P/50HZ
11. Dimension: 760x850x1400mm
12. Weight: 500kg
2 Axes Automatic CNC Meal Cone Compression Spring Coiling Machine
