• Model NO.：GM-76ncb
• Type：Pipe and Tube Bending Machine
• Application：Wheelbarrow, Wheelchair, Boiler, Automobile
• Extra Function：1d Bending, Cutting
• Bending Theory：Cold Bending
• Applicable Pipe Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Cooling System：Water Cooling,Fan Cooling
• Transport Package：Iron Frame
• Specification：GM-76NCB
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-76ncb Type Pipe and Tube Bending Machine Application Wheelbarrow, Wheelchair, Boiler, Automobile Extra Function 1d Bending, Cutting Bending Theory Cold Bending Applicable Pipe Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Cooling System Water Cooling/Fan Cooling Transport Package Iron Frame Specification GM-76NCB Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

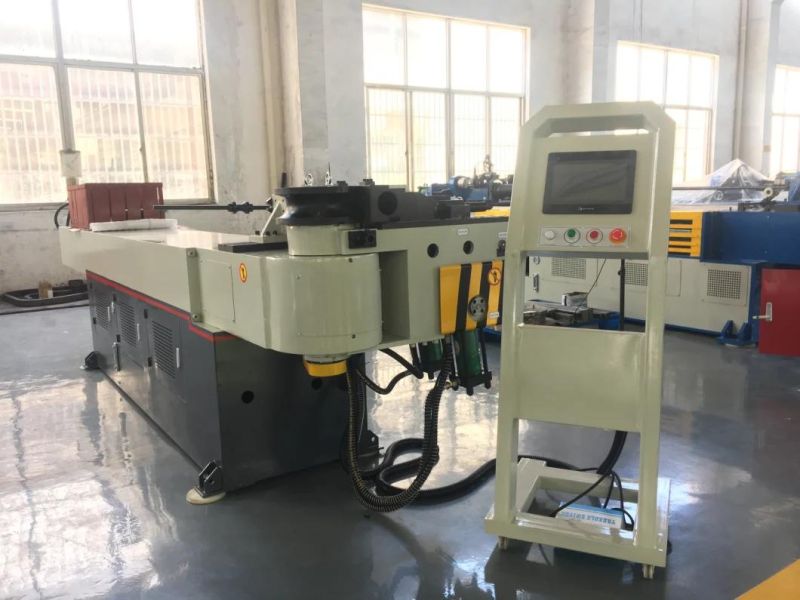

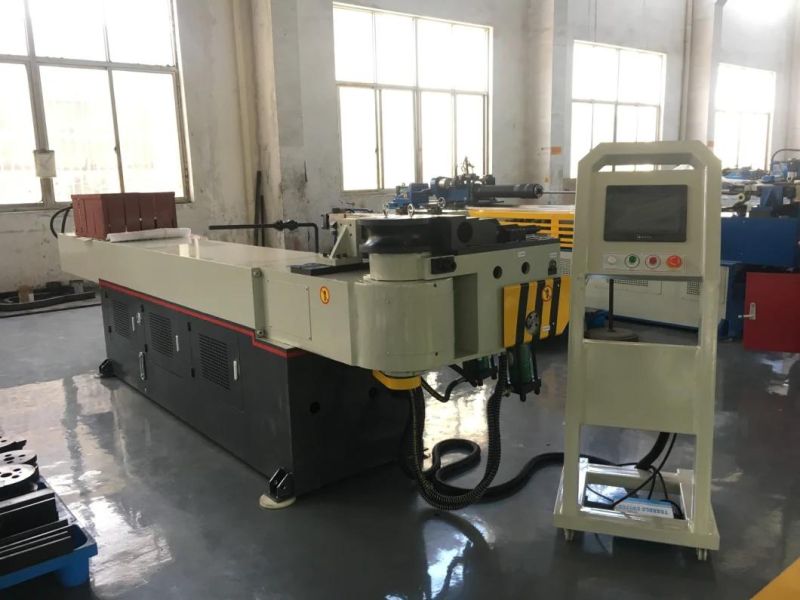

Technical Parameter and Configuration for Automatic Pipe Bending Machine     GM-SB-76NCB

• Machine Characteristic

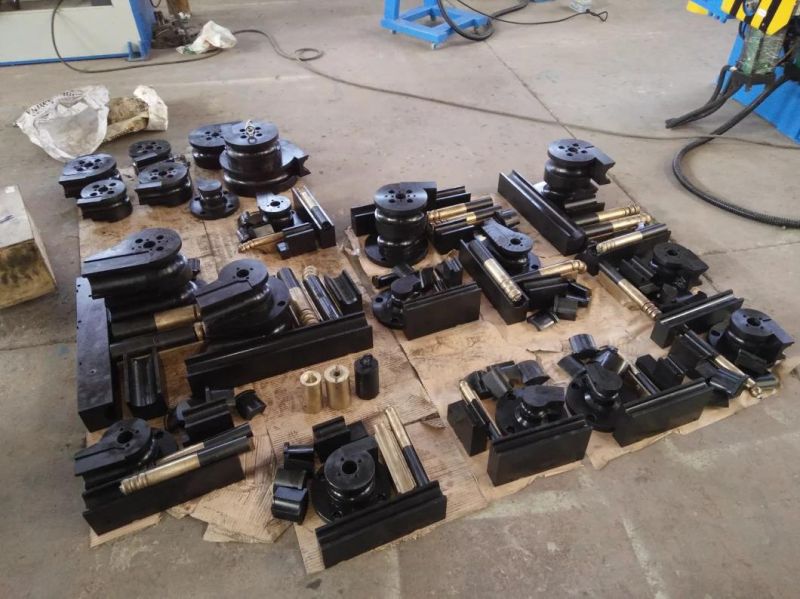

Full hydraulic drove, PLC controlled with touch screen or text pipe bending machine, equipped with devices of pipe clamping, guide mould, mandrel, crease-resistant, assist pushing, pipe bending and so on. Under hydraulic operation, this professional, high speed and economic European pipe bending machine can bend various dimension both normal and abnormal shape metal pipes and bending angles are controlled by high precision imported encoder which ensures high precision of this machine.


• Main Technical Parameter



Name	Unit	Parameter
Max. Bending Capacity	mm	¢76*5
Bending Radius Range	mm	30-350
Max. Bending Angle	°	190°
Though Effective Distance	mm	3800
Bending Speed	°/sec	30
Bending Precision	°	±0.10
System Motor Power	KW	7.5
Oil Pump Delivery Volume	L	23
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4800*1200*1350
Machine Weight	T	About 3.5



• Configuration of Hydraulic and Electronic Control System



Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide) or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	German SCHNEIDER
Transformer	Wuxi Xinyu

FAQ:

1. Q: Are you  manufacturer or trading company?
    A: we are manufacturer,established over 20 years. We are focusing on pipe/tube/solid bar bending machines.

2. Q:Where is the nearest airport to your company?
    A: Wuxi Airport or Shanghai Airport.

3. Q: How to choose the pipe/tube bending machines?
     A: You have to inform us following details:
         - Pipe Outdiameter Range
         - Wall thickness range
         - Bending Radius(Centerline radius)
         - The pipe material
         - how many bends on one piece of pipe
         - detailed drawing if possible

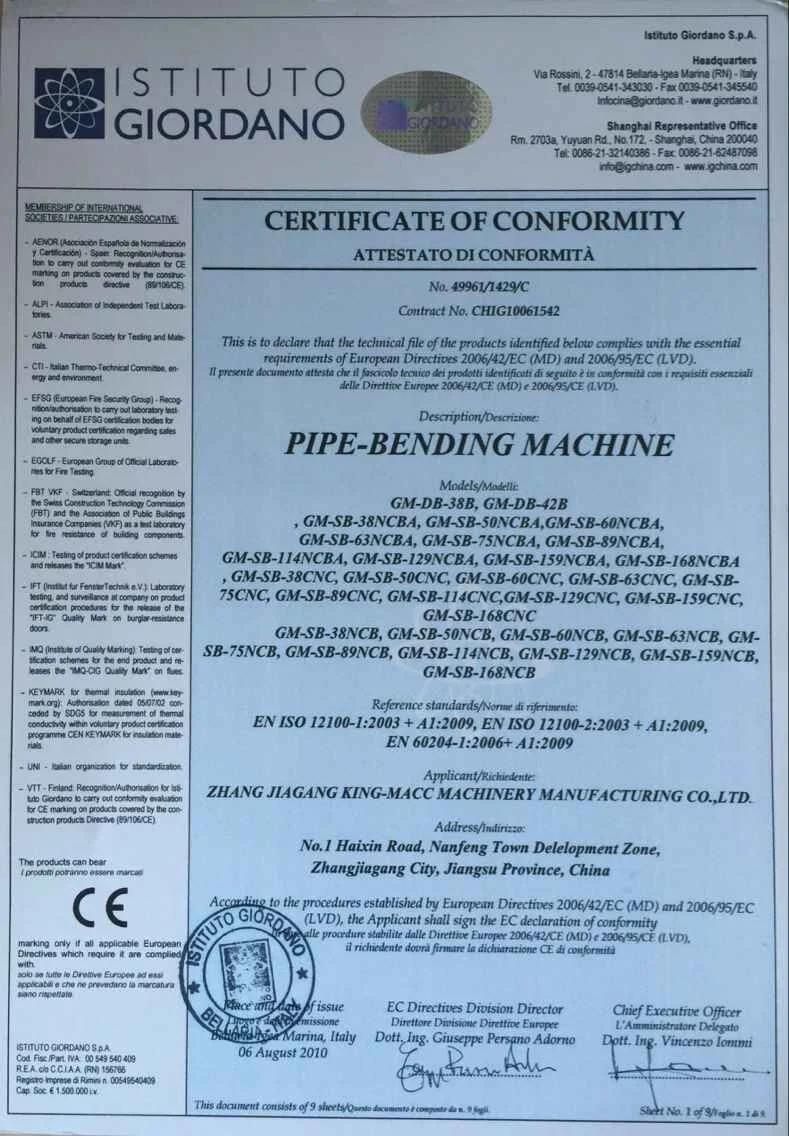

4. Q: What certificate do you have?
     A: We have both ISO and CE certificate.

5. Q:How about your service?
    A: Before Sales Serive:
         1. We will help our customer confirm the right machine model according to the offered pipe inforamtion.
        2. Welcome to visit our factory to see our machine and our workshop before you place an order.

     B: After Sales Service:
     1. We provide manual book,detailed machine installation,commissioning video to help you correctly operate machine.If you need our engineer to go to your factory for machine installation, air tickets,food,hotel,local transportation should be at your
account.
    2. If Any problems on machine,our engineer will solve for you through computer first,most problems can be solved by changing parts,if can't,our engineer can go to your factory to solve for you, we have experienced engineers for abroad market.
       For mechanical parts, which were made by ourselves,we have plenty in our stock,if you need,we can send to you by courier at once.
       For electronic parts, we all use famous brand, which you can buy it easily at your side.
