• Model NO.：QC12Y-8*4000
• Layout：Horizontal
• Raw Material：Steel Plate
• Shear Thickness：0.5 to 30mm
• Voltage：380V 50Hz 3phase
• Control Axis：2
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：CE&ISO9001: 2008
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84623990
• Production Capacity：100units,Month

Basic Info.

Model NO. QC12Y-8*4000 Layout Horizontal Raw Material Steel Plate Shear Thickness 0.5 to 30mm Voltage 380V 50Hz 3phase Control Axis 2 Transport Package Base Framed by Channel Steel and Plastic Bag Specification CE&ISO9001: 2008 Trademark ZDMT Origin China(Mainland) HS Code 84623990 Production Capacity 100units/Month

Product Description

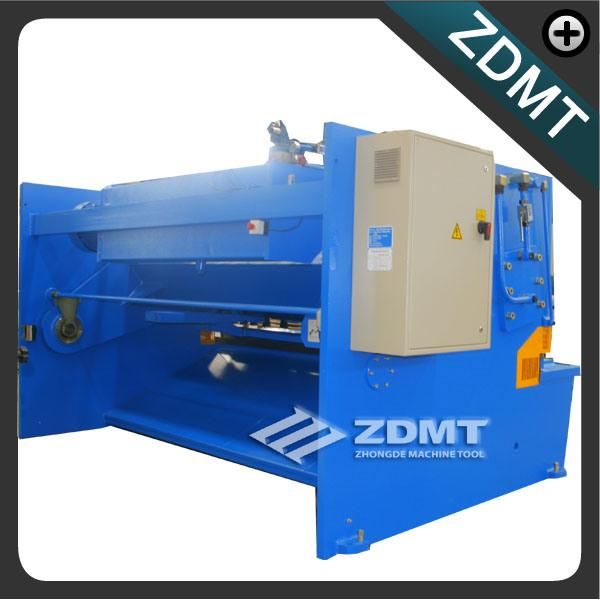

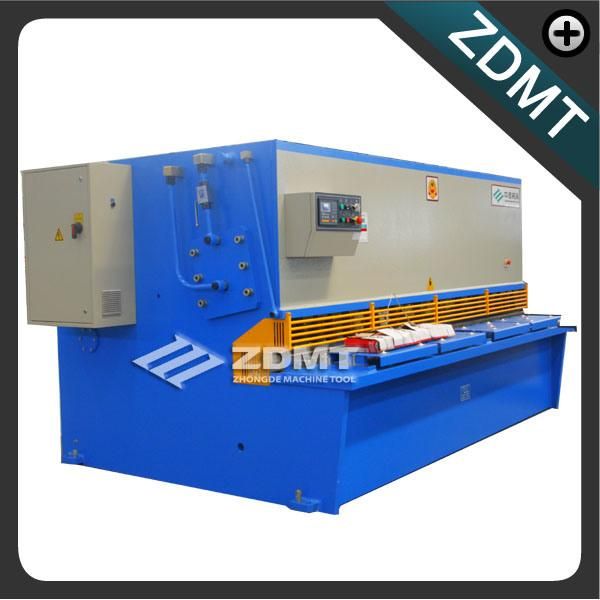

Shearing machine




CE certificate
ISO9001: 2008
Normal digital display and German Siko conuter, display the backgauge size and Shear time.
Hydraulic driven swing beam

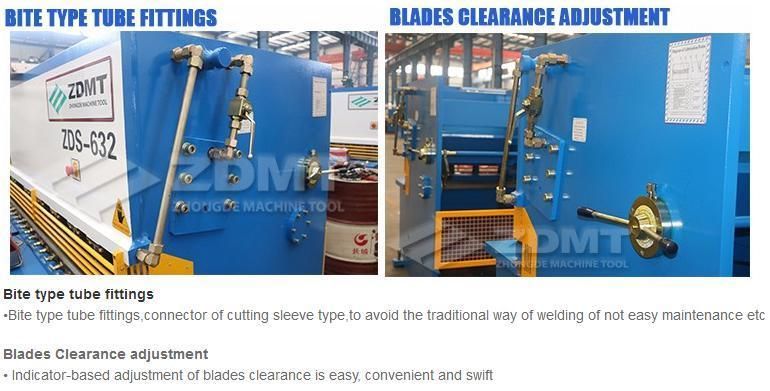

Handwheel for gap clearance ajustment
Estun E10, E200 and Delem DAC310/360 CNC system optional
Light curtain for safety

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

2. Stepless control for the stroke; The gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety.

3. The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of backgauge. Moreover, CNC system has the accessory functions of compensation and automatic check.
