• Model NO.：WC67K-125T,3200
• Power：Hydraulic
• Material / Metal Processed：Mild and Stainless Steel
• Extra Services：End Forming
• MOQ：1 Unit
• Voltage：380V 50Hz 3phase
• Control Axis：Backgauge and Stroke Position
• Color：Customised
• Main Motor：Siemens Brand From Germany
• Hydraulic System and Pump：Rexroth From Germany
• Max Bend Thickness：Mild Steel 3.5mm ,Stainless Steel 1.5mm
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China
• HS Code：84622990
• Production Capacity：100unit,Month

Basic Info.

Model NO. WC67K-125T/3200 Power Hydraulic Material / Metal Processed Mild and Stainless Steel Extra Services End Forming MOQ 1 Unit Voltage 380V 50Hz 3phase Control Axis Backgauge and Stroke Position Color Customised Main Motor Siemens Brand From Germany Hydraulic System and Pump Rexroth From Germany Max Bend Thickness Mild Steel 3.5mm ,Stainless Steel 1.5mm Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China HS Code 84622990 Production Capacity 100unit/Month

Product Description

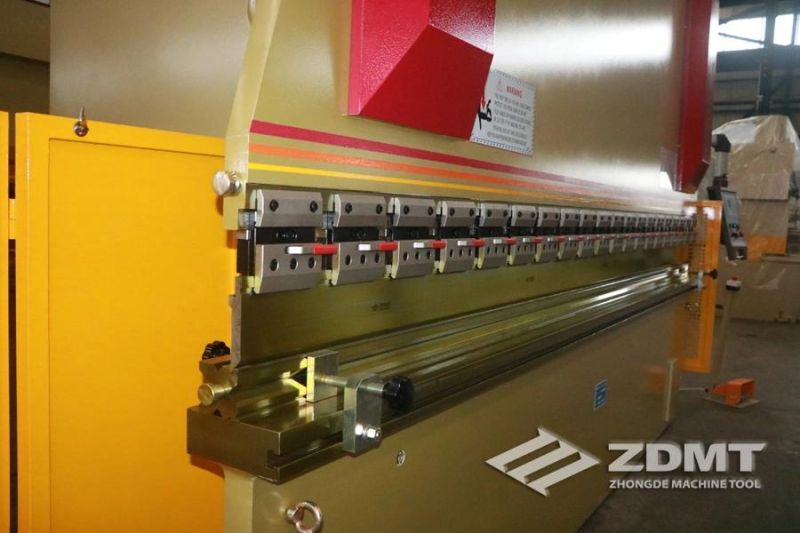

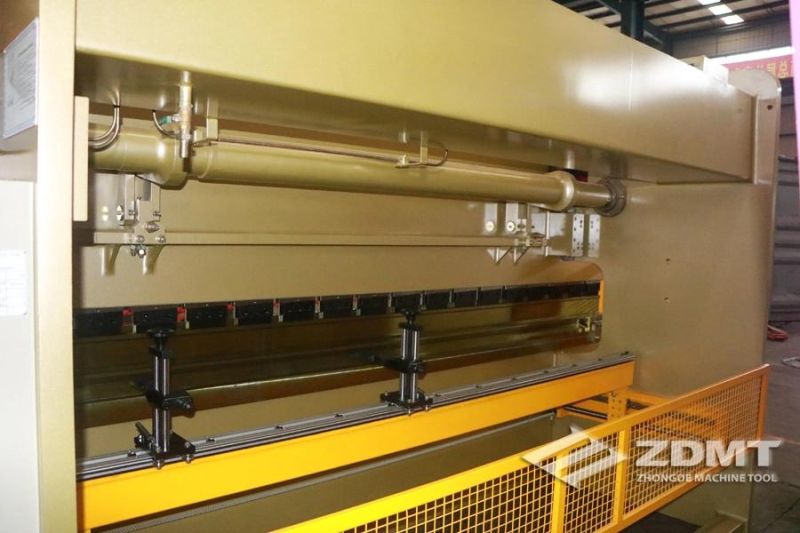

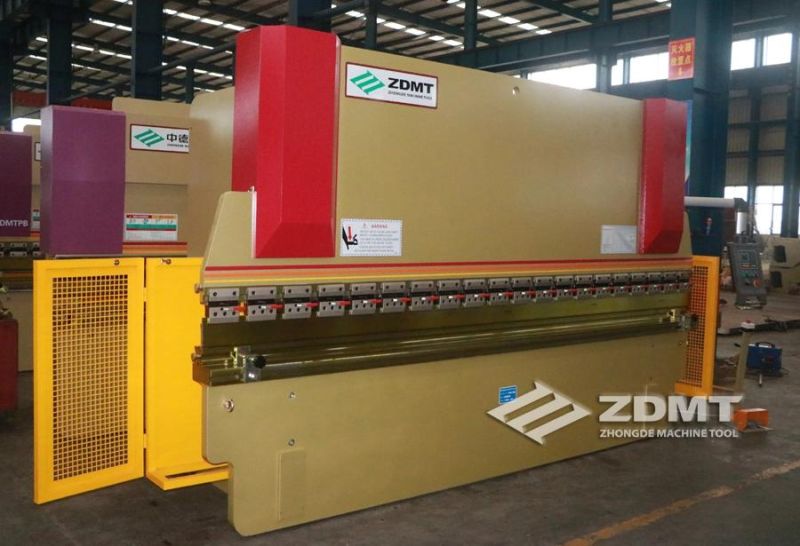

Hydraulic CNC press brake.
CE standard.
Fast clamping tool;
Manual crowing system;
Delem DA41, DA51 CNC optional.

Mechanical stop and torsion bar to maintain synchronization and high precision.
The machine uses Delem NC system, and imported linear transducer, pressure proportional valve and servo motor.
Ram stroke(Y) and backgauge(X, R, Z) are automatically controlled by computer.
Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy.
