Yz-750  Hydraulic Straight Machine Rail Straightener Rails Benders
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：5-year
- Condition：New
- Certification：ISO 9001:2000
- Automation：Semi-Automatic
- Suitable for：Aluminum, Carbon Steel, Stainless Steel
Base Info
- Model NO.：Rail Benders
- Type：Hydraulic Bending Machine
- Model：Yz-750
- Biggest Straight Rail Force：750 Kn
- Rated Straight Rail Force：600 Kn
- Hydraulic System Working Pressure：59 MPa
- Work Piston Diameter*Stroke：70*70
- Pump Plunger Diameter*Stroke：14*40
- No-Load Efficiency：1.6 mm,Time
- Keyword：Rail Bender
- Advantage 1：Saving Power
- Advantage 2：a Person Can Complete
- Advantage 3：Unloading Fast
- Straight Rail Quantity：>= 3 mm
- Overall Weight：89 Kg
- Outer Profile Size：830*720*350 mm
- Transport Package：Wooden Case or Carton Case
- Specification：CE, SGS
- Trademark：China Coal
- Origin：Jining City, Shandong Province
- HS Code：84798990
- Production Capacity：1000 Sets Per Month
Description
Basic Info.
Model NO. Rail Benders Type Hydraulic Bending Machine Model Yz-750 Biggest Straight Rail Force 750 Kn Rated Straight Rail Force 600 Kn Hydraulic System Working Pressure 59 MPa Work Piston Diameter*Stroke 70*70 Pump Plunger Diameter*Stroke 14*40 No-Load Efficiency 1.6 mm/Time Keyword Rail Bender Advantage 1 Saving Power Advantage 2 a Person Can Complete Advantage 3 Unloading Fast Straight Rail Quantity >= 3 mm Overall Weight 89 Kg Outer Profile Size 830*720*350 mm Transport Package Wooden Case or Carton Case Specification CE, SGS Trademark China Coal Origin Jining City, Shandong Province HS Code 84798990 Production Capacity 1000 Sets Per MonthProduct Description
YZ-750 Hydraulic Straight Machine Rail Straightener Rails Benders Introduction
YZ-750 Hydraulic Straight Machine Rail Straightener is a manual hydraulic special tool suitable for horizontally straightening or bending the rails on track.It's forged of special steel,and possesses features of reliable performance,compact structure,light weight and convenient assembly & disassembly.zmwm02YZ-750 Hydraulic Straight Machine Rail Straightener Rails Benders Parameter
| 1, the biggest straight rail force (piston driving force 230 kn) | 750 kn |
| 2, rated straight rail force (piston driving force 189 kn) | 600 kn |
| 3, hydraulic system working pressure | 59 mpa |
| 4, work piston diameter*stroke | 70*70 |
| 5, pump plunger diameter*stroke | 14*40 |
| 6, no-load efficiency | 1.6 mm/time |
| 7, straight rail quantity | >= 3 mm |
| 8, overall weight | 89 kg |
| 9, outer profile size | 830*720*350 |

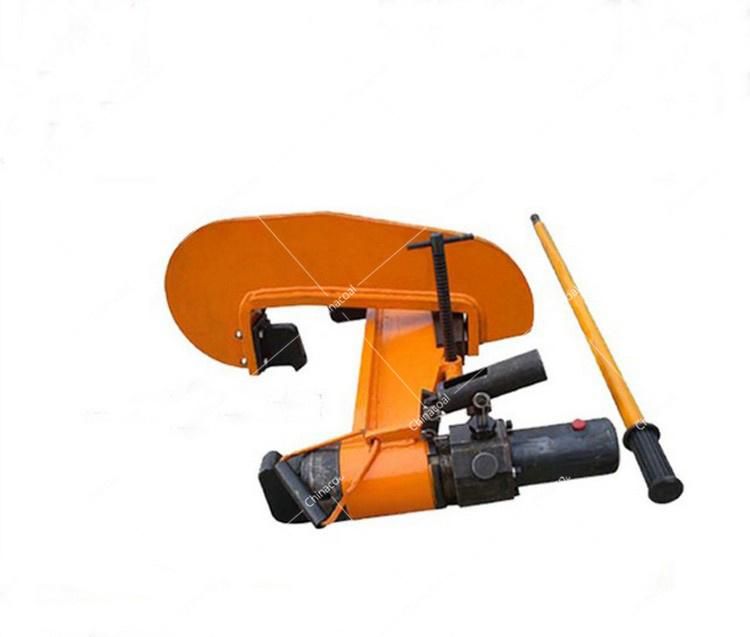

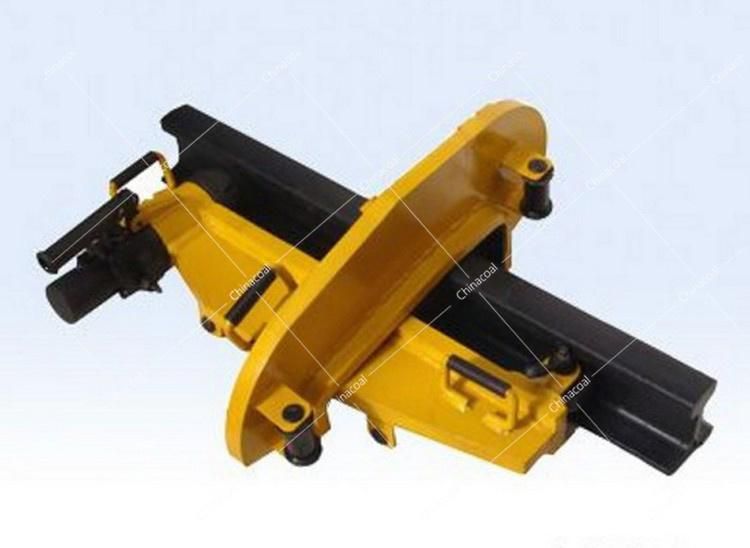

YZ-750 Hydraulic Straight Machine Rail Straightener Rails Benders Photos
