• Model NO.：Railbenders
• Type：Hydraulic Bending Machine
• Model：Rail Bender
• Specifications Model：Yw-20
• Use Range：18-24kg , M Rail
• Maximum Capacity of Rail Curved Track：294kn (30TF)
• Piston Stroke：100mm
• Curve Components Dimensions：60*260*100(mm)
• Keywords：Rail Bender
• Advantage 1：Saving Power
• Advantage 2：a Person Can Complete
• Advantage 3：Unloading Fast
• Transport Package：Wooden Case or Carton Case
• Specification：CE, SGS
• Trademark：China Coal
• Origin：Jining City, Shandong Province
• HS Code：84798990
• Production Capacity：1000 Sets Per Month

Basic Info.

Model NO. Railbenders Type Hydraulic Bending Machine Model Rail Bender Specifications Model Yw-20 Use Range 18-24kg / M Rail Maximum Capacity of Rail Curved Track 294kn (30TF) Piston Stroke 100mm Curve Components Dimensions 60*260*100(mm) Keywords Rail Bender Advantage 1 Saving Power Advantage 2 a Person Can Complete Advantage 3 Unloading Fast Transport Package Wooden Case or Carton Case Specification CE, SGS Trademark China Coal Origin Jining City, Shandong Province HS Code 84798990 Production Capacity 1000 Sets Per Month

Product Description

YW-20 Typpe Portable Vertical Hydraulic Railbenders Rail Benders Tool Introduction

YW-20 Portable Vertical Hydraulic Railbenders is used to on the rail under 24 gk/m and vertical curved track.
Advantages:saving power, a person can complete the curved or straight rail track action,zmwm02
unloading fast, you can quickly get a lot of bends.
Disadvantages: cylinder portion wearing high maintenance costs; only take relatively small curvature bend below 150 ° bend, you need several minutes to complete. Suited to take round bends and curved corners.
KWCY-300/600 Portable Vertical Hydraulic Railbenders is a railroad and a common railway maintenance equipment, you can get straight rails bend as needed, you can also get straight rails bend.

YW-20 Typpe Portable Vertical Hydraulic Railbenders Rail Benders Tool Parameter

Specifications Model	YW-20 type, YW-32 type,
Use range	18-24Kg / m rail, 38-50Kg / m
Maximum capacity of rail curved track	294KN (30tf), 549KN (56tf)
Piston stroke	100mm, 170mm
Curve components Dimensions	60*260*100(mm),70*270*183(mm)

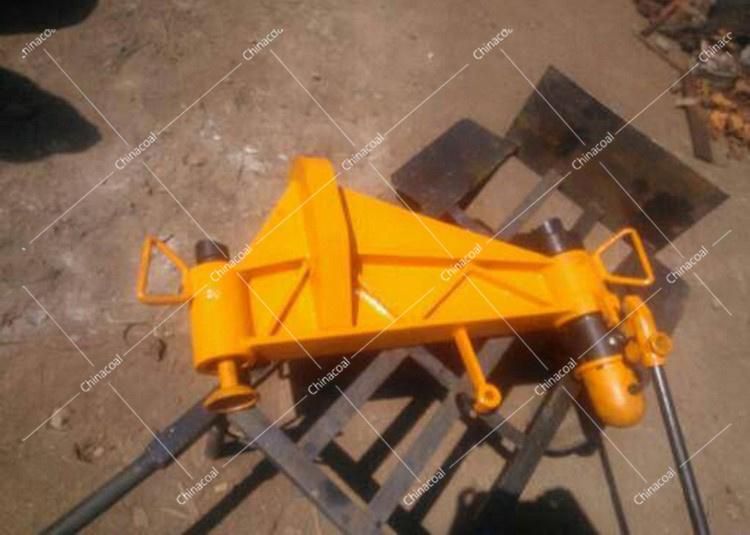

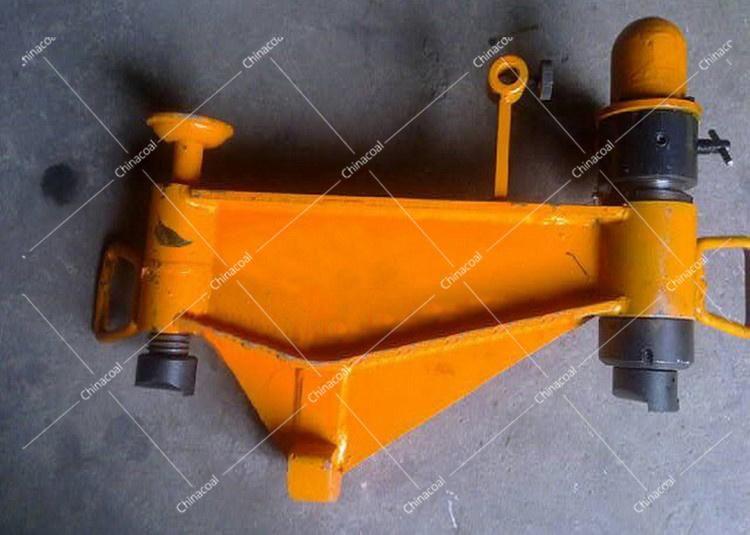

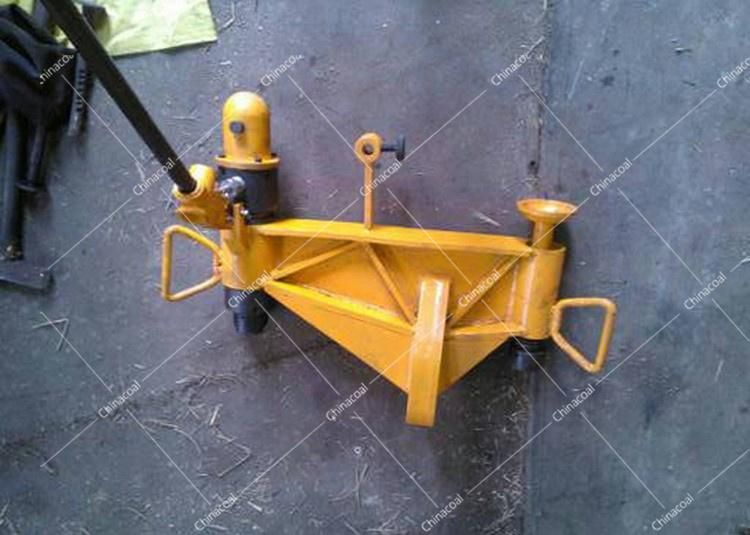

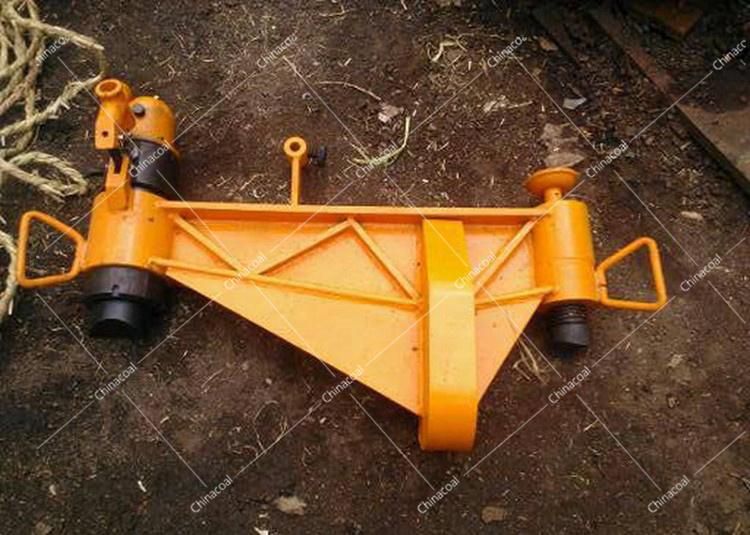

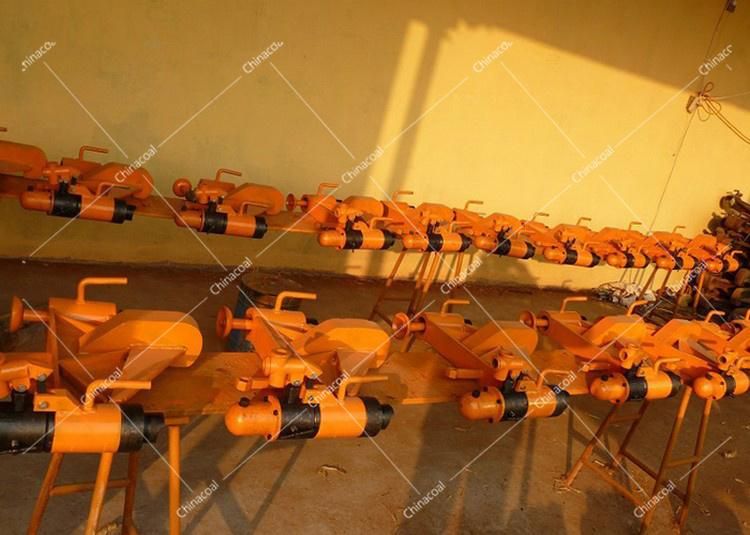

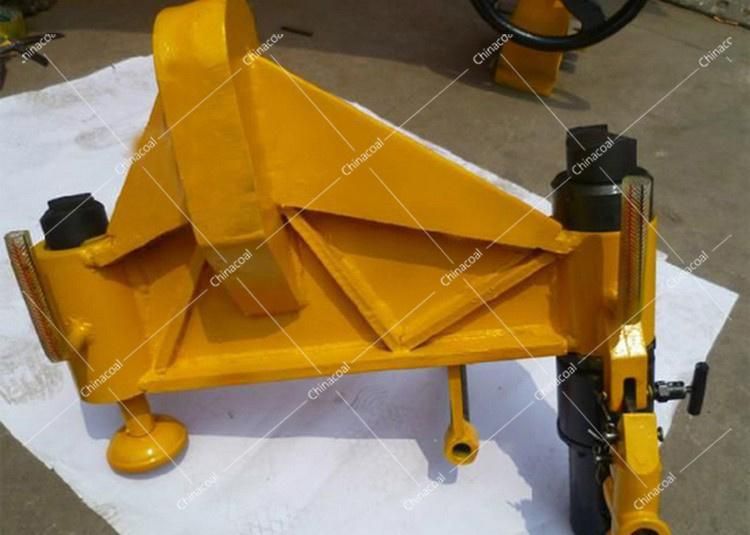

YW-20 Typpe Portable Vertical Hydraulic Railbenders Rail Benders Tool Photos
