Left and Right Tube Bending Machine All Electric Pipe Bender
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-6
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：CNC30-AE
- Type：Pipe and Tube Bending Machine
- Electric Axis：11 Axis Servo
- CNC System：Mitsubishi
- Bend Direction：Left and Right Bending
- Transport Package：Polywood Case
- Specification：LWH: 4800x1250x1500mm, GW: 2200kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. CNC30-AE Type Pipe and Tube Bending Machine Electric Axis 11 Axis Servo CNC System Mitsubishi Bend Direction Left and Right Bending Transport Package Polywood Case Specification LWH: 4800x1250x1500mm, GW: 2200kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description
1. Bend-arm (C-axis) by AC servomotor.2. Clamp die by AC servomotor; pressure die by AC servomotor.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by pneumatic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by AC servomotor, left-right by AC servomotor. Head rotation by AC servomotor.
8. Automatic moving parts lubrication.
9. Mandrel by AC servomotor.

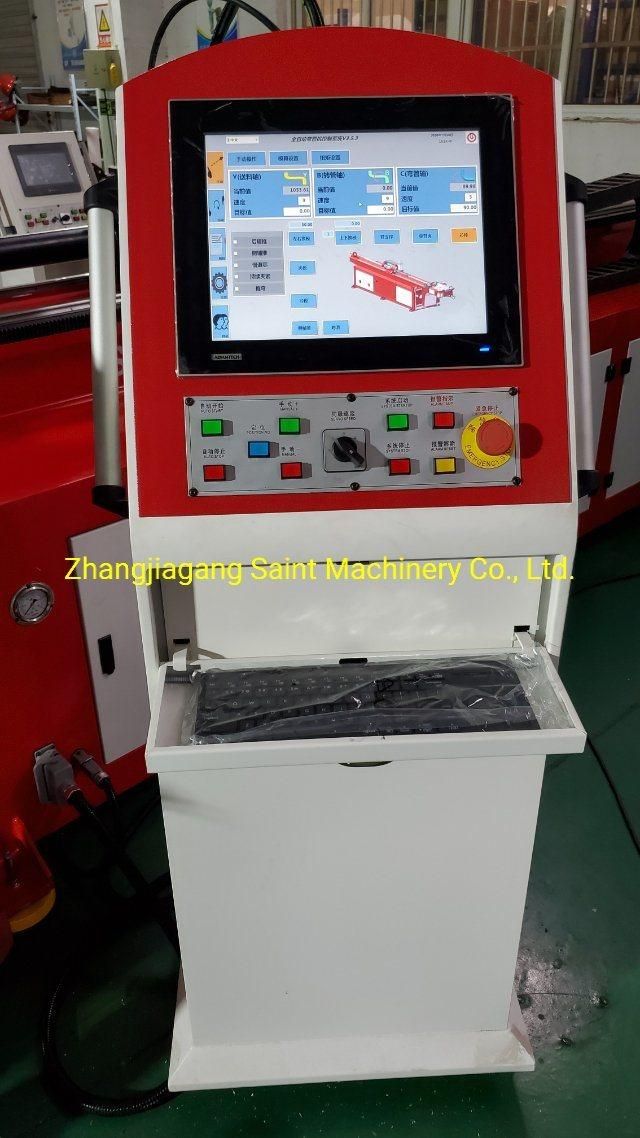

10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
12. 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.
| Model | CNC30-AE |
|---|---|
| Bending capability OD×WT (carbon steel) | Φ30×1.8mm |
| Bending radius (by tools) | 15~100 mm |
| Bending angle | 0~195° |
| Max bending length with mandrel | 2200mm |
| Bending speed | 180°/sec |
| Bending accuracy | ±0.1° |
| Feeding speed | 30~1000 mm/sec |
| Feeding accuracy | ±0.1 mm |
| Rotating speed | 320°/sec |
| Rotating accuracy | ±0.1° |
| Tools stack | 6 |
| Bending | Electric Servomotor |
| Feeding/Booster | Electric Servomotor |
| Rotating | Electric Servomotor |
| Tool shifting | Up and down (Electric Servomotor) Left and right (Electric Servomotor) Rotation (Electric Servomotor) |
| Clamping (Main clamp & Pressure die clamp) | Electric Servomotor x2 |
| PDA | Electric Servomotor x2 |
| Mandrel | Electric Servomotor |
| System pressure | 0.8Mpa |
| Size | 4800×1250×1500mm |
| Weight | 2200 kg |
