• Model NO.：STC-400CNC
• Power Source：Hydraulic
• Layout：Vertical
• Cutting：Hydraulic
• Saw Blade：HSS
• Bundle Cutting：Yes
• Cooling：Fan Cooling, Water Cooling
• Transport Package：Plywood Case
• Specification：LWH: 2000× 1150× 1950mm, GW: 1500kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STC-400CNC Power Source Hydraulic Layout Vertical Cutting Hydraulic Saw Blade HSS Bundle Cutting Yes Cooling Fan Cooling, Water Cooling Transport Package Plywood Case Specification LWH: 2000× 1150× 1950mm, GW: 1500kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

Product Description

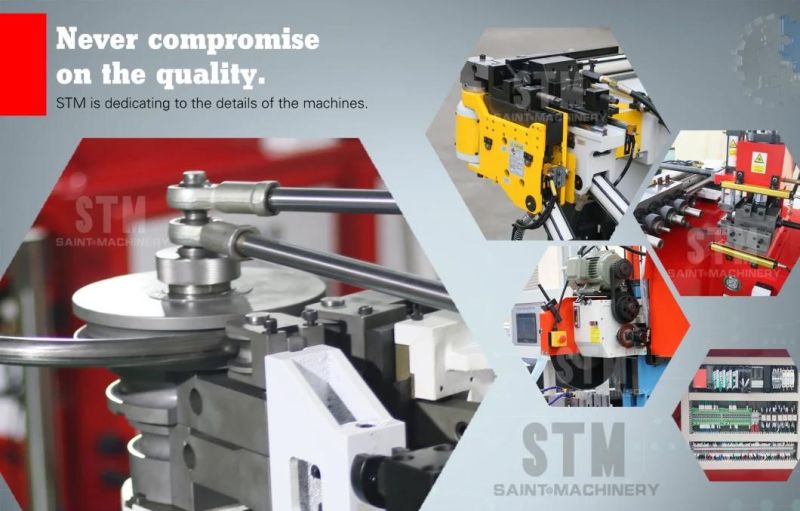

The NC series tube benders (Pipe bending) equipped with NC control unit. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions.
1.Reasonable design and simple style, provides the best space for bending.
2.Numerical control, convenient operation make the settings flexible.
3.Using the encoder ensures the bending angle accurate and stable.
4.Multiple processing models stored for different processing programs switched flexibly
5.Automatically Counting and power failure memory function
6.Hydraulic cooling system ensures the equipment long-time work stably under the high temperature
7.The main shaft is specially heat treated.
8.All parts are tested and assembled with strict quality control to meet the specification of ISO 9001 standard.
9.The machine adopting solenoid valve and integrated circuit to control individual bending motion separately, which can be extend the life of the hydraulic parts.
10.Suitable for various materials such as steel, stainless, aluminum and copper.

Parameters	STB-89NC
Bending capability	φ89×6mm
Bending radius	80~450mm
Min bending radius	R≥1.5D
Bending angle	0~190°
Valid mandrel bar	0~4000mm
Bending speed	11°/sec
Bending accuracy	±0.1°
Main motor power	11Kw
System hydraulic pressure	14MPa
Size	4800×1450×1350mm
Weight	About 3060kg
