• Model NO.：QC12K-4,2500
• Specification：CE STANDARD
• Trademark：ZYMT
• Origin：China
• HS Code：8462399000
• Production Capacity：3000sets,Year

Basic Info.

Model NO. QC12K-4/2500 Specification CE STANDARD Trademark ZYMT Origin China HS Code 8462399000 Production Capacity 3000sets/Year

Product Description

Sheet Metal Hydraulic Shearing Machine:

Features:

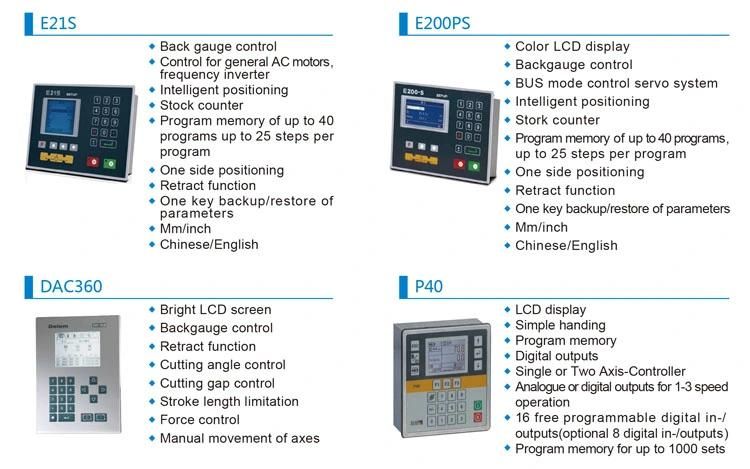

1.The machine is fitted with CNC controller special for shearing machines.
2.The position of rear stopper is displayed in real-time manner.
3.Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
4.It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
5.Back gauge with precision ball screw and liner guide, to ensure the positioning precision, so that bring the higher precision processing.

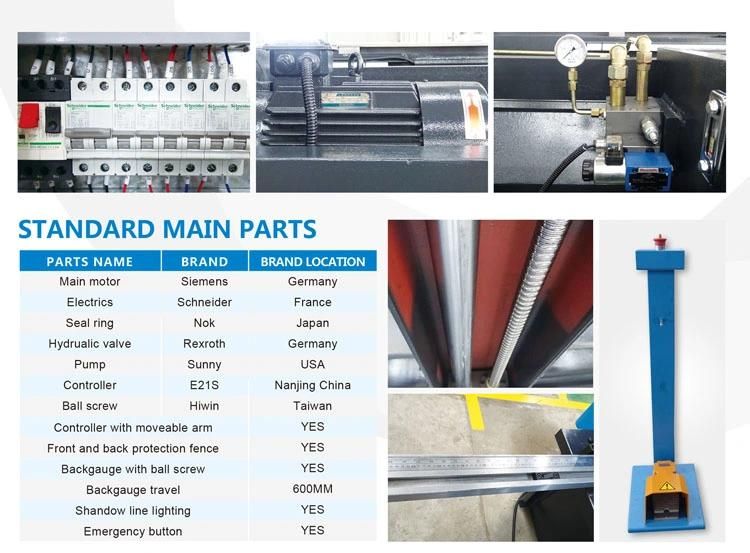

Main parts list and basic technicals:



Other standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book

Parameters:

Type	Cutting Thickness(mm)	Cutting Length(mm)	Cutting Angle(°)	Materail Strength(KN/CM)	Stroke(times/min)	Power(kw)	Weight(kg)	Dimension(mm)
4× 2500	4	2500	1.5	≤450	10	5.5	3800	3040*1610*1620

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.
We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
