Automatic Straightening Machines with Metal Slitting and Cutting Device (FCS3.0-1300)
Xiamen Xinhonghua Machinery Co., Ltd.- Automation：Automatic
- Certification：SGS
- Condition：New
- Warranty：1 Year
- Model No.：Fsc3.0-1300
- Dimension：2500mm*2300mm*1500mm
Base Info
- Model NO.：FCS3.0-1300
- Voltage：380V,50Hz,3pH
- Working Spbrand Name：Xhh
- Weight：3500kgs
- Model Number：Zp3.0-1300
- Hydraulic Power：7.5kw
- Working Speed：10-16m,Min
- Max.Thickness：1.0-3.0
- Max.Width：1300mm,1500mm
- Transport Package：Standard Package for Export
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：8455229090
- Production Capacity：10-15sets,Month
Description
Basic Info.
Model NO. FCS3.0-1300 Voltage 380V/50Hz/3pH Working Spbrand Name Xhh Weight 3500kgs Model Number Zp3.0-1300 Hydraulic Power 7.5kw Working Speed 10-16m/Min Max.Thickness 1.0-3.0 Max.Width 1300mm,1500mm Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 8455229090 Production Capacity 10-15sets/MonthProduct Description
FCS3.0-1300 Straightening Machine's detail informations' are as follows:
(1)Working Speed: 10-16m/min
(2)Max. Thickness: 3.0mm
(3)Max. Width: 1300mm 1500mm

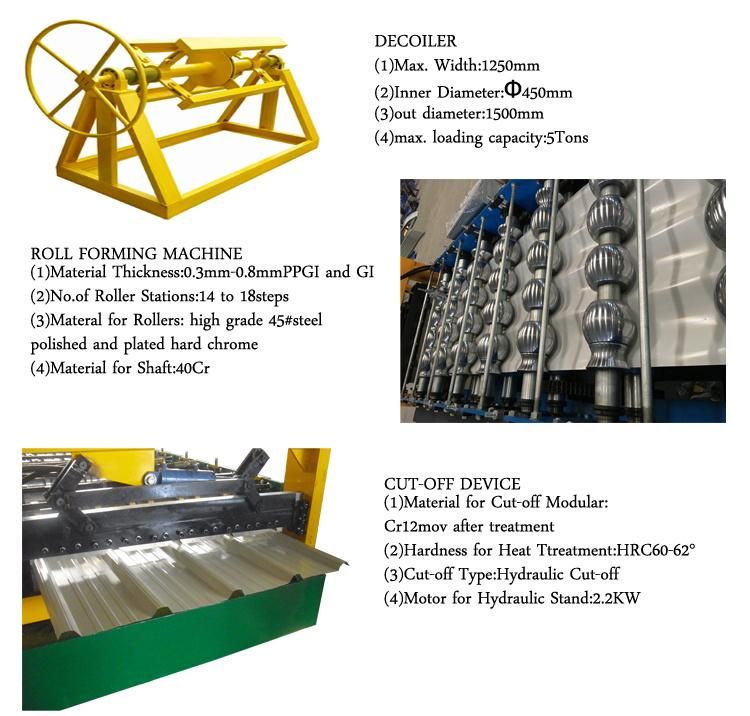

Main Accessories:
(1)Flattening Device;
(2)Slitting Device;
(3)Cutting Device;
(4)Hydraulic Motor Device;
1. | Dimension | 2300*2200*1500mm |
| 2. | Weight | 3500KGS |
| 3. | Hydraulic Motor Power | 7.5KW |
| 4. | Voltage | 380V/50HZ/3PH |
| 5. | Working Speed | 10-16m/min |
| 6. | Max. Thickness | 1.0-3.0mm |
| 7. | Max. Width | 1300mm, 1500mm |
