Cutting & Fold-bend Machine

Hydraulic Pendulum Shearing Cutting Machine

Anhui ZhongDe Machine Tool Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Automation:Semi-Automatic
  • Suitable for:Aluminum, Carbon Steel, Stainless Steel
  • Voltage:380V 50Hz 3phase
  • Color:Customised

Base Info

  • Model NO.:QC12Y-12×3200
  • Control Axis:2
  • Power Type:Hydraulic
  • Transport Package:Channel Steel and Plastic Bag
  • Specification:CE, ISO9001; 2008
  • Trademark:ZDMT
  • Origin:China
  • HS Code:84622990
  • Production Capacity:100units,Month

Description

Basic Info.

Model NO. QC12Y-12×3200 Control Axis 2 Power Type Hydraulic Transport Package Channel Steel and Plastic Bag Specification CE, ISO9001; 2008 Trademark ZDMT Origin China HS Code 84622990 Production Capacity 100units/Month

Product Description

Hydraulic Pendulum Shearing Cutting MachineHydraulic Pendulum Shearing Cutting Machine

Hydraulic Pendulum Shearing Cutting Machine
Hydraulic Pendulum Shearing Cutting Machine
Hydraulic Pendulum Shearing Cutting Machine
Hydraulic Pendulum Shearing Cutting Machine

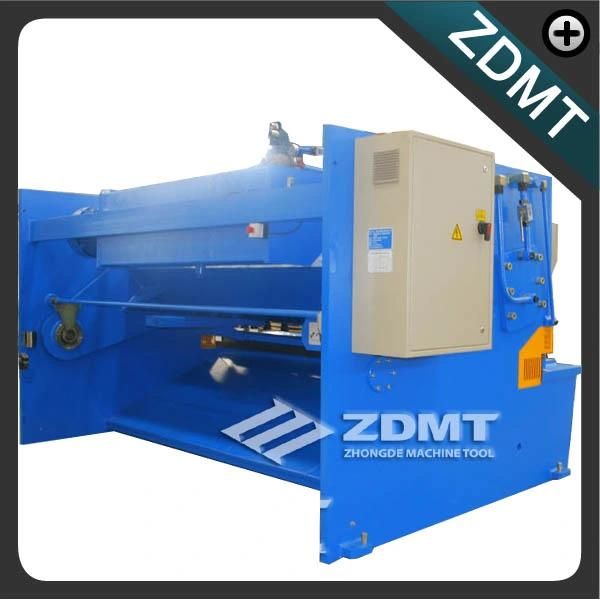

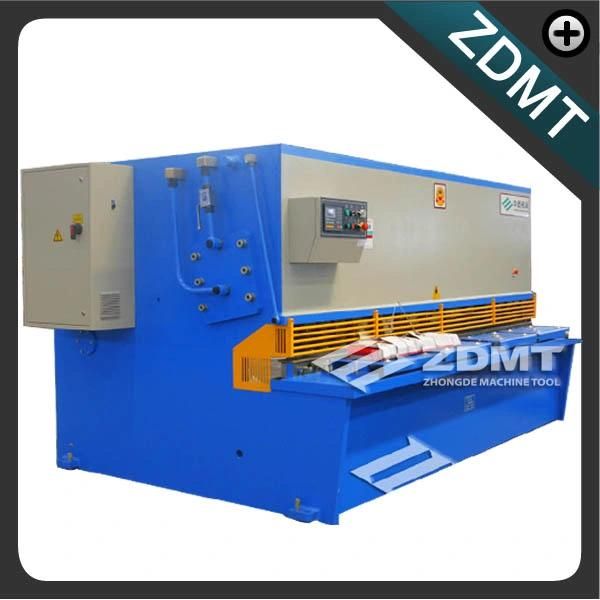

QC12Y hydraulic shearing machine
ISO9001: 2008 & CE certificate
Electric component: CHINT/ Siemens
Germany SIKO digital display for backgauge
Imported gasket ring

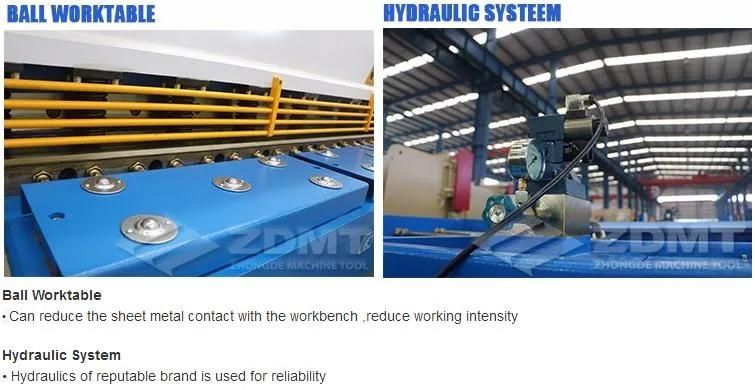

Advanced integrated hydraulic system

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

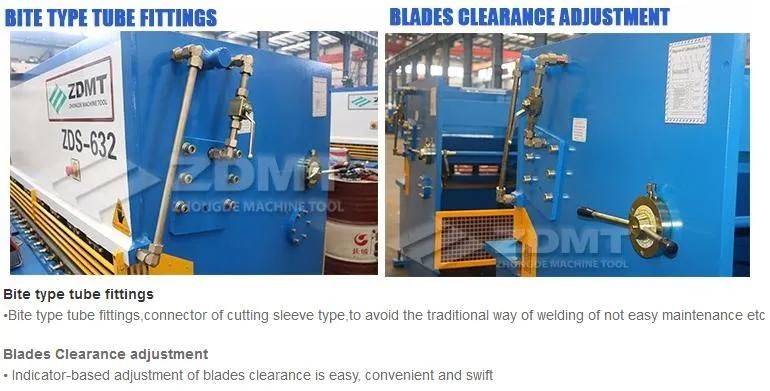

2. Indicator-based adjustment of gap of blade is convenient and fast.

3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.

4. The machine uses protection fence for safe operation.

5. Digital display device for size of back gauge and shearing times available.
