• Model NO.：WC67Y-200,4000
• Type：Press Brake
• Control System：E21 Digital Readout From Estun
• Application：Machinery & Hardware
• Type for Fold-bending Machine：CNC Fold-bend Machine
• Rated pressure：2000KN
• Working table length：4000mm
• Transport Package：Steel Pallet
• Specification：CE Standard
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：50units,Month

Basic Info.

Model NO. WC67Y-200/4000 Type Press Brake Control System E21 Digital Readout From Estun Application Machinery & Hardware Type for Fold-bending Machine CNC Fold-bend Machine Rated pressure 2000KN Working table length 4000mm Transport Package Steel Pallet Specification CE Standard Trademark HAVEN Origin China HS Code 8459 Production Capacity 50units/Month

Product Description

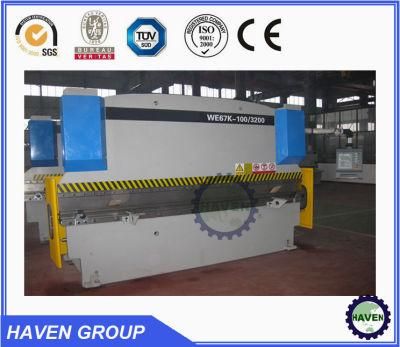

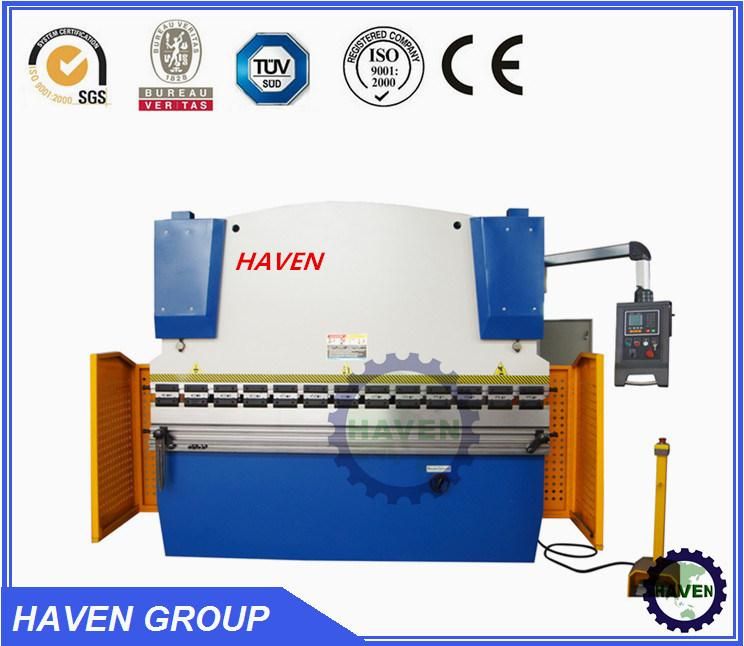

HAVEN brand Hydraulic press brake WC67Y

Hydraulic press brake main function and completed:
Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity;
Hydraulic top-drive, steadiness and reliability
Mechanical stop, steel torsion bar to maintain synchronization, high precision;
Motorized-adjusting device of back-gauge and ram's stroke, fine adjusting by hand wheel, numerical display;
Deflection compensation unit installed on the top die, manual crowed bottom die holder is adopted for the machine above 250tons;
Travel limit protection.
Remote pedal control device
Full machine guarding with safety interlocker.
Duplex linked press brake is available as per client's demand.
Electric components are from SIEMENS
Oil-seal rings are imported from Japan
NC control system are imported from DELEM, Netherland ( NC control system is at extra cost )

Main specification:

Model	Nominal Pressure (KN)	Length of table(mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	weight (t)
40/2000	400	2000	1600	200	110	335	4	2545x1510x2050	3
40/2500	400	2500	2000	200	110	335	4	2950x1510x2080	3.5
63/2000	630	2000	1600	250	110	350	5.5	2555x1600x2130	3.8
63/2500	630	2500	2000	250	110	350	5.5	2960x1600x2180	4.2
63/3200	630	3200	2600	250	110	350	5.5	3740x1600x2230	5.2
100/2500	1000	2500	2000	350	150	400	7.5	2980x1650x2330	6.3
100/3200	1000	3200	2600	350	150	400	7.5	3740x1650x2355	7
100/4000	1000	4000	3200	350	150	400	7.5	4550x1650x2450	8.8
100/5000	1000	5000	4000	350	150	400	7.5	5100x1500x2650	11.8
125/2500	1250	2500	2000	350	150	410	7.5	3980x1650x2370	7.5
125/3200	1250	3200	2600	350	150	410	7.5	3750x1650x2450	8.2
125/4000	1250	4000	3200	350	150	410	7.5	4550x1650x2470	9
125/5000	1250	5000	4000	350	150	410	7.5	5100x1500x2795	11.5
