• Model NO.：WC67Y-125,4000
• Rated pressure：1250KN
• Working table length：4000mm
• Transport Package：Steel Pallet
• Specification：WC67Y-125,4000
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：50units,Month

Basic Info.

Model NO. WC67Y-125/4000 Rated pressure 1250KN Working table length 4000mm Transport Package Steel Pallet Specification WC67Y-125/4000 Trademark HAVEN Origin China HS Code 8459 Production Capacity 50units/Month

Product Description

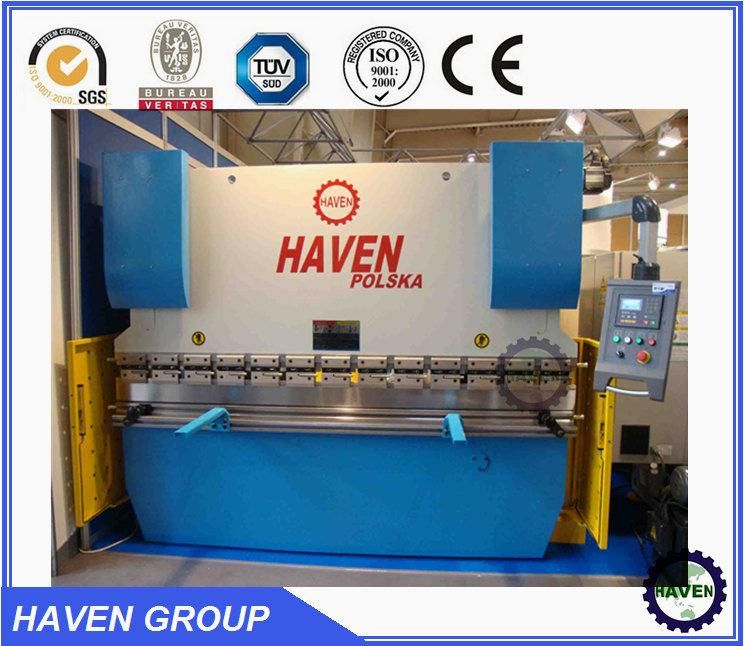

                                                WC67Y Series Hydraulic Plate Bending Machine




Main specification:

Model	Nominal Pressure (KN)	Length of table(mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Height (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	weight (t)
40/2000	400	2000	1600	200	110	335	4	2545x1510x2050	3
40/2500	400	2500	2000	200	110	335	4	2950x1510x2080	3.5
63/2000	630	2000	1600	250	110	350	5.5	2555x1600x2130	3.8
63/2500	630	2500	2000	250	110	350	5.5	2960x1600x2180	4.2
63/3200	630	3200	2600	250	110	350	5.5	3740x1600x2230	5.2
100/2500	1000	2500	2000	350	150	400	7.5	2980x1650x2330	6.3
100/3200	1000	3200	2600	350	150	400	7.5	3740x1650x2355	7
100/4000	1000	4000	3200	350	150	400	7.5	4550x1650x2450	8.8
100/5000	1000	5000	4000	350	150	400	7.5	5100x1500x2650	11.8
125/2500	1250	2500	2000	350	150	410	7.5	3980x1650x2370	7.5
125/3200	1250	3200	2600	350	150	410	7.5	3750x1650x2450	8.2
125/4000	1250	4000	3200	350	150	410	7.5	4550x1650x2470	9
125/5000	1250	5000	4000	350	150	410	7.5	5100x1500x2795	11.5
