• Model NO.：according to clients′ requirments
• Type for Cutting Machine：Hydraulic Cutting Machine
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Type for Pipe and Tube Bending Machine：Digital Pipe Bender
• Transport Package：Machine in 40′′gp,Other Accessories in Wooden Case
• Specification：CE
• Trademark：STW
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

Basic Info.

Model NO. according to clients′ requirments Type for Cutting Machine Hydraulic Cutting Machine Type for Fold-Bending Machine CNC Fold-Bend Machine Type for Pipe and Tube Bending Machine Digital Pipe Bender Transport Package Machine in 40′′gp,Other Accessories in Wooden Case Specification CE Trademark STW Origin China HS Code 84552210 Production Capacity 10sets/Month

Product Description

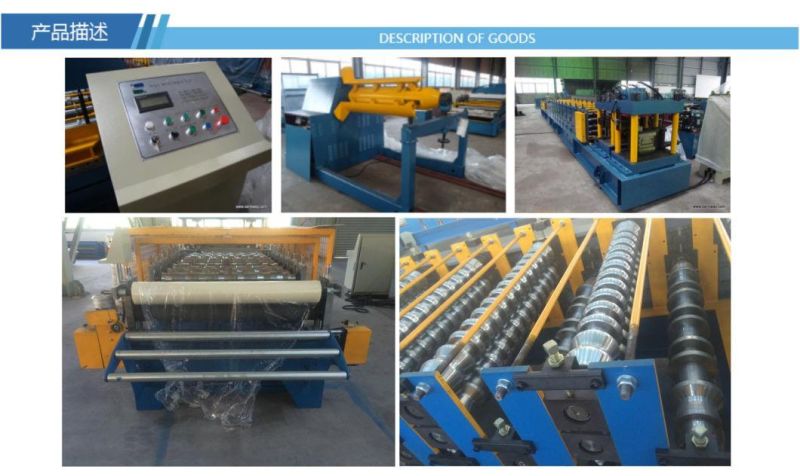

Machine's Components:	Uncoiler, coil sheet guiding device, film covered device(optional), main roll forming system, cutting device, hydraulic, PLC control table and final product run out table.
Specification:	-Suitable raw material: color steel sheet; galvanized steel sheet; -Suitable thickness of raw material: 0.3-0.8mm; -Main motor power: 5.5kw(depend on finaldesign); -Hydraulic station power: 2.2kw(depend on final design); -Forming speed: about 15m-20m/min -Uncoiler's loading capacity: 5tons(can be increased to 10 tons or at buyer's  requirement); -Control system: Mitsubishi PLC&converter; -Voltage:380V, 3phase, 60HZ, or at buyer's requirement; Machine's dimension: about 8m-1.5m*1.4m(depend on final design);

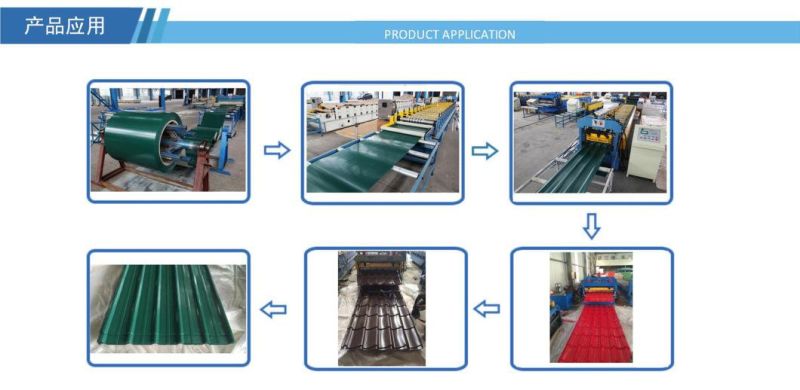

Working flow:	Uncoiling the steel coil→ feeding and guiding the steel sheet→ film covering→ main roll forming→ cutting the panel→fianl product run out the table
