• Model NO.：GT25-10
• Type：Cnc Bending Machine
• Transport Package：Standand Export Wooden Box
• Specification：1200x1250x1760mm
• Trademark：WG
• Origin：China
• HS Code：8463300000
• Production Capacity：100 Set Per Year

Basic Info.

Model NO. GT25-10 Type Cnc Bending Machine Transport Package Standand Export Wooden Box Specification 1200x1250x1760mm Trademark WG Origin China HS Code 8463300000 Production Capacity 100 Set Per Year

Product Description

Model	GT25-10
Wire Dia.(mm)	0.2-2.5
Min./Max.wire feeding value(mm)	0.01/10000
Max.wire feeding speed(m/min.)	120
Max.wire feeding	umlimited
Axis number	10
Total output power of servo motors	10.0KW
Input power supply	380v/50hz/3ph
Contral system	Made in Taiwan
Program storage	3000
Compressor air presure	5-6
Probe number	3

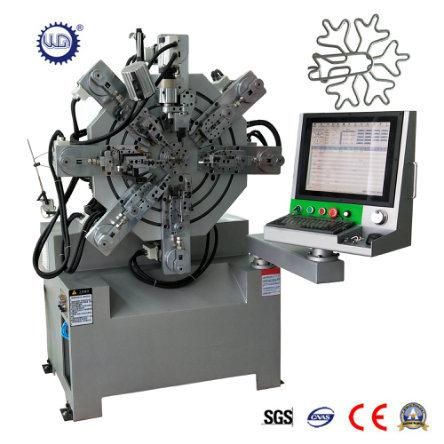

 Detailed ImagesThis machine is designed to have no cam and without swing arm, which shorten the installation time and labour cost. less skill will be enough for tough task. keeping the advantage of traditional forming machine. excellent servo motors and reducers ensures excellent movement and precision of forming.
