• Model NO.：WC67Y-100,4000
• CNC Type：Tander Prss
• Application：Machinery & Hardware
• Type for Fold-bending Machine：CNC Fold-bend Machine
• Rated pressure：1000KN
• Working table length：4000mm
• Transport Package：Steel Pallet
• Specification：Total 160t, 3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：30 Units,Month

Basic Info.

Model NO. WC67Y-100/4000 CNC Type Tander Prss Application Machinery & Hardware Type for Fold-bending Machine CNC Fold-bend Machine Rated pressure 1000KN Working table length 4000mm Transport Package Steel Pallet Specification Total 160t, 3200mm Trademark HAVEN Origin China HS Code 8462 Production Capacity 30 Units/Month

Product Description

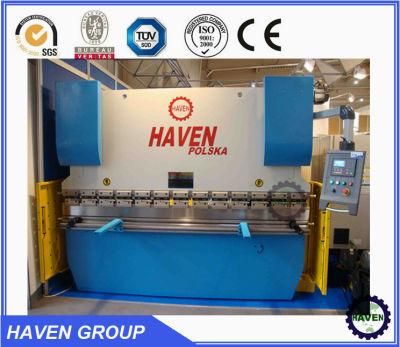

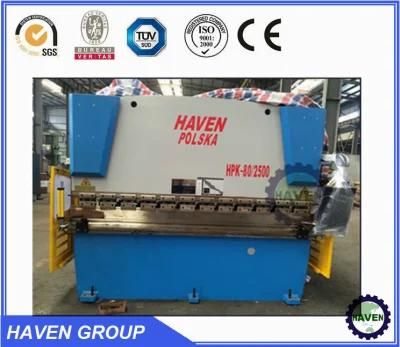

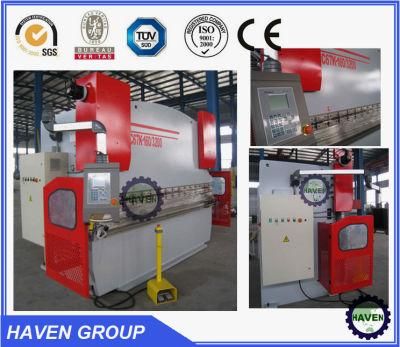

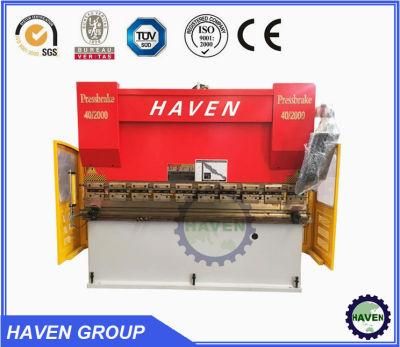

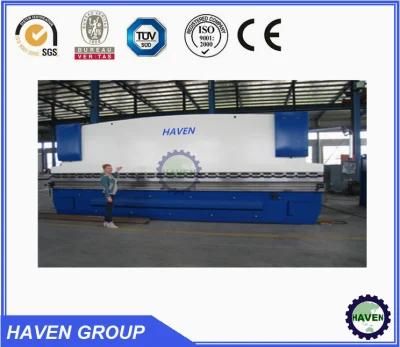

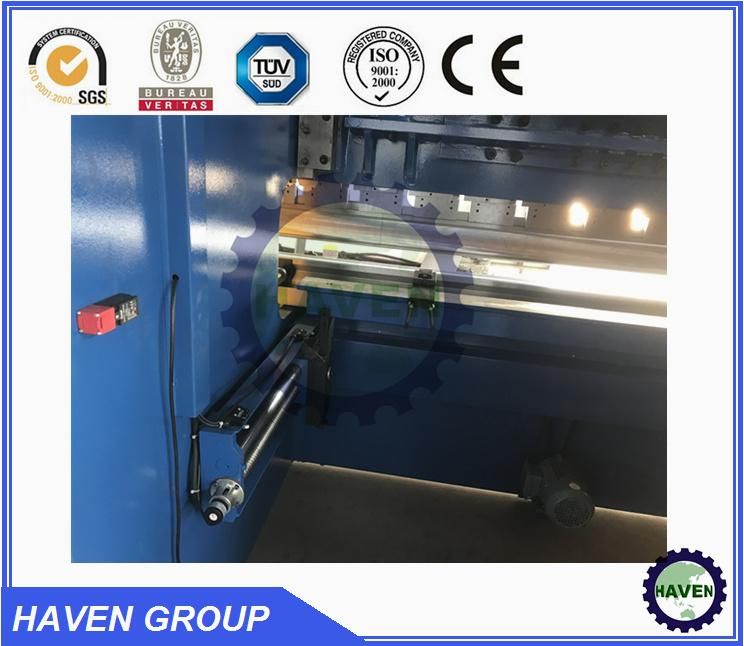

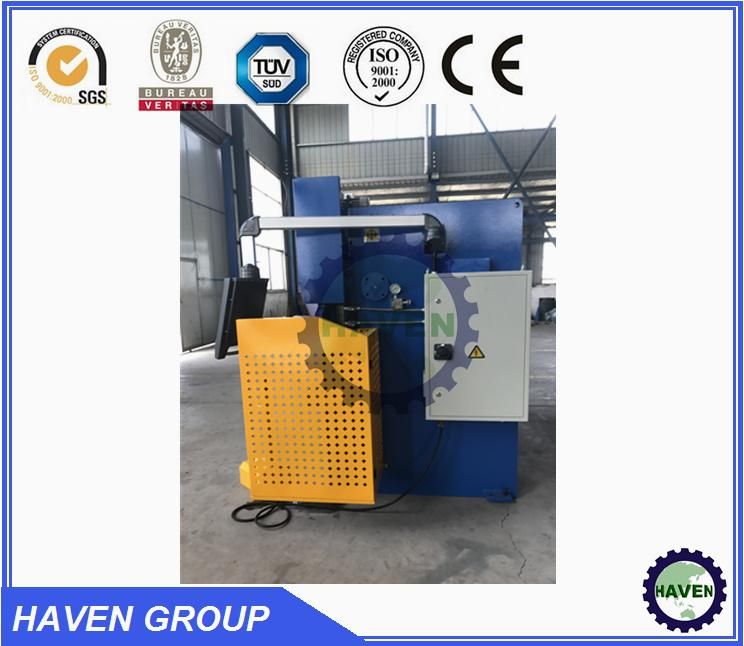

WC67Y-100/4000 CNC Hydraulic Steel Plate Bending Machine with SGS Certificate




Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide

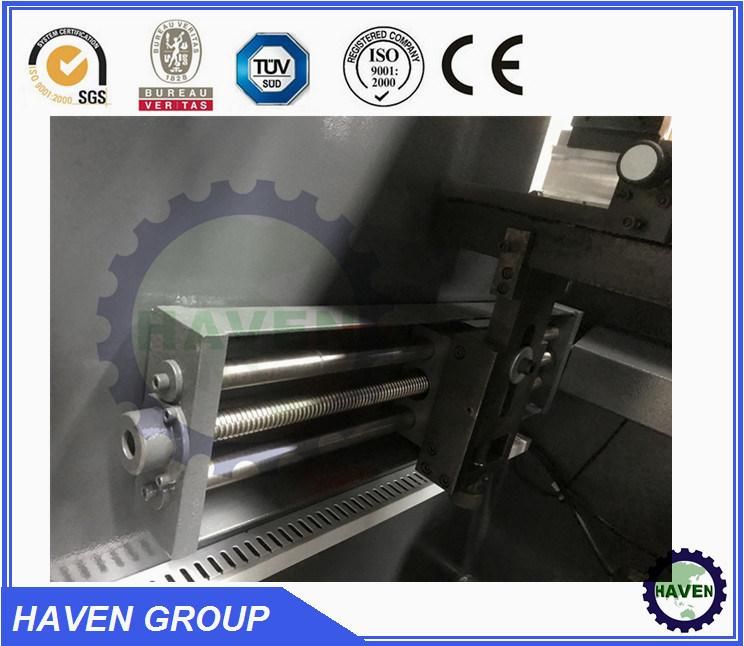

15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy

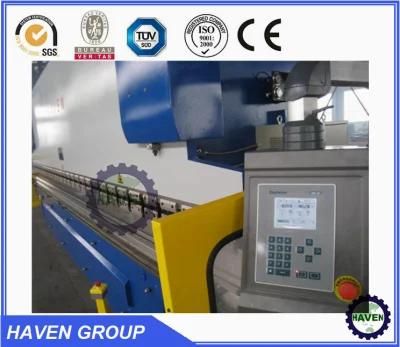

2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.


Specification	30 1350	40 1350	40 2500	63 2500	80 2500	80 3200	100 2500	100 3200	125 3200	160 3200	200 3200	250 3200	300 3200	400 3200
Nominal pressure (KN)	300	400	400	630	800	800	100	1000	1250	1600	2000	2500	3000	4000
Working width (mm)	1350	1350	2500	2500	2500	3200	2500	3200	3200	3200	3200	3200	3200	3200
Ram stroke (mm)	100	100	100	100	100	100	120	120	120	200	200	200	250	300
Stroke adjustment (mm)	80	80	80	80	80	80	100	100	100	160	160	160	200	200
Max. Stroke number (/min)	8	8	8	8	8	8	8	8	8	8	7	7	6	≥3
Motor power (k w)	3	3	3	5.5	7.5	7.5	7.5	7.5	7.5	11	15	20	22	30
Net weight ( t ) ( about)	2.1	2.1	2.3	4.5	5.5	6.5	6.9	8.2	8.7	10.5	13.5	15.5	21	20
