• Model NO.：WE67K-200,3200
• Application：Machinery & Hardware
• Type for Fold-bending Machine：CNC Fold-bend Machine
• Normal Pressure (Kn)：2000kn
• Working Table Length(mm)：3200mm
• Transport Package：Steel Pallet
• Specification：CE Standard
• Trademark：HAVEN
• Origin：China
• HS Code：8459
• Production Capacity：50units,Month

Basic Info.

Model NO. WE67K-200/3200 Application Machinery & Hardware Type for Fold-bending Machine CNC Fold-bend Machine Normal Pressure (Kn) 2000kn Working Table Length(mm) 3200mm Transport Package Steel Pallet Specification CE Standard Trademark HAVEN Origin China HS Code 8459 Production Capacity 50units/Month

Product Description

CNC Hydraulic press brake with  E200 DIGITAL READOUT




Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts

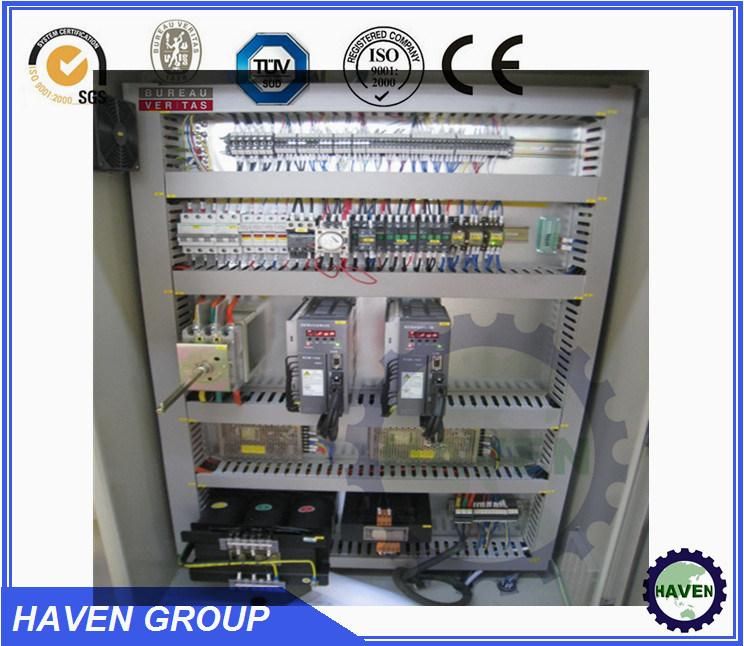

9.  Machine power is turn-off when the electric cabinet door opened
10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die

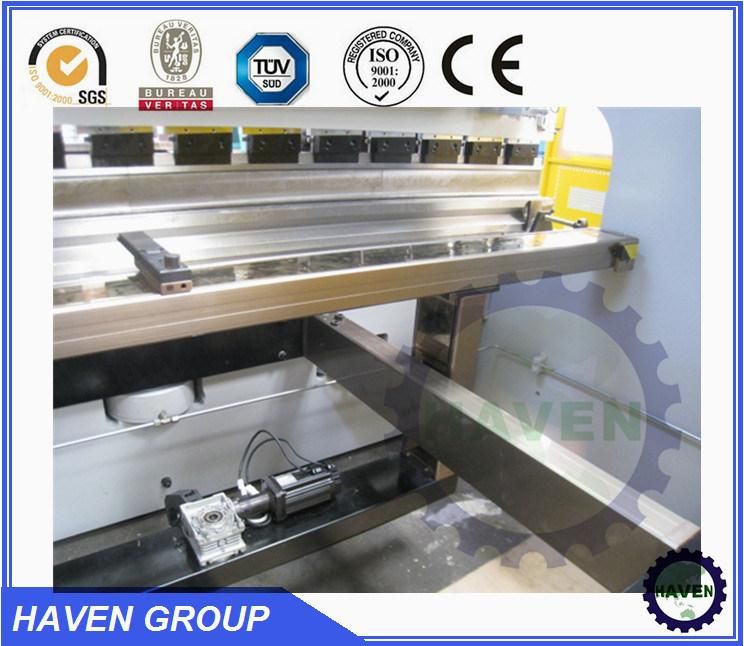

14. Back gauge beam is made of profile steel and liner guide
15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.


Main specification:



Model No.	Normal  Pressure (Kn)	Working Table  Length(mm)	Distance Between  Housing	Throat  Depth (mm)	Max .open  height (mm)	Side  stroke (mm)	Motor  Power (kw)	Net  Weight (kg)	Packing Size(cm)
WE67K-100/3200	1000	3200	2600	320	400	120	7.5	8100	345x150x268
WE67K-100/4000	1000	4000	3300	320	400	120	7.5	8300	420x156x271
WE67K-160/3200	1600	3200	2600	320	400	200	11	9500	345x155x276
WE67K-160/4000	1600	4000	3300	320	400	200	11	11000	425x155x282
WE67K-160/6000	1600	6000	4800	320	420	200	11	19800	650X180X282
WE67K-200/3200	2000	3200	2700	320	400	250	15	10500	345x160x276
WE67K-200/4000	2000	4000	3300	320	400	250	15	12000	425x160x282
WE67K-250/3200	2500	3200	2700	400	450	250	18.5	14000	350x180x350
WE67K-250/4000	2500	4000	3300	400	450	250	18.5	15500	447x197x335
WE67K-250/8000	2500	8000	5800	400	450	250	18.5	27000	830X220X335
WE67K-300/3200	3000	3100	2700	400	500	300	22	15500	356x197x335
WE67K-300/4000	3000	4000	3300	400	500	300	22	20000	460x200x350
WE67K-400/3200	4000	3200	2700	400	500	300	30	21000	360x210x340
WE67K-400/4000	4000	4000	3300	400	500	300	30	25500	460x210x350
WE67K-500/4000	5000	4000	3300	400	630	320	37	30000	460x218x360
WE67K-500/5000	5000	5000	4200	400	630	320	37	32000	560x218x360
WE67K-500/6000	5000	6000	4800	400	630	320	37	34000	615x362x520
WE67K-600/5000	6000	5000	4000	500	630	320	37	35000	515x382x520
WE67K-600/6000	6000	6000	4800	450	630	320	45	37000	625x370x490
WE67K-650/7000	6500	7000	5400	450	650	350	45	39000	736x450x530
WE67K-800/5000	8000	5000	4000	500	800	350	55	41000	525x390x510
WE67K-800/6000	8000	6000	5050	500	800	350	55	65000	650x480x580
WE67K-1000/6000	1000	6000	5050	500	800	400	55	89000	650x494x630
