High Quality CNC Sea Fish Hook Forming Machine

Dongguan Xinsheng Hardware Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：CE
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Voltage：220V,380V,440V,415V,Customized
  • Application：Wire Forming
  • Control System：CNC Control

Base Info

  • Advantage：Multiple Function
  • Machine Name：Multi-Axis CNC Wire Bending Machine
  • Transport Package：Standard Wooden Box
  • Trademark：WG
  • Origin：Guangdong, China (Mainland)

Description

Basic Info.

Advantage Multiple Function Machine Name Multi-Axis CNC Wire Bending Machine Transport Package Standard Wooden Box Trademark WG Origin Guangdong, China (Mainland)

Product Description

Technical Parameter
ModelGT80-12R
Line Diameter3.0-8.0mm
Max Line Feeding Value10000mm
Min Line Feeding Value0.01mm
Max Line Feeding Speed80m/min
Max Line LengthUnlimited
Axis12
Total Power of Servo Motors55kw
Input Power380/50/3v/hz/ph
Control systemMade in Taiwan
Program Storage3000plus
Air Pressure5~6kg/cm2
Probe Number3
Overall length3500mm
Overall width2150mm
Overall height2150mm
Weight7200kg

SPECIFICATIONS:

1) Flexible twisting arm with individual working situation.
2) Adopting Japanese Sanyo Denki servo motor and Taiwanese controller screen display.
3) Camless design, flexible in adjusting and great in precision.
4) Running in a high automatization and intellectualization, no pollution.
5) Bilingual interface, easy to operate.

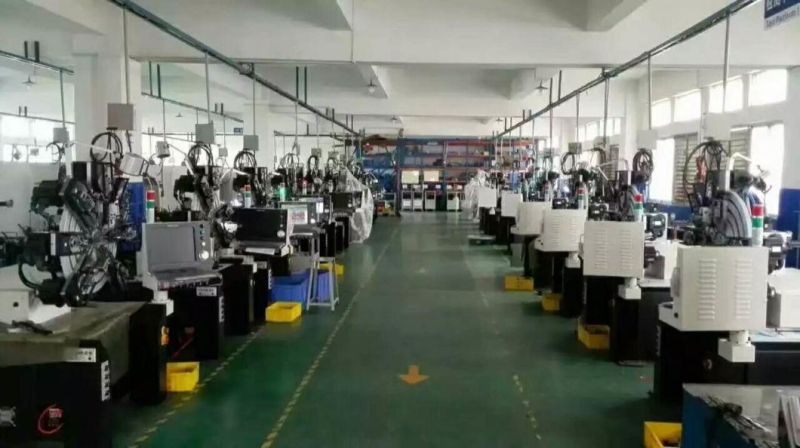

CertificationsHigh Quality CNC Sea Fish Hook Forming Machine  Packing & DeliveryHigh Quality CNC Sea Fish Hook Forming MachineHigh Quality CNC Sea Fish Hook Forming MachineOur CompanyHigh Quality CNC Sea Fish Hook Forming MachineHigh Quality CNC Sea Fish Hook Forming Machine
