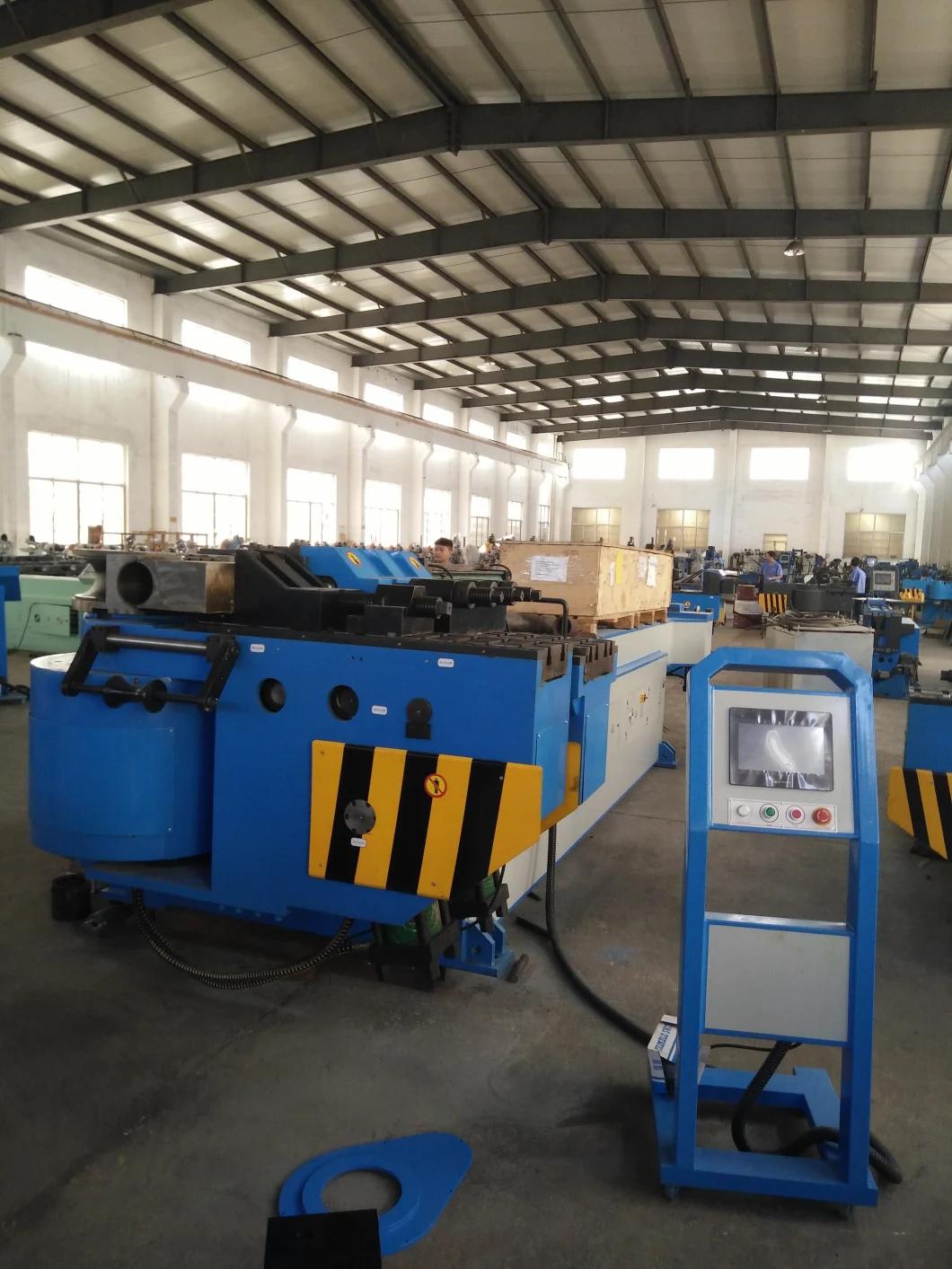

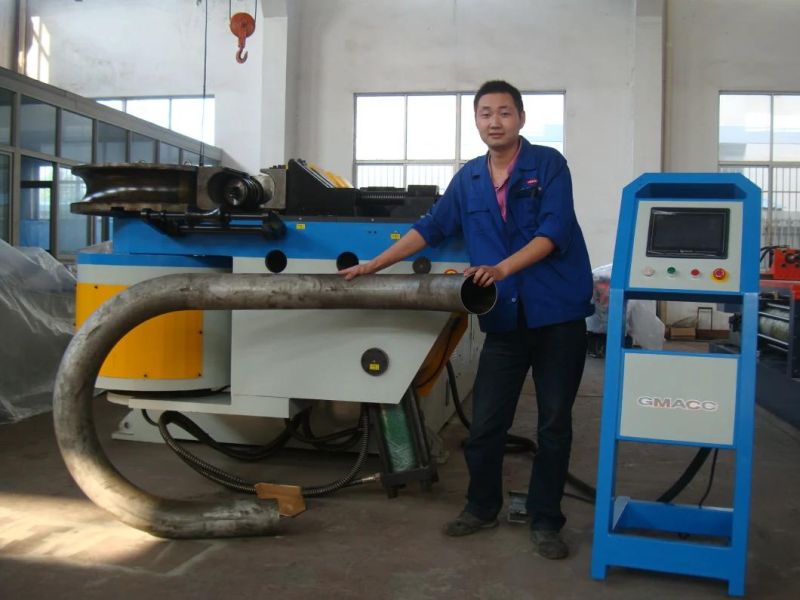

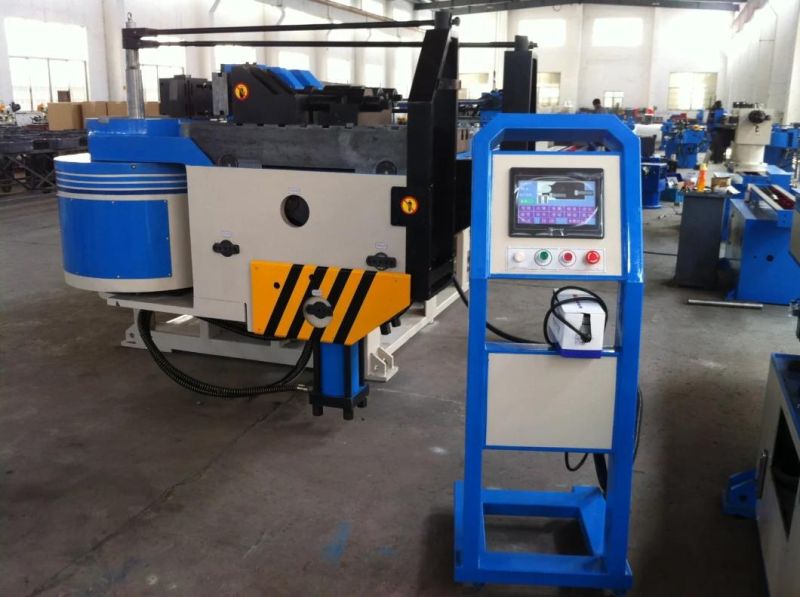

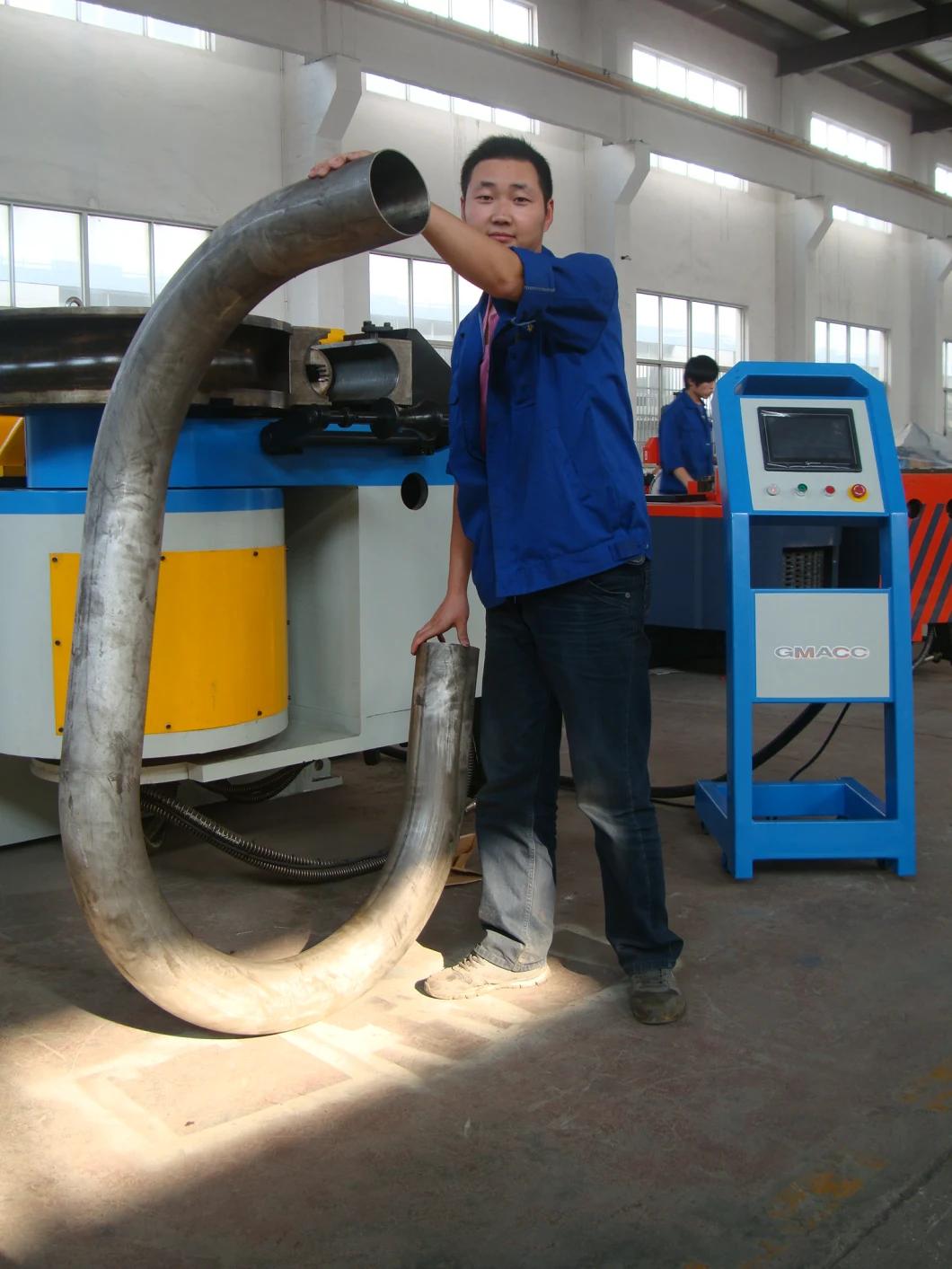

2020 New Design Gmacc Carbon Steel Hydraulic Nc Pipe Bender Machine (GM-SB-168NCB)
Zhangjiagang King-Macc Machinery Manufacturing Co., Ltd.- Waterproof Rating:IPX-8
- Warranty:2-year
- Condition:New

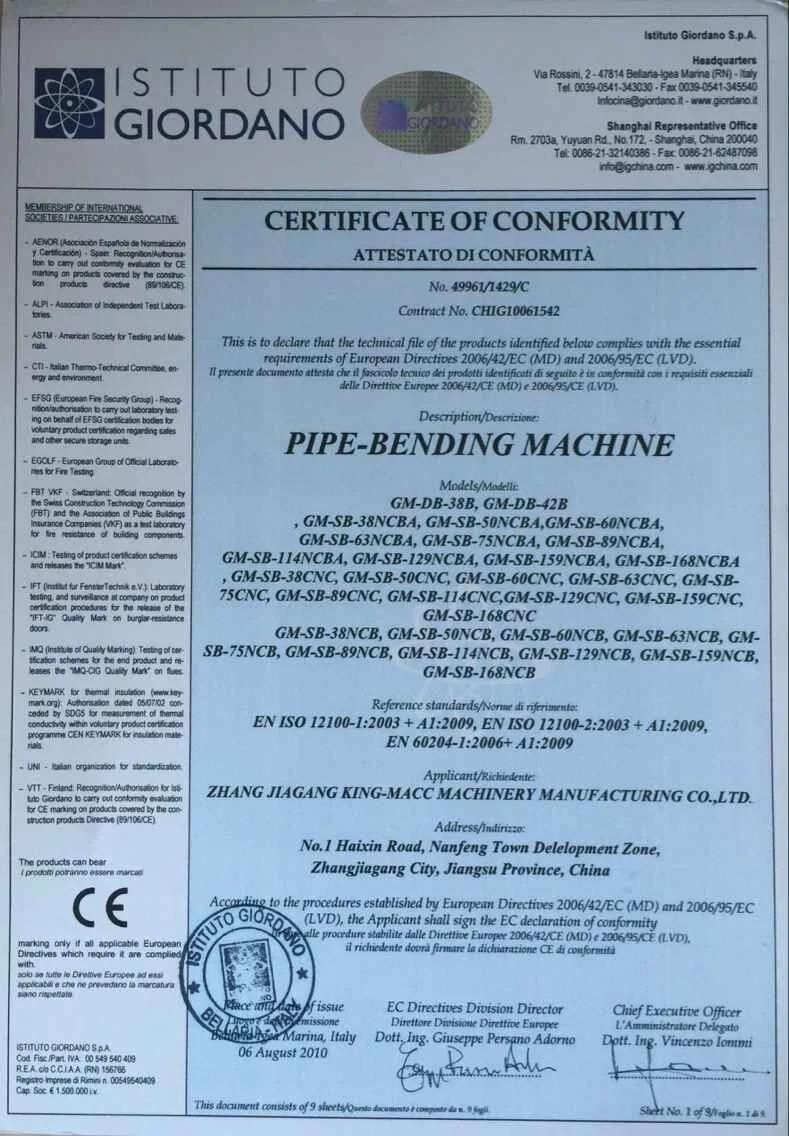

- Certification:ISO 9001:2000, CE, UL
- Automation:Semi-Automatic
- Suitable for:Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.:GM-SB-168NCB
- Type:Pipe and Tube Bending Machine
- Machine Type:Hydraulic
- PLC&Touch Screen:Mitsubishi
- Bending Capacity:O. D20-168mm
- Bending Driven:Cylinder
- Company:Sino-Italian Joint Venture
- Transport Package:Iron Case
- Specification:7200*2200*1450mm
- Trademark:GMACC
- Origin:Made in China
- HS Code:8462299000
- Production Capacity:100 PCS,Month
Description
Basic Info.
Model NO. GM-SB-168NCB Type Pipe and Tube Bending Machine Machine Type Hydraulic PLC&Touch Screen Mitsubishi Bending Capacity O. D20-168mm Bending Driven Cylinder Company Sino-Italian Joint Venture Transport Package Iron Case Specification 7200*2200*1450mm Trademark GMACC Origin Made in China HS Code 8462299000 Production Capacity 100 PCS/MonthProduct Description
2020 New Design Gmacc Carbon Steel Hydraulic Nc Pipe Bender Machine (GM-SB-168NCB)- Machine Characteristic
- Main Technical Parameter
Name | Unit | Parameter |
Mild steel round tube | mm | 168*18 |
Stainless Steel | mm | 168*12 |
Light alloy annealed round tube | mm | 168*20 |
Mild steel square tube | mm | 150*150*12 |
Mild steel rectangular tube | mm | 155*145*12 |
Mild steel round solid bar | mm | 95 |
Mild steel square solid bar | mm | 85*85 |
Min. bending radius | mm | 60 |
Max. Bending radius(Standard) | mm | 750 |
Head overhang (on bending centre) | mm | 718 |
Head height (on bending centre) | mm | 880 |
Bending centre height (from floor) | mm | 1180 |
Max. Bending Angle | ° | 190° |
Through Effective Distance | mm | 5600 |
Bending Speed(Max.) | °/sec | 8 |
Bending angle Precision | ° | ±0.10 |
System Motor Power | KW | 22 |
Hydraulic Pump Volume | L | 56 |
Max. Pressure | Mpa | 16 |
L*W*H (Packaging Dimension) | mm | 7200*2200*1450 |
Machine Weight | T | 14 |
Configuration of Hydraulic and Electronic Control System
Name | Manufacturer |
Hydraulic Motor | Germany Siemens(Beide)or Runmali |
Hydraulic Pump | Yuci Yuken/Wuxi Tuoli |
Hydraulic Valve | Japan Yuken(Imported) |
Cylinder | Shanghai Qifan |
Touch screen | Taiwan Weinview(Imported) |
PLC | Japan Mitsubishi(Imported) |
Angle controller | Japan Nemicon(Imported) |
Switch power | Wenzhou Changxing |
Contactor | German SCHNEIDER(Imported) |
Transformer | Wuxi Xinyu |
