• Model NO.：GM-SB-50CNC-4A-2SV
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-50CNC-2A-1S
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50CNC-4A-2SV Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-50CNC-2A-1S Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

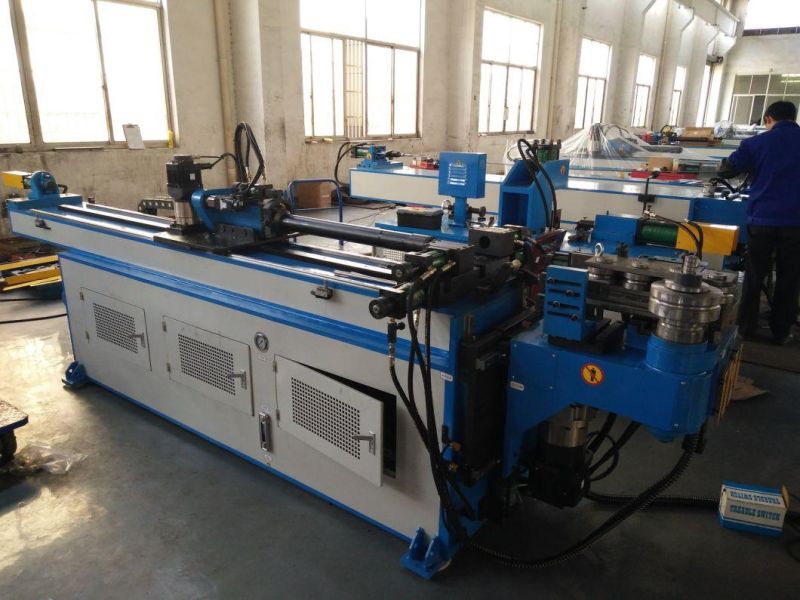

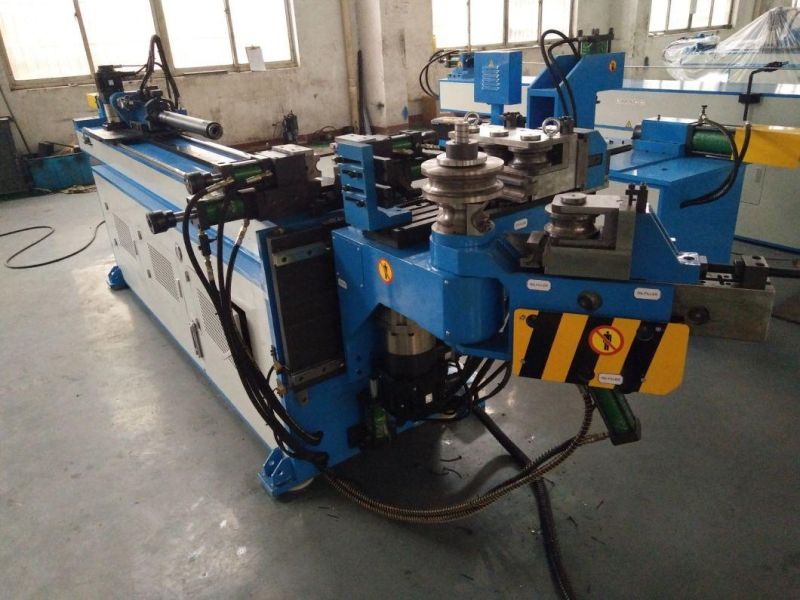

GM-SB-50CNC-4A-2SV Full-Auto Numerical Control  Machine CharacteristicsGM-SB-50CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. The machine adopt servomotor bending,feeding,rotating and mould moving,can be bending the tubes of two different radius precisely and fast,and with the function of pushing bending,which can bend the tube with large radius,it's professional,high-speed,full-auto bending machine.   Main Technical Parameter

Name	Unit	Parameter
Max Draw Bending Diameter	mm	50*2
Draw Bending Radius Range	mm	20-250
Rolling Bending Radius Range	mm	6D-∞
Radius Difference between two layers	mm	50
Head overhang (on bending center)	mm	600
Head height (on bending center)	mm	400
Bending center height (from floor)	mm	960
Max. bar passage inside the P.O.B. positionner	mm	50
Clamping adjustable stroke	mm	0-90
Shouldering adjustable stroke	mm	256
Mandrel retraction adjustable stroke	mm	0-76
Max. Bending Angle	°	190°
Through Effective Distance	mm	3200
Bending Speed(Max.)	°/sec	160
Max. rotation speed (axis Z)	°/sec	200
Max. Feeding speed (axis X.)	mm/sec	1000
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Bending Servo Motor Power	KW	5.5
Rotation Servo Motor Power	KW	0.75
Feeding Servo Motor Power	KW	3
Die Shifting Servo Motor Power	KW	0.75
Hydraulic Motor Power	KW	4
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4500*800*1300
Machine Weight	T	2.5

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	German SCHNEIDER
Transformer	Wuxi Xinyu

 Tooling Samples
           Bending Die                                   Clamp Die                          Pressure Die


           Mandrel                                                                   Wiper Die(optional)

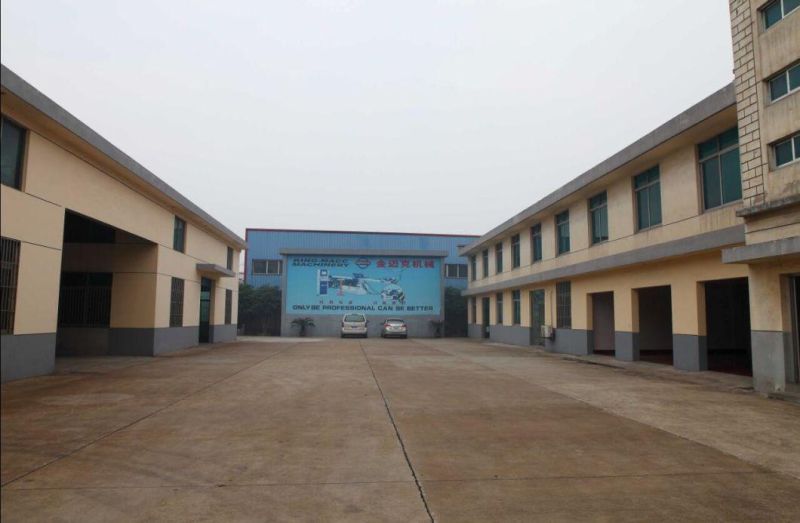

                              Company Photos

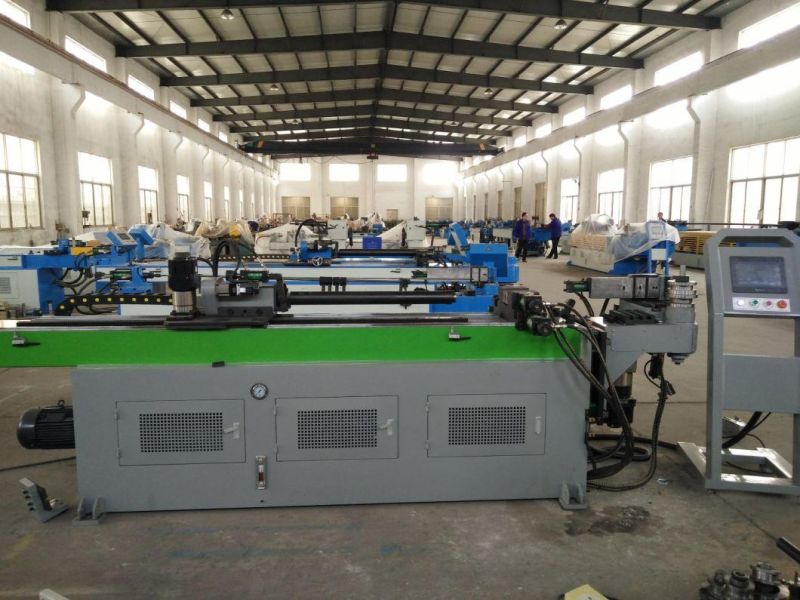

 CNC Machining Center                                           Assembling Workshop
