Motorised Plate Curving Rolling Bending Machine (PR-2.5/1300)
ACE Machine Tools Co., Ltd.- Automation：Semi-Automatic
- Capacity - Mild Steel：2.5mm
- Useful Length：1300mm
- Roll Diameter：90mm
- Application：Machinery & Hardware
- Transport Package：Sea Worthy Packing
Base Info
- Model NO.：PR-2.5,1300
- Specification：CE
- Trademark：Acemachinetools
- Origin：China
Description
Basic Info.
Model NO. PR-2.5/1300 Specification CE Trademark Acemachinetools Origin ChinaProduct Description
Motorised Plate Curving Rolling Bending Machine (PR-2.5/1300)Capacity - Mild Steel: 2.5mm
Useful Length: 1300mm
Roll Diameter: 90mm

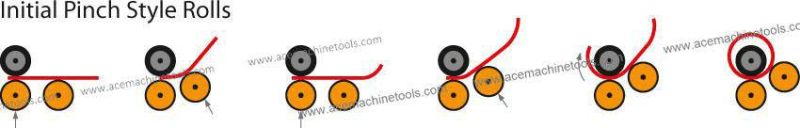

This machine has the following featuresInitial pinch rolls with pre-bendingTwo rolls powered by gearbox drive systemSwing out top roller enables cylinder to be removedSafety wire interlock system with emergency shut-offPrecision ground rolls with wiring groovesIncludes a conical bending guide rollerMobile foot pedal control
| ORDER CODE | |
| Rolls Type | Initial Pinch |
| Capacity - Mild Steel | 2.5mm |
| Useful Length | 1300mm |
| Roll Diameter | 90mm |
| Motor Power | 1.5kW / 2hp |
| Motor Voltage | 415V |
| Dimensions (LxWxH) | 1800 x 640 x 1000mm |
| Weight (nett) | 470kg |
