• Model NO.：RB-6
• Type：Hydraulic Bending Machine
• Transport Package：Wooden Box
• Specification：5.7CBM
• Trademark：ETERNOO
• Origin：China, Henan

Basic Info.

Model NO. RB-6 Type Hydraulic Bending Machine Transport Package Wooden Box Specification 5.7CBM Trademark ETERNOO Origin China, Henan

Product Description

3D Automatic Hydraulic Bar Chair Machine/ 3D Wire  Rod Bending Machine,
for supporting post tension corruagted spiral duct, smooth flat duct, presteeesed concrete duct etc.
ETERNOO bar chair making machine is specially designed for post tension industry.
It is fully automatic and hydraulic driven, which is high efficiency and could save
cost for customers from developed countries and high labor cost district.
FEATURES:
1. The machine could work with carbon steel wire rod: 5mm,5.5mm, 6mm, 7mm, 8mm etc.
2. Automatic, hydraulic driven, easy operation and maintenance.
3. Bar chair variable height:
to the plane shape (as drawing A), height range is 45mm-270mm;
to the angled shape(as drawing B), height range is 35mm-250mm.
Very easy to adjust any height, takes about 2 minutes.
4. Working speed: 20-30pcs/minute
5. Electricity and motor: 3ph, 220V/380V/410V/440V, 50HZ/60HZ
6. power: 5.5KW

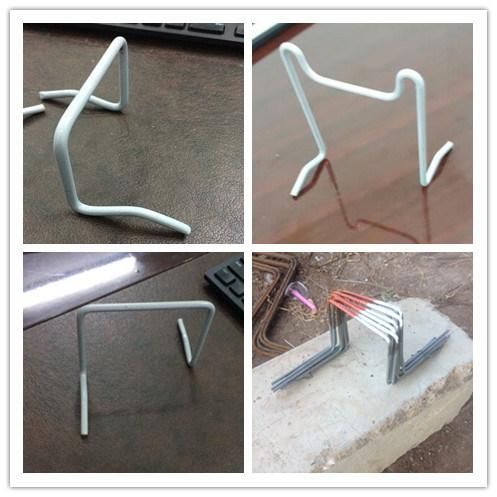

The popular bar chair shapes are as below:

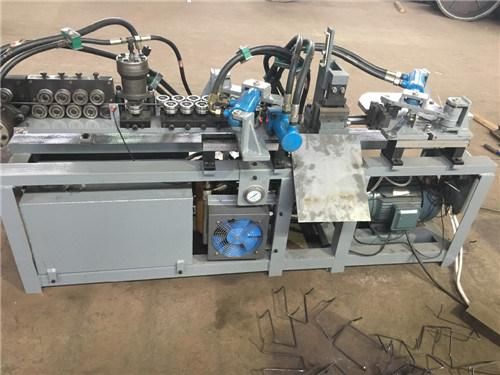

Our 3D hydraulic bar chair machine is as below:


Welcome to inquire the details from us.

If there is any inquiries on Prestressed Concrete and Post Tension industry,
welcome to contact with ETERNOO MACHINERY CO., LTD,
We believe in honest and win-win cooperation.
