• Model NO.：YG-WQ50E
• Type：Roller-Bending Machine
• Engine：Electric Motor
• Steel Rebar Diameter：6mm-50mm
• Application Matrial：Rebar, Round, Flat ,Square Steel, Steel Pipe
• Voltage：380V ,50Hz or Custom
• Power：7.5kw,11kw,15kw
• Steel Bending Angle：Less Than 180 Degree
• Weight：1400kg
• Application Place：Engineering Construction , Waste Steel Recycling
• Transport Package：Wooden Case
• Specification：1200*1700*1000mm
• Trademark：Yugong
• Origin：Henan, China
• HS Code：8461500090
• Production Capacity：2000,Month

Basic Info.

Model NO. YG-WQ50E Type Roller-Bending Machine Engine Electric Motor Steel Rebar Diameter 6mm-50mm Application Matrial Rebar, Round/ Flat /Square Steel, Steel Pipe Voltage 380V ,50Hz or Custom Power 7.5kw/11kw/15kw Steel Bending Angle Less Than 180 Degree Weight 1400kg Application Place Engineering Construction / Waste Steel Recycling Transport Package Wooden Case Specification 1200*1700*1000mm Trademark Yugong Origin Henan, China HS Code 8461500090 Production Capacity 2000/Month

Product Description

micro spiral iron steel rebar bending machine




Product Description

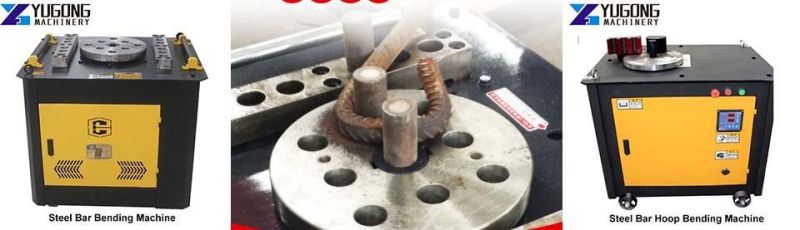

This kind of Steel Rebar Bending machine can bend steel bars of 6-40 mm or 6-50 mm into bridges and various shapes needed in construction engineering. The center pin and bending pin axle of the steel bending machine are installed on the working disc. When the disc rotates, the steel bar is bent. The steel bending machine mainly bends the screw-thread steel bar and the round steel bar.




Product Features

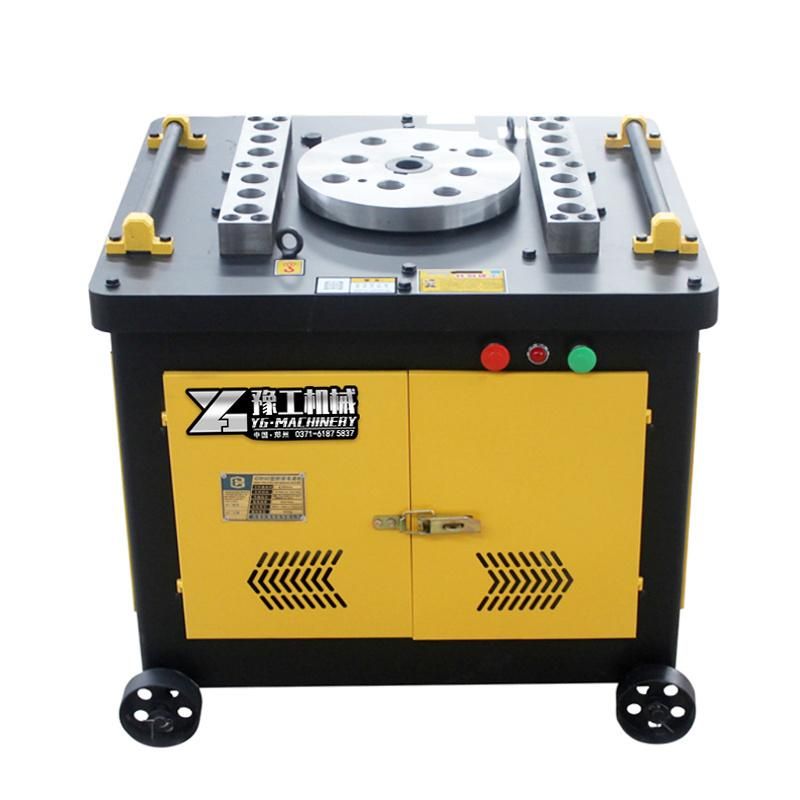

 1. Humanized Design. Four wheels at four corners which makes the bending machine easily moved around, and you can control the operation by pedal and the button.
2. Upgraded Solid Plate Strip. The disc strip is made up of refined stainless steel which is worn-resistance.

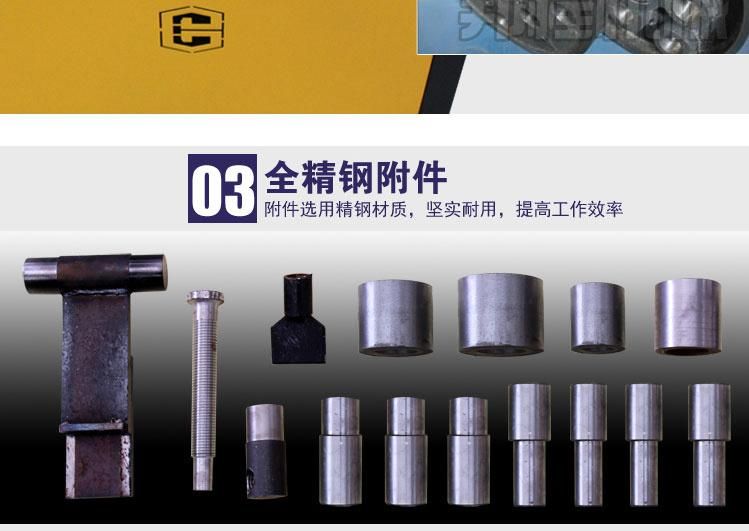

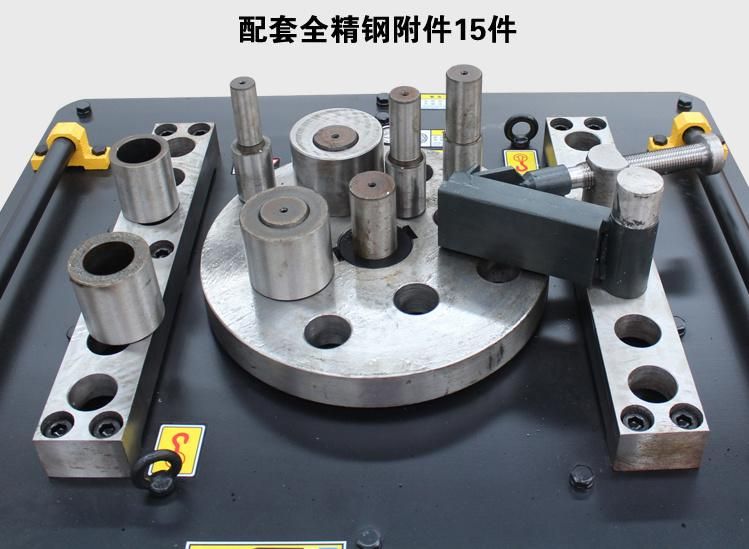

3. 15 pieces of refined stainless steel accessories highly prolong the service time and improve the working efficiency.
4. High quality pure copper motor .
5. Solid stainless steel working disc.

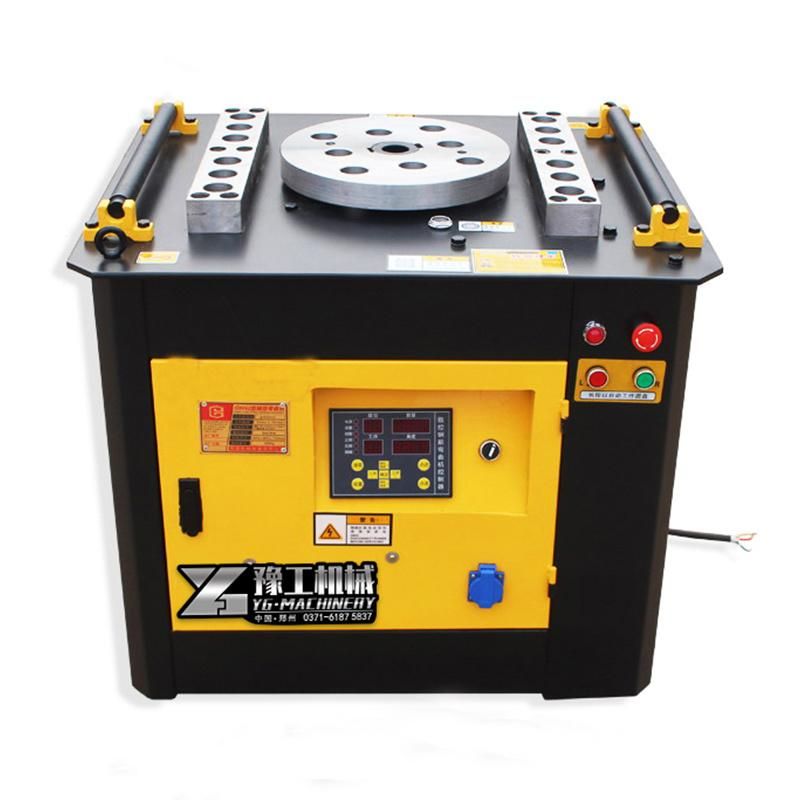

6. CNC control can precisely control the bending angle.





Product Parameters

Model	YGW40	YGW40A	YGW40B	YGW40C	YGW40D
Motor Power(kw)	3	3	3	3	4
Diameter of Round Steel(mm)	6-26	6-40	6-40	6-40	6-40
Diameter of Thread Steel(mm)	6-22	6-25	6-28	6-28	6-32
Disk Rotating Speed(rpm/min)	5-10	5-10	5-10	5-10	5-10
Net Weight(kg)	200	220	240	260	280
Size	800*700*650	860*790*780	860*800*850	880*770*850	860*800*850

Product Details

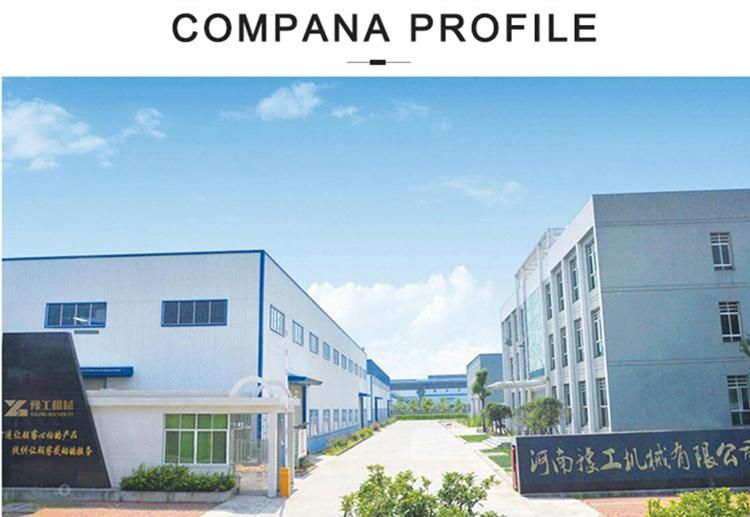

Company Information

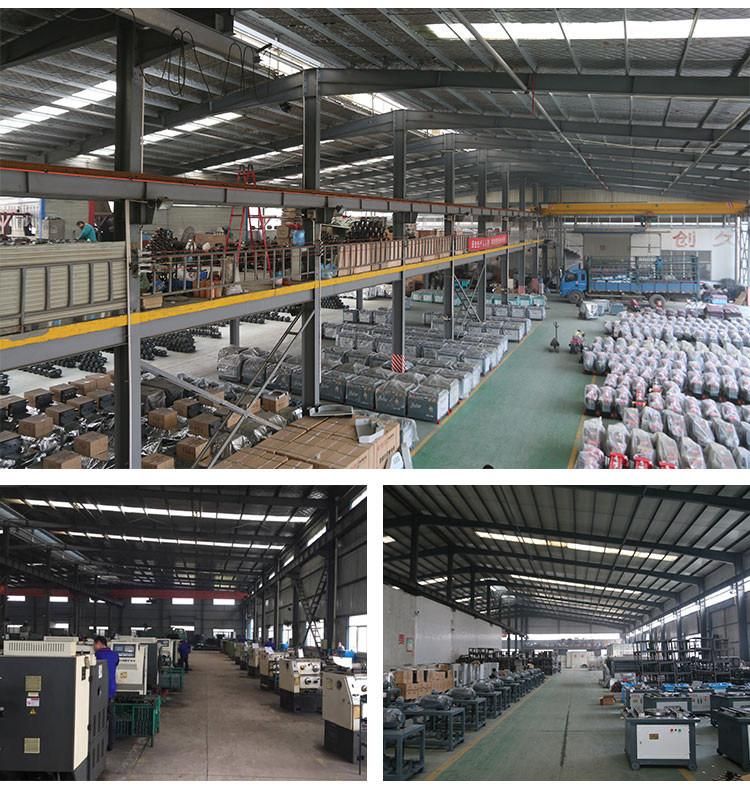

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production(42 enginers) and sales (120 sales persons) of steel bar and pipe machine,building construction machinery, bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you
