• Model NO.：STB-89CNC-2A
• Type：Pipe and Tube Bending Machine
• Electric Axis：2 Axis
• CNC System：Mitsubishi
• Transport Package：Polywood Case
• Specification：LWH: 6000× 1800× 1600mm, GW: 3400kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-89CNC-2A Type Pipe and Tube Bending Machine Electric Axis 2 Axis CNC System Mitsubishi Transport Package Polywood Case Specification LWH: 6000× 1800× 1600mm, GW: 3400kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

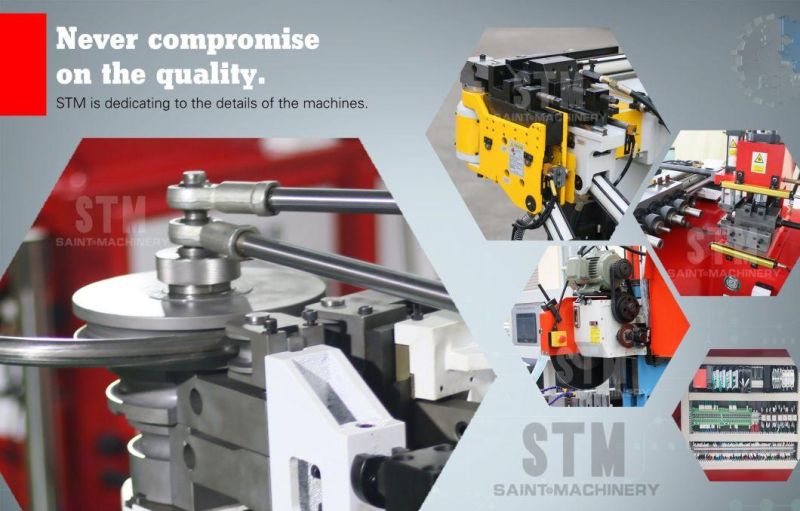

Product Description

1. Bend-arm (C-axis) by hydraulic.

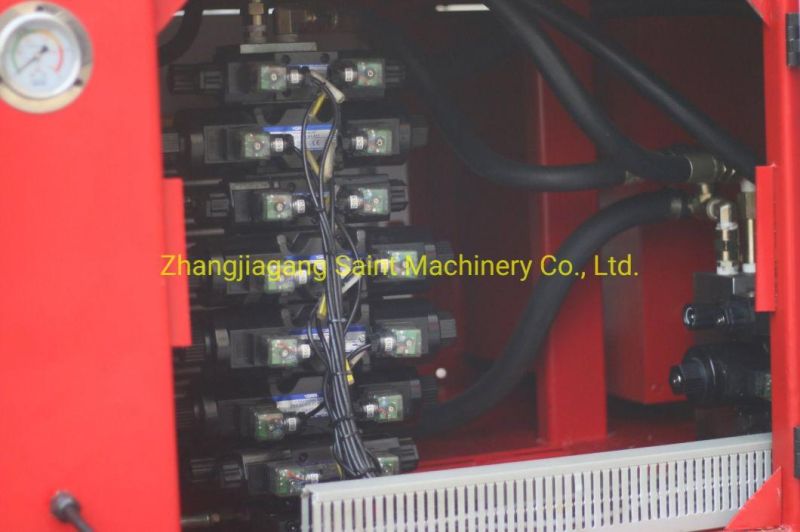

2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.

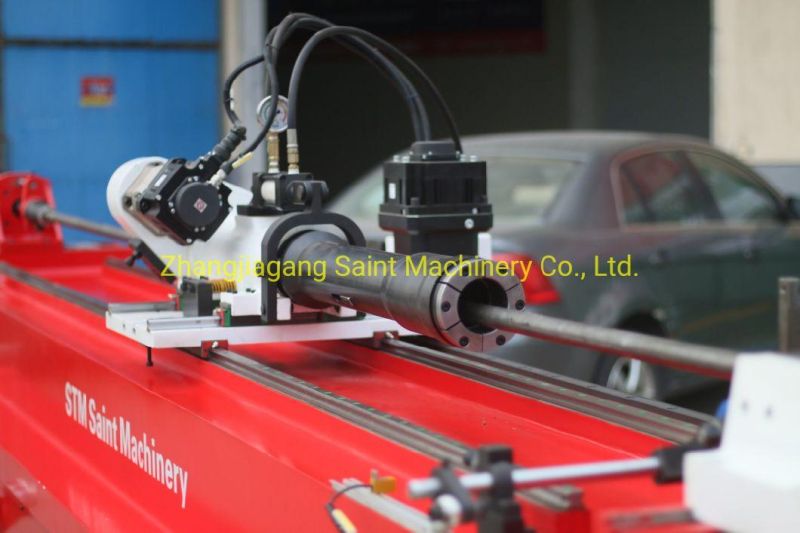

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift: no shifting
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Optional: Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
12. Optional: 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.
Technical parameters

Model	STB-89CNC
Max bending capability	Φ89×6 mm (carbon steel)
Bending radius	80~450 mm
Bending angle	0~195°
Max single stroke feed	4000mm
Bending speed	≤ 15°/sec
Bending accuracy	±0.1°
Feeding speed	20~500 mm/sec
Feeding accuracy	±0.1 mm
Rotating speed	≤ 200°/sec
Rotating accuracy	±0.1°
The voltage of control valve	DC24V
Main motor power	11Kw
System hydraulic pressure	14MPa
Size	6000×1800×1600mm
