• Model NO.：W11H-4X3200
• Type：Roller-Bending Machine
• Main Motor：30kw
• Extra Services：Machining
• PLC：OMRON or SIMENS
• Electric parts：Siemens, Germany
• Max rolling Thickness：4mm
• max rolling width：3200mm
• roller material：45# steel
• Transport Package：Steel Pallet
• Specification：Max. Thickness: 4mm, Max Width: 3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：84622990
• Production Capacity：80 Units,Month

Basic Info.

Model NO. W11H-4X3200 Type Roller-Bending Machine Main Motor 30kw Extra Services Machining PLC OMRON or SIMENS Electric parts Siemens, Germany Max rolling Thickness 4mm max rolling width 3200mm roller material 45# steel Transport Package Steel Pallet Specification Max. Thickness: 4mm, Max Width: 3200mm Trademark HAVEN Origin China HS Code 84622990 Production Capacity 80 Units/Month

Product Description

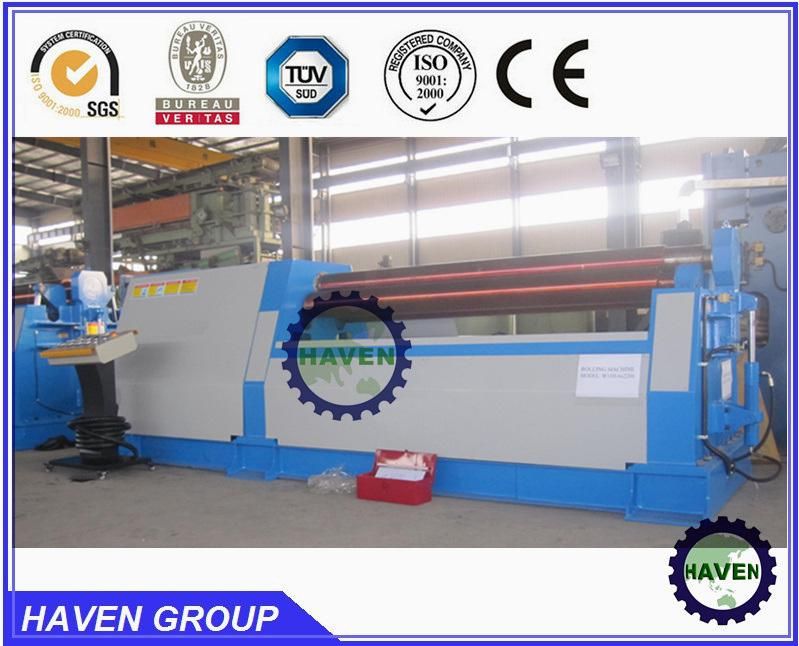

W11H-4X3200  bottom roller ARC adjust plate bending and rolling machine



Lower Roller Horizontal Adjust Three-roller Plate Rolling Machine

Preformance
 1.Italy Technology.
 2.Upper-roll fixed,the two rollers under a fixed turn around the center arc movement take-off and landing,under two separate movements canroll up or down with.
 3.On a plate material does not need to complete U-turn and pre-bending roll-round school,and other processes.
 4.Rollers are mainly the work of the three-driven roller to ensure that any thickness of the material sent to a good rolling function.
 5.Due to the location of the three roller can rely on the close,to achieve a small diameter tube and rolling round the school.

Characteristics
 1.Easy to operate,rolling ways to diversify.
 2.Simple movement(horizontal and vertical movement of synthetic campaign to lift the arc trajectory),a small fault.
 3.Plate rolling process,always in a state of clamping,the deviation will not slide.
 4.The work of the three-roll,rollthe same track.
 5.Rollers work in any state to release the space work out ,no need to reach the top position.
 6.Microcomputer control, synchronization accuracy of ±0.2mm.

MODEL	Max.  Thick (mm)	Max. Width (mm)	Yield Limitat (MPa)	Max.  Speed (m/min)	Min. Diameter (mm)	Top  roller (mm)	Bottom Roller (mm)	Hydraulic Motor (Kw)
W11H-4*2000	4	2000	245	5	500	160	160	4
W11H-4*3000	4	3000	245	5	500	190	190	5.5
W11H-6*2000	6	2000	245	5	500	190	190	7.5
W11H-6*3200	6	3200	245	5	550	230	230	7.5
W11H-8*2000	8	2000	245	5	500	210	210	7.5
W11H-8*3000	8	3000	245	4.5	600	250	250	11
W11H-10*2000	10	2000	245	4.5	550	230	230	11
W11H-10*3000	10	3000	245	4.5	650	270	270	15
W11H-12*2000	12	2000	245	4	650	270	270	15
W11H-12*3000	12	2000	245	4	650	270	270	18.5
W11H-16*2000	16	2000	245	4	750	300	300	18.5
W11H-16*2500	16	2500	245	4	750	300	300	18.5
W11H-16*3000	16	3000	245	4	800	330	330	18.5
W11H-20*2500	20	2500	245	4	800	330	330	18.5
W11H-20*3000	20	3000	245	4	900	360	360	22
W11H-25*2500	25	2500	245	4	1200	370	370	7.5
W11H-25*3200	25	3200	245	4	1200	430	370	11
W11H-30*2000	30	2000	245	4	1200	360	290	7.5
W11H-30*2500	30	2500	245	4	1200	420	360	11
W11H-30*3000	30	3000	245	4	1200	450	390	11
W11H-35*4000	35	4000	245	3.5	1400	500	400	18.5
W11H-40*2500	40	2500	245	3.5	1400	500	400	15
W11H-40*3000	40	3000	245	3.5	1600	540	440	18.5
W11H-40*4000	40	4000	245	3.5	2000	580	480	26
W11H-50*3000	50	3000	245	3.5	2000	580	480	22
W11H-60*3000	60	3000	245	3.5	2400	660	560	30
W11H-70*3000	70	3000	245	3.5	2800	710	620	37
W11H-80*3000	80	3000	245	3.5	3200	770	680	37
W11H-90*3000	90	3000	245	3.5	360	820	730	45
W11H-100*3000	100	3000	245	3.5	4000	860	770	45
W11H-110*3000	110	3000	245	3.5	4400	900	810	55
W11H-120*3000	120	3000	245	3.5	4800	950	860	55

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement


3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.


4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
