• Model NO.：WE67K-100T,3200
• Voltage：380V 50Hz 3phase
• Color：Customised
• Control Axis：4+1 Axis
• Hydraulic Pump：Rexroth Brand Fromm Germany
• Hydraulic System：Siemens or Schineder
• Linear Guidway：Hiwin Taiwan
• Optical Grating Ruler：Heidenhain From Germany
• CNC Controller：Delem Da56s From Netherlands
• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• HS Code：84622990
• Production Capacity：100units,Month

Basic Info.

Model NO. WE67K-100T/3200 Voltage 380V 50Hz 3phase Color Customised Control Axis 4+1 Axis Hydraulic Pump Rexroth Brand Fromm Germany Hydraulic System Siemens or Schineder Linear Guidway Hiwin Taiwan Optical Grating Ruler Heidenhain From Germany CNC Controller Delem Da56s From Netherlands Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) HS Code 84622990 Production Capacity 100units/Month

Product Description

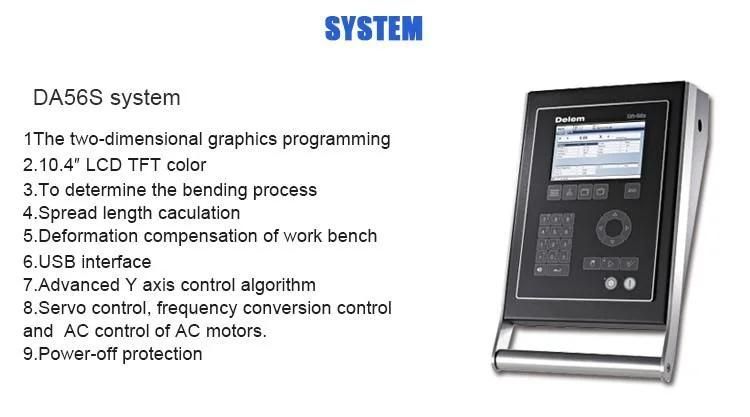

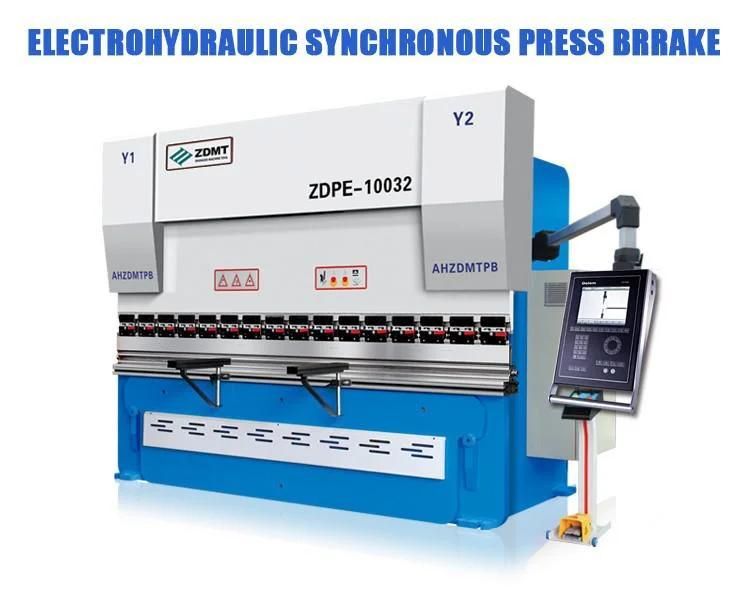

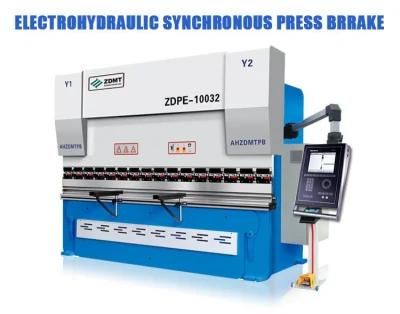

WE67K Series Electro-hydrauli synchronous CNC Press brake with Delem DA56S control 4+1 axis by programs

Features

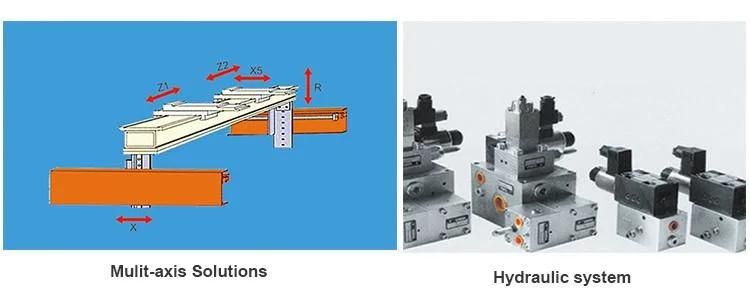

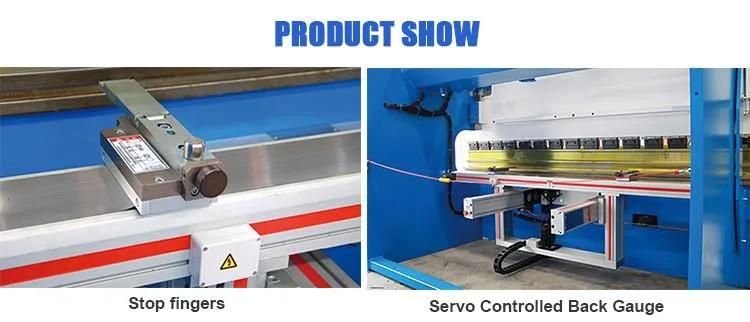

Advanced proportional valve controls the hydraulic cyliners to work synchronously and achieve precise repeatability performance. Be capable of being controlled at random point within the stroke. Repeatability precision +/-0.01mm, parallelism precision +/-0.02mm. Deflection compensation table or crowing system for high precision. Ram stroke (Y1, Y2) and back gauge(X,R,Z) are controlled by CNC. Back gauge installed with ball screw and linear guide rail, ensuring high accuracy of repetition. Muilti-axis CNC controlled synchronous press brake available as metal fabricating center.
