Cutting & Fold-bend Machine

CNC Hydraulic Press Brake Metal Sheet Bending Machine

Anhui ZhongDe Machine Tool Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Semi-Automatic
  • Suitable for:Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Press Brake

Base Info

  • Model NO.:WC67Y-250T3200 E21
  • Model:Wc67y-250t3200
  • Controller:E21
  • Transport Package:Steel Fixed
  • Specification:250T3200
  • Trademark:ZDMT
  • Origin:China

Description

Basic Info.

Model NO. WC67Y-250T3200 E21 Model Wc67y-250t3200 Controller E21 Transport Package Steel Fixed Specification 250T3200 Trademark ZDMT Origin China

Product Description

Hydraulic Press Brake Machine ZDP-25032 (WC67Y-250/3200)

The model of this hydraulic press brake machine is ZDP-25032 ( WC67Y-250/3200 ),With E21 NC controller,Motorized lead screw back gauge with 450mm travel range, controlled by E21;E21 control to indicate position of X and Y axes.

China Well-Known Trademark

Machine Top 500 China

Anhui Top Brand

ZDMT Hydraulic Press Brake Machine

Model: ZDP-25032 ( WC67Y-250/3200 )

Control system: E21 NC controller (Simple CNC controller)

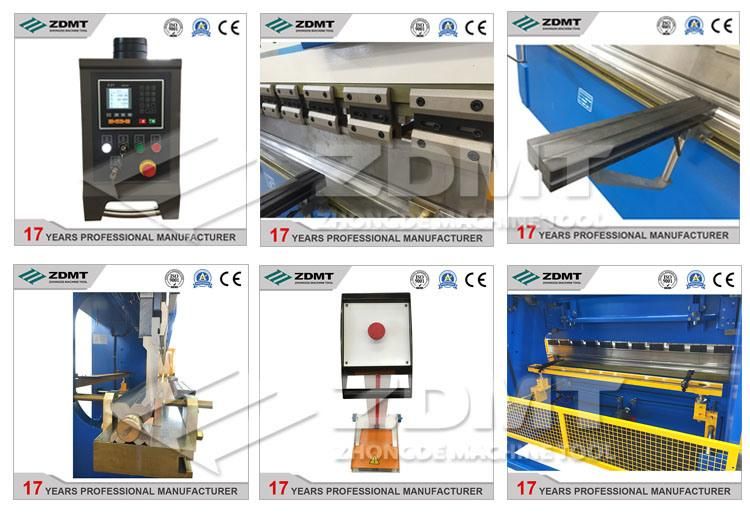

Basic features

• Robust and strong steel welded structure with stress relieving

• Stable and reliable hydraulic top driven

• Torsion bar keeps the parallelism between two cylinders

• Motorized lead screw back gauge with 450mm travel range, controlled by E21

• E21 control to indicate position of X and Y axes

• 2 Sliding front sheet support arms mounted onto T slot of the bed

• Segmented 88° top blade

• Solid one block four face multi V die

• Micro-adjustable upper wedge clamps

• Approved stable and reliable hydraulics

• Specially designed electric circuit with elements of Schneider

• 4 stop fingers with milscale for 3200 plate bending machine

• Emergency stop buttons placed on control panel and foot switch, ensuring safety

• Oil tank level and temperature indicator.

• Metal safety guard around the whole machine ensuring operator safety.

CNC Hydraulic Press Brake Metal Sheet Bending Machine
