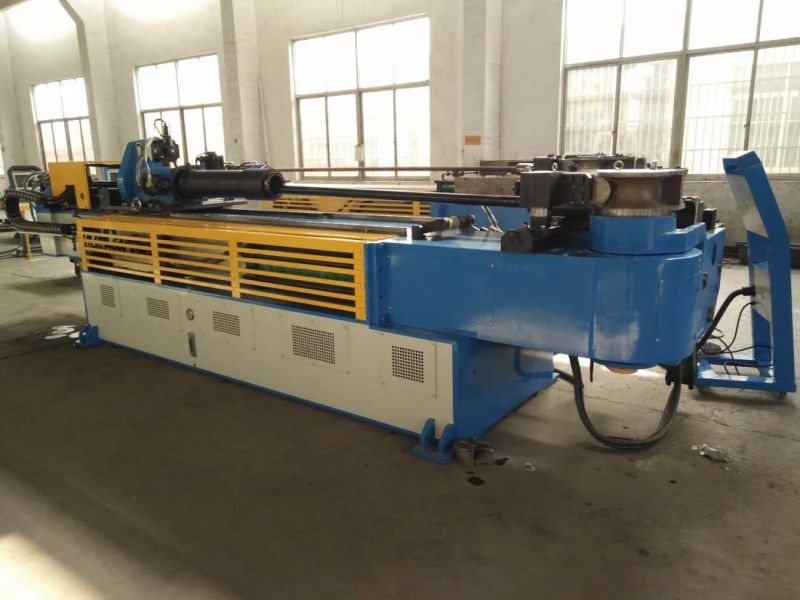

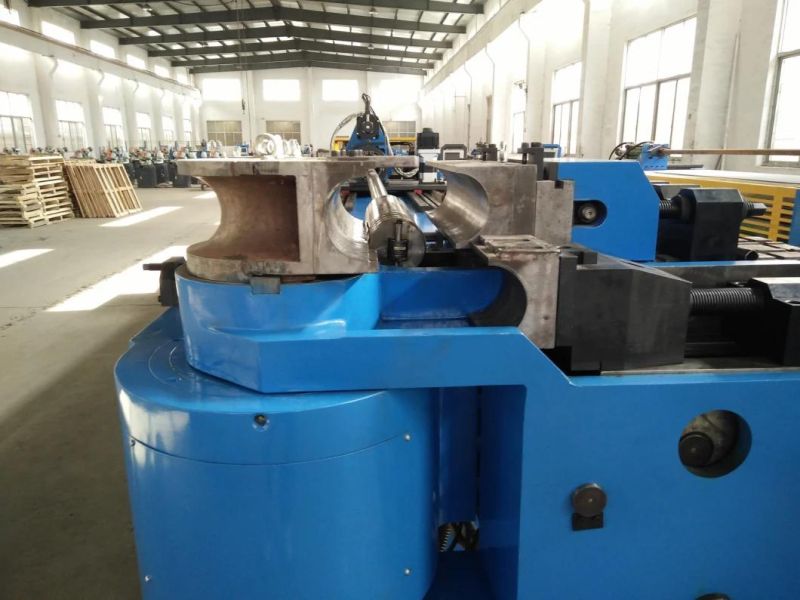

GM-SB-129CNC Full-Auto Numerical Control
Single-Head Bending Machine
Model:129×2A×1S

• Machine Characteristics

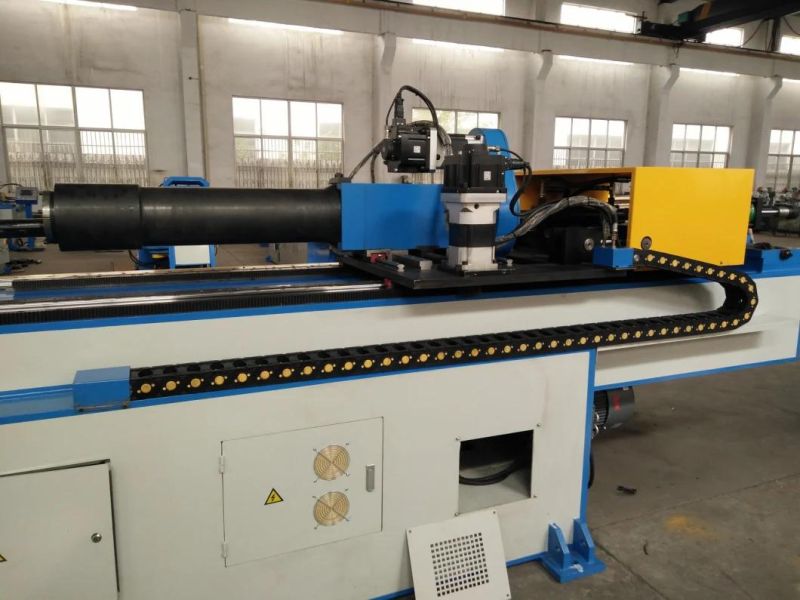

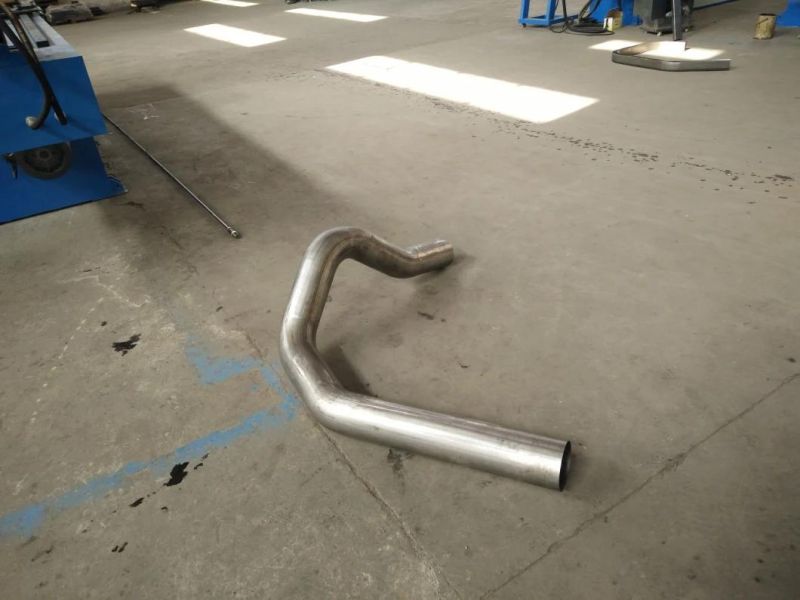

GM-SB-129CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinatesofmotions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending springback compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating (B axis), and pipe feeding(Y axis) are both driven by  servomotor. Pipe bending(C axis) is hydraulic.

• Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	¢129*10
Bending Radius Range	mm	50-550
Max. Bending Angle	°	190°
Bending Speed	°/sec	15
Turning Speed	°/sec	120
Feeding Speed	mm/sec	400
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	mm	±0.10
Turning Servomotor Power	kW	3
Feeding Servomotor Power	kW	3
Though Effective Distance	mm	4500
System Motor Power	kW	15
Max. Pressure	Mpa	16
Oil Pump Delivery Volume	L	45
L*W*H (Packaging Dimension)	mm	5500*1350*1300
Weight	T	7.5



• Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Cylinder	Shanghai Qifan
Oil tube	Zhejiang
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)
