Hydraulic Pipe Bending Machine
Hebei Dechuang Chemical Equipment Co., Ltd.- After-sales Service:Yes
- Condition:New
- Certification:RoHS, ISO 9001:2000, ISO 9001:2008, CE
- Automation:Automatic
- Suitable for:as Customer′s Need
- Type:Roller-Bending Machine
Base Info
- Model NO.:45 degrees, 90 degrees, 180 degrees
- Production Range:Od60mm-2000mm(2-80inches)
- Radius:2.5D≤r≤10d≤15000mm
- Thickness:2mm-90mm
- Angle:0-180degree
- Material:Carbon Steel, Alloy Steel, Stainless Steel
- Transport Package:Suitable Shipping by Sea
- Specification:As customer′s requirement
- Trademark:DeChuang
- Origin:Hebei, China
- HS Code:84262990
- Production Capacity:200set Per Year
Description
Basic Info.
Model NO. 45 degrees, 90 degrees, 180 degrees Production Range Od60mm-2000mm(2-80inches) Radius 2.5D≤r≤10d≤15000mm Thickness 2mm-90mm Angle 0-180degree Material Carbon Steel, Alloy Steel, Stainless Steel Transport Package Suitable Shipping by Sea Specification As customer′s requirement Trademark DeChuang Origin Hebei, China HS Code 84262990 Production Capacity 200set Per YearProduct Description

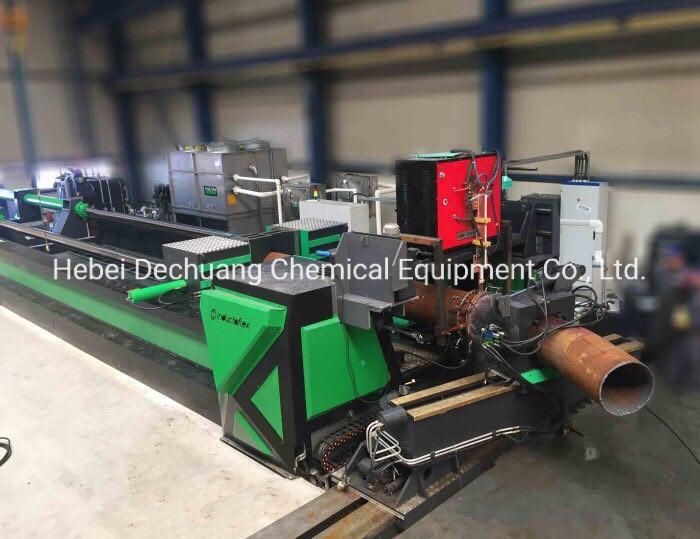

Hydraulic Pipe Bending Machine

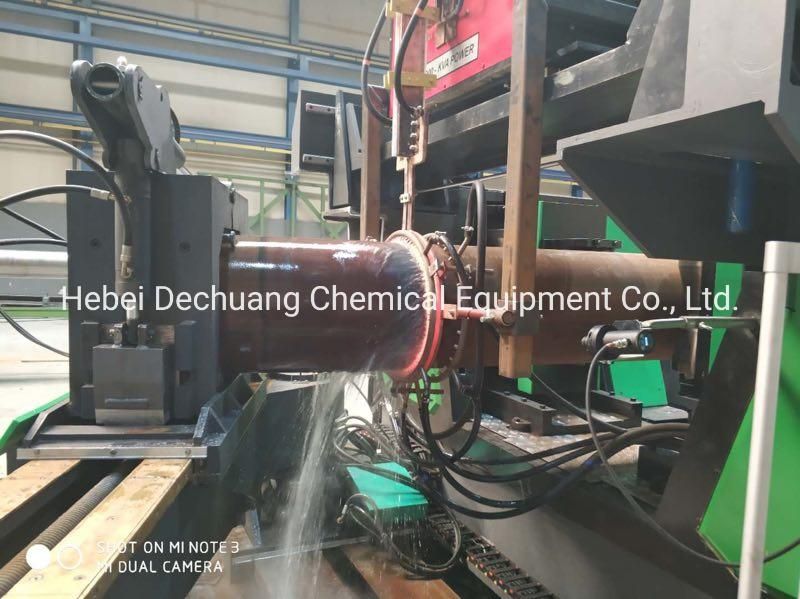

Induction tube bending machine adopts the medium frequency induction heating the steel tube, plastic deformation, through the hydraulic cylinder push system, steel pipe with the clamping head along the radial center of rotation, bending forming.
Pipe bending machine can according to the specific requirements of customers, bending carbon steel, alloy steel, stainless steel, P91, X70, X80 and angle steel, channel steel, I-steel, Square steel
. Bending radius is not restricted, can bend large radius of the pipe, can be small radius bending 1.5D. Bending angle of 45 degrees, 90 degrees, 180 degrees.
The production of induction bending machine is widely used in petroleum, chemical, natural gas, construction and other industries. Sold In China and abroad, is well received by the customers.
Our self-developed hydraulic automatic induction pipe bending machine has won the national patent, patent No.200620128117.9 .
Bending process uses PLC control system : input the para meters of pipe OD,wall thickness,No.,radius, bend angle and raw material numbers, material, heating temperature and a series of data in the touch, PLC will control the heating temperature almost constant (±20°) by colsed loop between pushing speed and heating temperature.
The bending machine has already obtained the CE attestation.
