• Model NO.：QC12Y-4X2500 E21S
• Transport Package：Base Framed by Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• Production Capacity：50unit,Month

Basic Info.

Model NO. QC12Y-4X2500 E21S Transport Package Base Framed by Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) Production Capacity 50unit/Month

Product Description

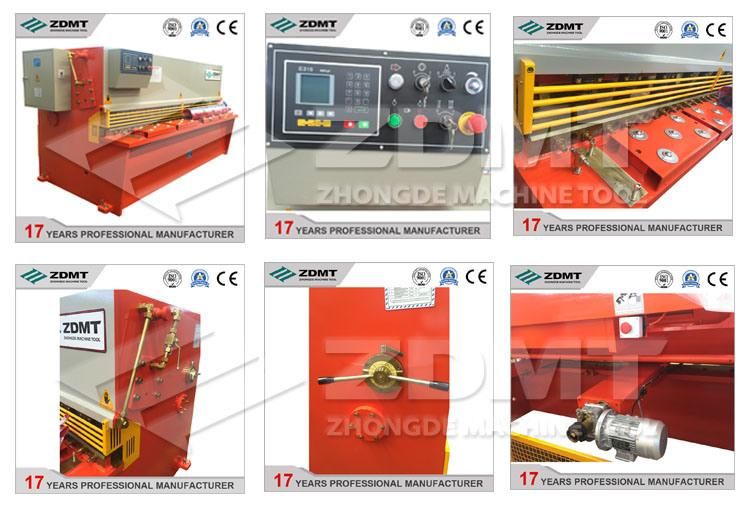

QC12Y-4X2500 (ZDS-425) Hydraulic Shearing Steel Metal Cutting Machine

QC12Y-4X2500 (ZDS-425) Hydraulic Swing Beam Shear,the maximum thickness of cutting mild steel is 4mm,the maximum length is 2500mm.

Steel plate welded structure,hydraulic transmission and accumulator return strock;Characterized by easy operation,reliable performance and fine appearance;

With E21S simple CNC controller,E21S can control the movement of backgauge,achieving efficient and highly precise positioning;

The blades with high tensile strength,can cut mild steel and stainless steel.

Main function and features

Steel plate welded structure,hydraulic transmission and accumulator return strock.

Characterized by easy operation,reliable performance and fine appearance.

Indicator based gap adjustment of blades,convenient and swift.

Shadow light alignment.

Top blade could be adjusted for full stroke or shorter ones.

Fence guard for personnel safety.

E21S as the simple CNC controller,it can control the movement of backgauge,achieving efficient and highly precise positioning.

Related configuration with details :
1. E21S simple CNC controller for  hydraulic shearing machine.
2. Domestic high quality hydraulic valve,no oil leakage and fault,it can show the oil pressure in time,and it use full-metal high-pressure tube connection,ensure the quality.
3. Top brand main motor,with strong power.
4. Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Using high quality holding-down clamps.
5. Indicator-based adjustment of blades clearance is easy,convenient and swift.
6. Emergency stop button on the back of the shear machine,to protect the personnel safety.
7. Domestic high quality bearing,wearproof and long operation life.
8. Penetration guard fence around the shear,not only protect the safety of operator but also observe the shearing position.
9. Taiwan high quality SHIHLIN frequency inverter,lower frequency and more energy-efficient,with quick positioning.
10. Shanghai good quality blades,with long lifespan.
11. Bite type tube fittings is used to avoid disadvantages of uneasy maintenance etc that caused by welding.
