Hydraulic Press Brake Bending Machine E200p

Anhui ZhongDe Machine Tool Co., Ltd.
  • Warranty:1-year
  • Condition:New
  • Certification:ISO 9001:2008, CE
  • Automation:Semi-Automatic
  • Suitable for:Aluminum, Alloy, Carbon Steel, Stainless Steel
  • Type:Press Brake

Base Info

  • Model NO.:WC67K-160T3200 E200P
  • Model:Wc67K-160t3200
  • CNC Controller:E200p
  • Transport Package:Base Framed by Steel and Plastic Bag
  • Specification:1 Unit
  • Trademark:ZDMT
  • Origin:China(Mainland)
  • Production Capacity:50unit,Month

Description

Basic Info.

Model NO. WC67K-160T3200 E200P Model Wc67K-160t3200 CNC Controller E200p Transport Package Base Framed by Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) Production Capacity 50unit/Month

Product Description

ZDPK-16032 (WC67K-160/3200) E200P CNC Press Brake

The model of this cnc press brake is ZDPK-16032 (WC67K-160/3200),with ESTUN E200P CNC control system.After input the backgauge value (bending position) and stroke data (bending angle) on E200P controller,the press brake ZDPK-16032 can run automatically;Different position and different angle can continuous program,it can save more than 70% time for the operator.With Y axis servo positioning function,it can accurate and effective improve Y axis accuracy and working efficiency.


Main function and features:

Strong rigid torsion bar design,ensuring the synchronous movement of ram stroke.

Built-in mechanical stop,ensuring an accurate positioning of ram stroke.

 With E200P CNC controller,control the backgauge (X axis) and ram stroke (Y axis) run automatically,with easy operation,more output with less input.

X axis is controlled by servo motor,with strong synchronous belt,with high control accuracy,fast positioning and low noise.

The backgauge installed with ball screw and linear rail,with high repetition accuracy and low maintenance.

 Vertial movable stop fingers,they can not only slide on linear rail but also go up or down if needed,adapt to different moulds.

With high-precision cnc moulds/dies and quick clamps,it will be more accurate and durable when bending plates,high efficiency when removing and changing upper punch tools.

With France Schneider electrics,stable and durable.

With double front holder,can move horizontal.

With imported hydraulic system,stable and high precision when persistent working.

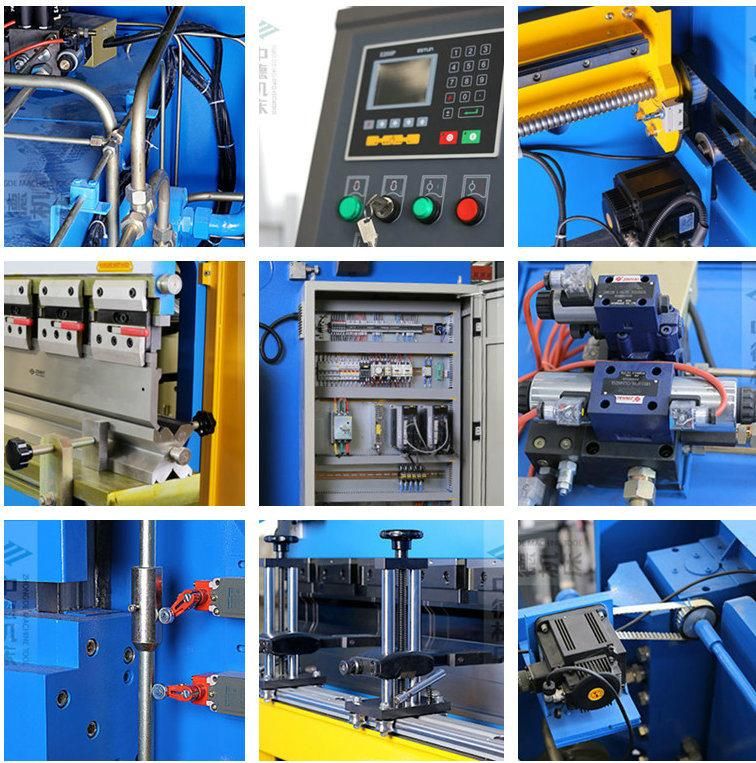

Related configuration with details:

1.CAN-bus mode to control servo system of X axis
Parts counting
40 programs saving,each with 25 sequences
One side positioning
Built-in time relay for cutting time and retrack
One key backup/restore of paremeters
Online diagnosis and real-time alarm
Reseved ports for safety guard
Color LCD bright display

2.Full-metal pipe shroud connection,nonexpansion when high temperature,can guarantee precision for long time.

3.X axis with ball screw,linear rail,servo motor and steel synchronous belt,can improve X axis positioning precision and speed.

4.High precision quick clamps,it is for easy operation of removing and changing upper punch tools.

5.With France Schneider electrics,stable and durable.

6.Engineering switch,with long stroke control.

7.Thicker type backgauge structure,adjustable stop fingers,they can not only slide on linear rail but also go up or down if needed,adapt to different moulds.

8.With Y axis servo positioning function,it can accurate and effective improve Y axis accuracy and working efficiency.
