• Model NO.：STB-18CNC-4A-2S
• Type：Pipe and Tube Bending Machine
• Electric Axis：4 Axis
• CNC System：Mitsubishi
• Tools Stack：2 Stacks
• Transport Package：Polywood Case
• Specification：LWH: 2000x800x1400mm, GW: 800kg
• Trademark：STM
• Origin：China
• HS Code：8462219000
• Production Capacity：500

Basic Info.

Model NO. STB-18CNC-4A-2S Type Pipe and Tube Bending Machine Electric Axis 4 Axis CNC System Mitsubishi Tools Stack 2 Stacks Transport Package Polywood Case Specification LWH: 2000x800x1400mm, GW: 800kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500

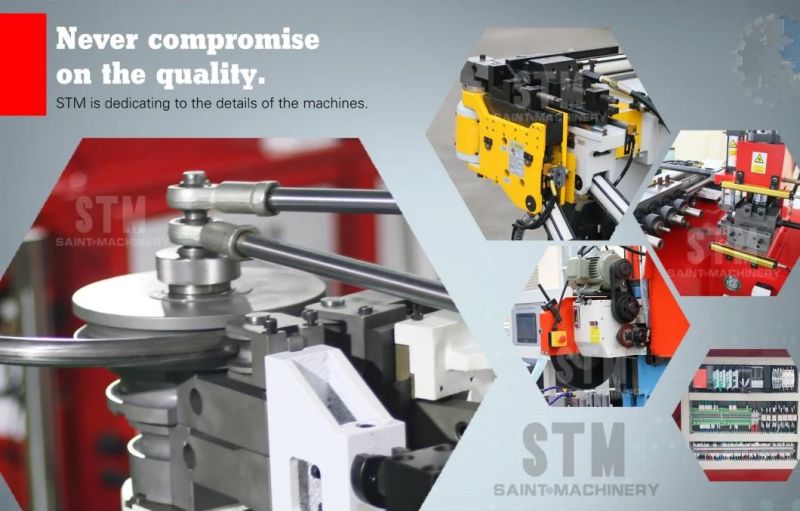

Product Description

1. Bend-arm (C-axis) by AC servomotor.

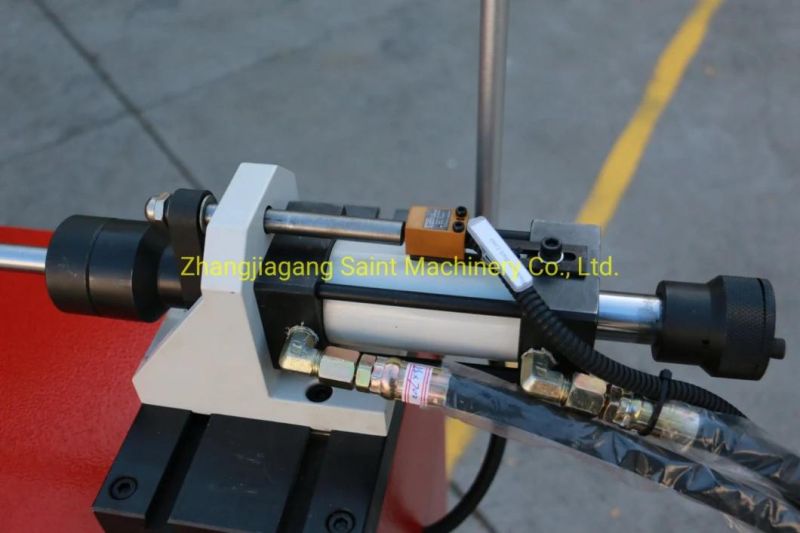

2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.

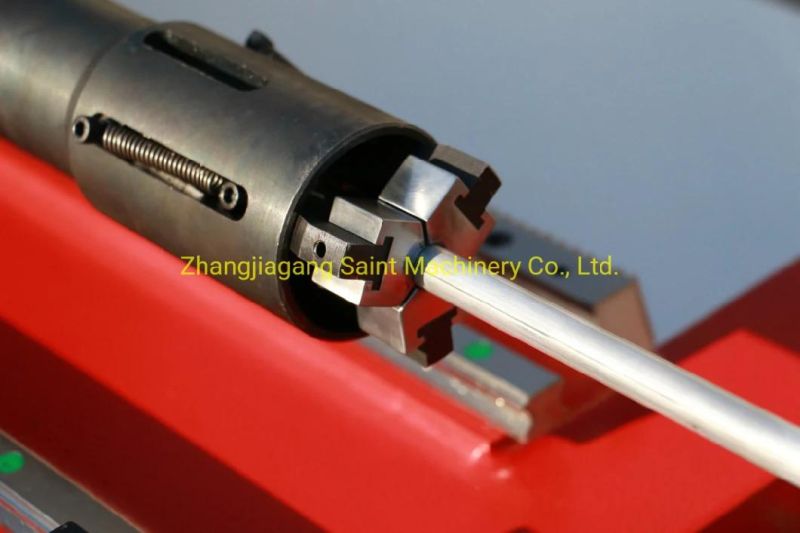

5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by hydraulic, left-right by AC servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control (TeamViewer)
12. Optional: 3D bending simulation and collision prevention
13. Optional: auto loading and unloading system.


Technical parameters	STB-18CNC-4A
Bending capability	Φ18×2 mm (copper, aluminum); Φ12×1. 5 mm (stainless steel)
Bending radius	6~50 mm
Bending angle	0~195°
Max clip pipe length	900 mm
Bending speed	280°/sec
Bending accuracy	±0.1°
Feeding speed	900 mm/sec
Feeding accuracy	±0.1 mm
Rotating speed	720°/sec
Rotating accuracy	±0.1°
Rotating motor power	200W
Feeding motor power	750W
Main motor power	1500W
System hydraulic pressure	4.5Mpa
Size	2000×800×1400mm
Weight	800kg
