• Model NO.：stirrup bending machine
• Transport Package：Nude Package
• Trademark：Amitycare
• Origin：China-Jiangsu
• HS Code：8462299000
• Production Capacity：300 Set ,Year

Model

CBM-12A

CBM-12B

CBM-16

Single line working ability

Diameter of grade1:steel bar:6-12mm

Diameter of grade1 steel bar:6-12mm

Diameter of grade1 steel bar:10-16mm

Diameter of grade 3 rebar :6-12mm

Diameter of grade 3 rebar:6-12mm

Diameter of grade 3  rebar:10-16mm

Double line working ability

Diameter of grade1 steel bar:6-10mm

Diameter of grade1 steel bar:6-10mm

Diameter of grade1 steel bar:10-14mm

Diameter of grade 3 rebar:6-8mm

Diameter of grade 3 rebar:6-10mm

Diameter of grade 3 rebar:10-12mm

Production efficiency(num/h)

1440

1440

1200

Max bending angle (positive, negative)

180°

180°

±180

Max feeding speed(mm/s)

2000

2000

2000

Max bending speed(°/s)

1000

1000

1000

 Length accuracy(mm)

±1

±1

±1.5

 Angle accuracy(°)

±1

±1

±1

Bending center height from ground(mm)(mm)

1120

1120

1180

Total installed capacity(kw)

25

25

40

Dimensions of machine(mm)

3660x1600x2250

3660x1600x2250

4300x1800x2600

Weight of machine(kg)

3500

3500

5000

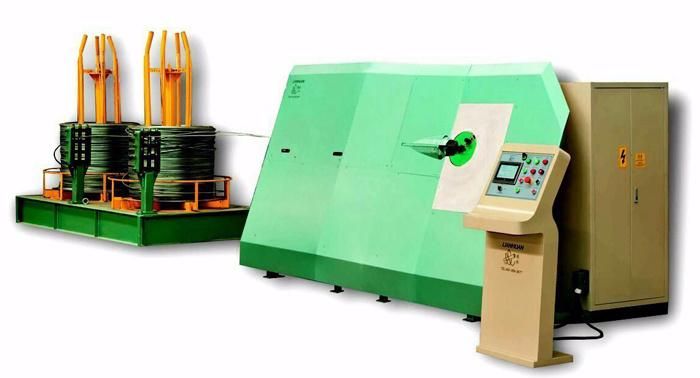

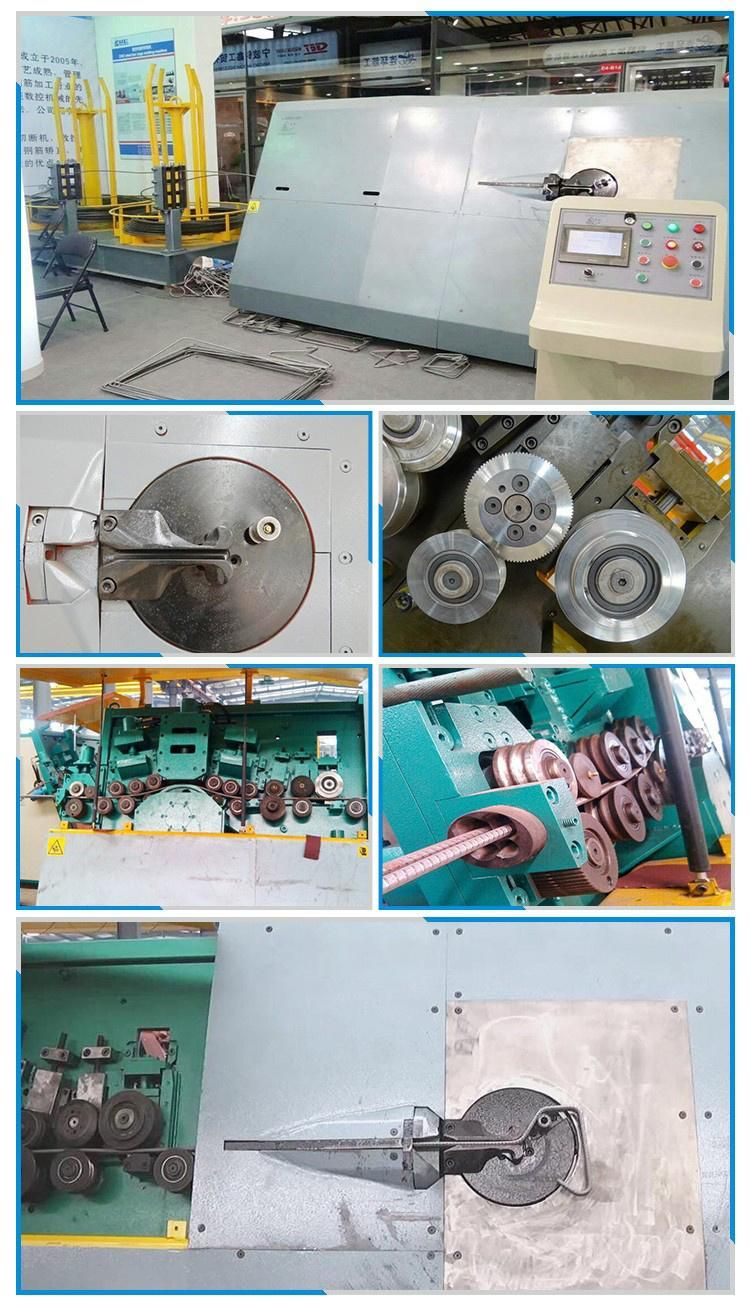

Automatic rebar stirrup bender machine factory equipped with imported PLC system and servo motor, which
can perform steel bar straightening, sizing, bending process and cutting etc. For the machine, the max bending
diameter of steel bar is 12mm, it also can transfer steel bar to many types of geometrical shapes.
The stirrup benders are extensively used in construction, large-scale reinforcing bar process factories etc.

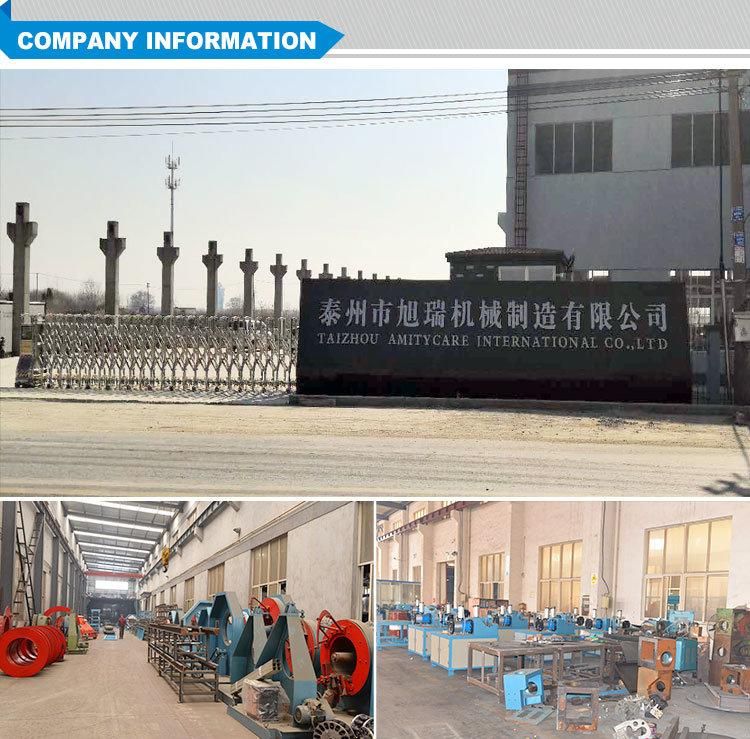

Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui machinery
manufacturing co;, all abroad (overseas) tasks and international businesswill be undertaken by "amitycare ".

We are manufacturers of cage welding machine(concrete pile,pole,pipe )centrifugal spinning machine
,concrete mould(pile ,pole,pipe) ,ring bending machine,heading machine ,endplate, ,tension jack
for pre-stress .feeding machine for different capacity welding machine ,steel wire Processing machine etc.

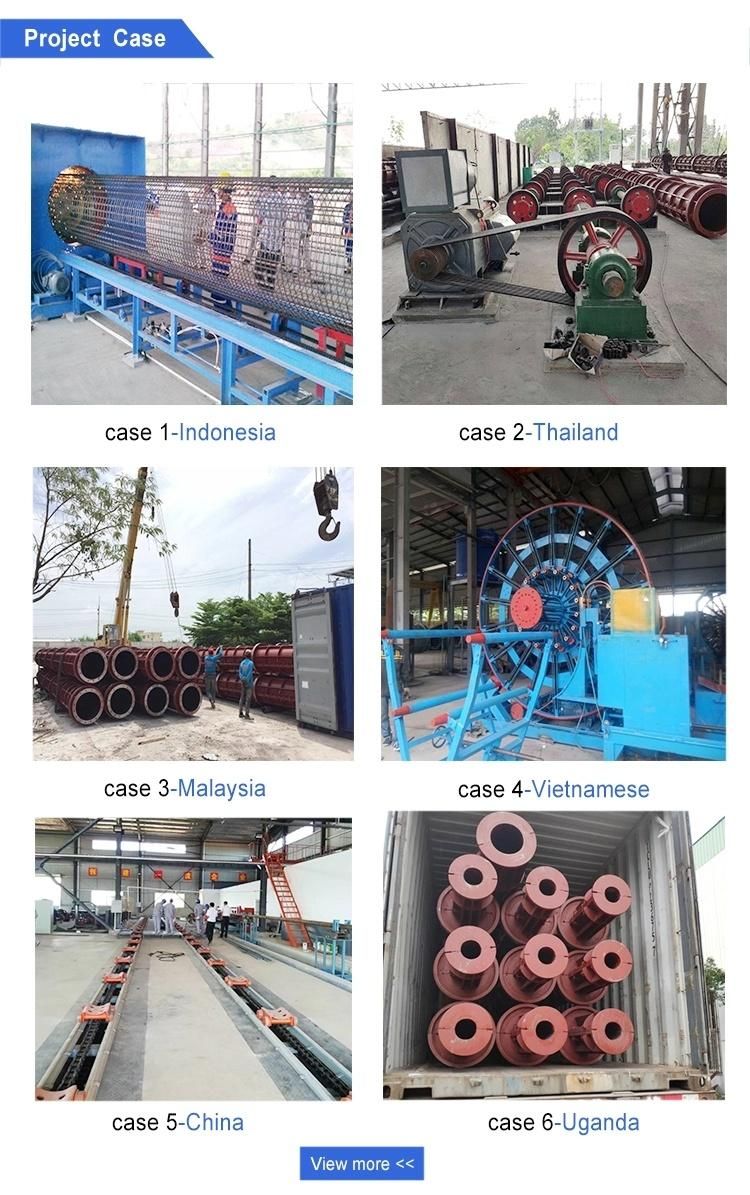

we also can supply setting up a new factory full line service . We have already exported various kinds of
concrete pile , pole and pipe concern making machines to overseas countries and regions such as indonesia,
parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
