• Model NO.：W11-6x3200 W11-12x3000 W11-40x2000
• Type：Manual Bending Machine
• Max. thickness：40mm
• motor：45kw
• Weight：45kgs
• packing size：640X230X280cm
• Transport Package：Plywood Case
• Specification：CE SGS ISO9001
• Trademark：HOTON
• Origin：Shandong, China
• HS Code：84622990
• Production Capacity：20 PCS,Month

Basic Info.

Model NO. W11-6x3200 W11-12x3000 W11-40x2000 Type Manual Bending Machine Max. thickness 40mm motor 45kw Weight 45kgs packing size 640X230X280cm Transport Package Plywood Case Specification CE SGS ISO9001 Trademark HOTON Origin Shandong, China HS Code 84622990 Production Capacity 20 PCS/Month

Product Description

MECHANICAL TYPE THREE ROLLER ROLLING AND BENDING MACHINE FROM HOTON MACHINERY
This machine structure pattern three roller symmetrical type, the roller in two central symmetrical
Position under the roller moves vertically through the screw worm and silk mother, The two lower
Rollers rotates through the gear reducer output and lower rollers Gear mesh, to provide torque for
The roll sheet. The machine disadvantage is that end plate bending requires the use of other devices.
PARAMETER OF GOODS

Model	Max. thickness	Max. width	Bending speed	Workpiece Min. Dia.	Top roller Dia	Bottom roller Dia.	Dis. bottom rollers	Main motor	Net weight (About)
W11-4*3000	4mm	3000mm	5m/min	450mm	140mm	160mm	220mm	5.5kw	3200kgs
W11-6*2000	6mm	2000mm	5m/min	430mm	170mm	170mm	220mm	5.5kw	2890kgs
W11-6*2500	6mm	2500mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	3200kgs
W11-6*3000	6mm	3000mm	4m/min	600mm	240mm	190mm	280mm	7.5kw	4500kgs
W11-8*2000	8mm	2000mm	5m/min	480mm	190mm	170mm	220mm	5.5kw	3300kgs
W11-8*2500	8mm	2500mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
W11-8*3000	8mm	3000mm	4m/min	600mm	240mm	180mm	280mm	11kw	5200kgs
W11-10*2000	10mm	2000mm	4m/min	550mm	220mm	170mm	250mm	7.5kw	4100kgs
W11-10*3000	10mm	3000mm	4m/min	650mm	260mm	220mm	340mm	11kw	5800kgs
W11-12*2000	12mm	2000mm	4m/min	600mm	240mm	180mm	280mm	7.5kw	4800kgs
W11-12*2500	12mm	2500mm	4m/min	650mm	260mm	220mm	320mm	11kw	5800kgs
W11-12*3000	12mm	3000mm	4m/min	700mm	280mm	240mm	360mm	15kw	8000kgs
W11-16*1500	16mm	1500mm	5m/min	600mm	240mm	180mm	280mm	7.5kw	4200kgs
W11-16*2000	16mm	2000mm	4m/min	650mm	260mm	220mm	320mm	11kw	5050kgs
W11-16*2500	16mm	2500mm	4m/min	700mm	280mm	240mm	360mm	15kw	6500kgs
W11-16*3200	16mm	3200mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
W11-20*2000	20mm	2000mm	4m/min	700mm	280mm	240mm	360mm	11kw	6450kgs
W11-20*2500	20mm	2500mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8500kgs
W11-20*3000	20mm	3000mm	4m/min	930mm	370mm	280mm	440mm	22kw	11500kgs
W11-25*2000	25mm	2000mm	4m/min	850mm	340mm	280mm	440mm	18.5kw	8400kgs
W11-25*2500	25mm	2500mm	4m/min	930mm	370mm	280mm	480mm	22kw	12500kgs
W11-30*2000	30mm	2000mm	4m/min	930mm	370mm	280mm	480mm	22kw	12000kgs

Contact Us:

Andy Wang  TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com

Company Profile:

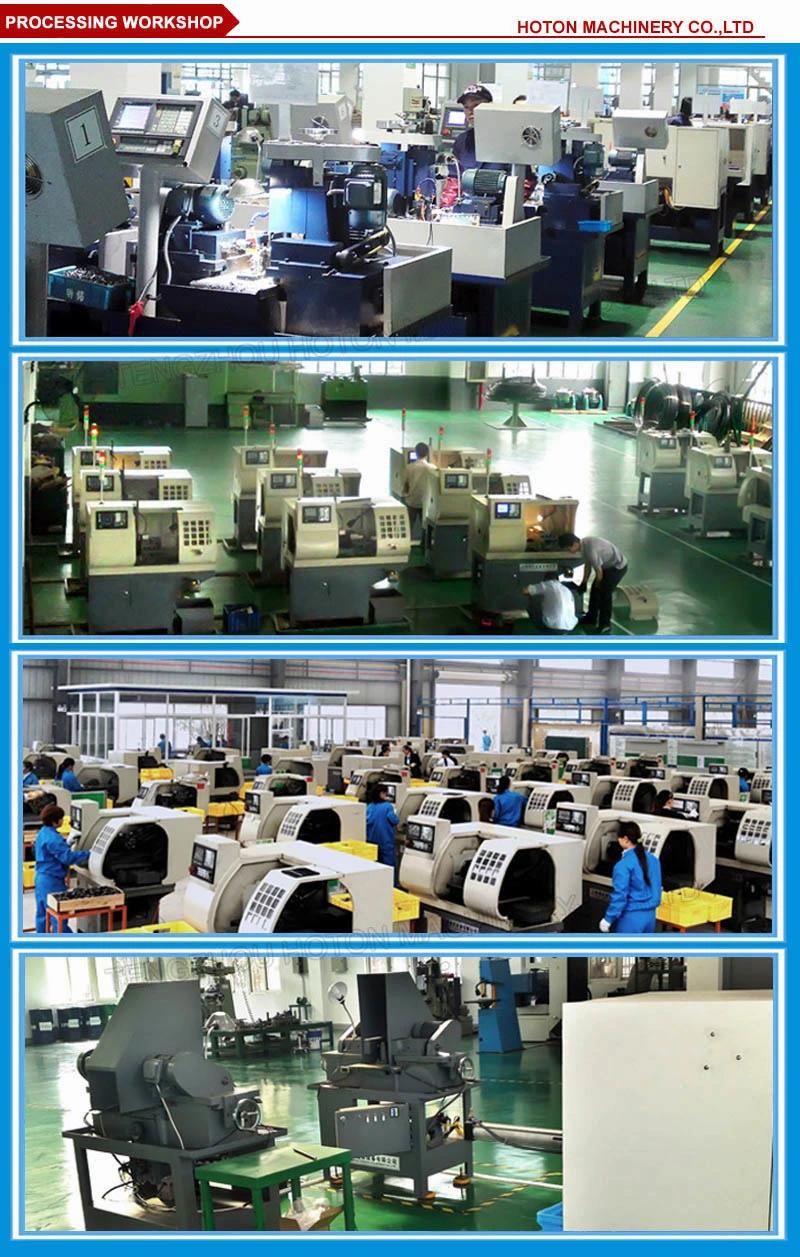

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.

The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.

Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills.
