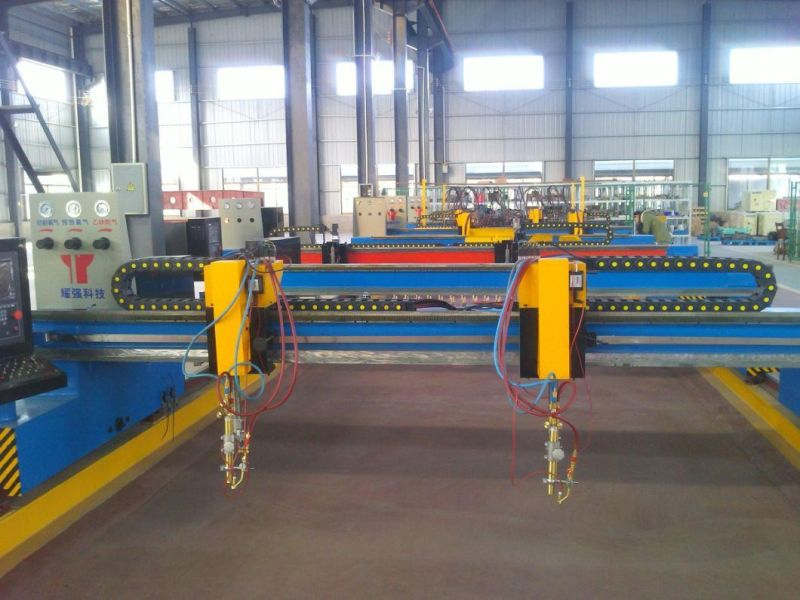

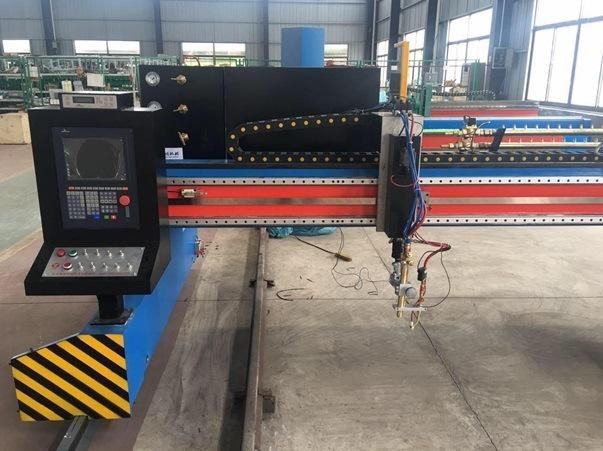

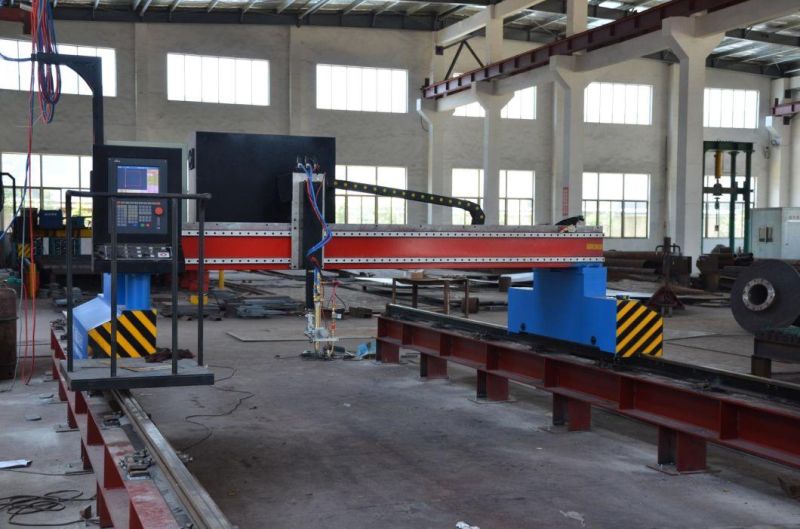

Multi Heads Steel Plate/Ironworker Plasma Cutting Machine
Dongtai Yaoqiang Welding Facture Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Control：Automatic
- Application：Metal
- Connected Shaft Number：4-Shaft
- Style：Gantry
Base Info
- Model NO.：CNCI & CNCII
- Type：CNC
- Factory Location：Dongtai, Jiangsu
- Company Type：SGS Audited Manufacturer
- Work-Piece Type：Ss, Carbon Steel, Alloy Steel Plate
- Cutting Method：Thermal Cutting, Hot Cutting
- Cutting Accuracy：0.5mm,M
- Drive System：Famours Brand Servo Motor and Planet Reducer
- CNC Control System：According to Customer Request
- Transport Package：Wooden Package or Simple Package
- Specification：ISO
- Trademark：Yao Qiang Technology
- Origin：Jiangsu, China
- HS Code：84569090
- Production Capacity：100 Sets,Year
Description
ModelDrive way Two rails' distance (mm) Effective cutting width (mm) Cutting thickness (mm) Cutting speed (mm/min) Max speed (mm/min) Cutting torch vertical route(mm) Flame cutting Plasma cutting Flame cutting Plasma cutting CNCI-2700 Single side 2700 1800 6-200 Depending on plasma power model, optionla 100-750 Depending on plasma power model, optional 6000 200 CNCI-3000 Single side 3000 2100 6000 200 CNCI-4000 Single side 4000 3100 12000 200 CNCII-4000 Double sides 4000 3100 12000 200 CNCII-5000 Double sides 5000 4100 12000 200 CNCII-6000 Double sides 6000 5100 12000 200 CNCII-7000 Double sides 7000 6100 12000 200 CNCII-8000 Double sides 8000 7100 12000 200 CNCII-9000 Double sides 9000 8100 12000 200
Supply range and units:
(1) the rack Assembly : vertical big horizontal car, straight cutting torch guide rails, pipes, steel, hanger, drag chains, steel bodies;
(2) cutting torch Assembly with 1 set of CNC cutting torch, cutting torch adjustment;

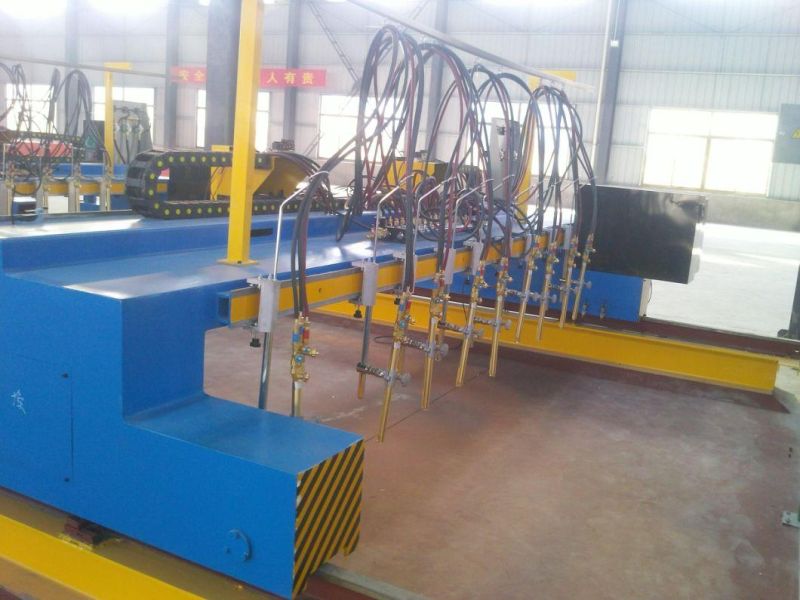

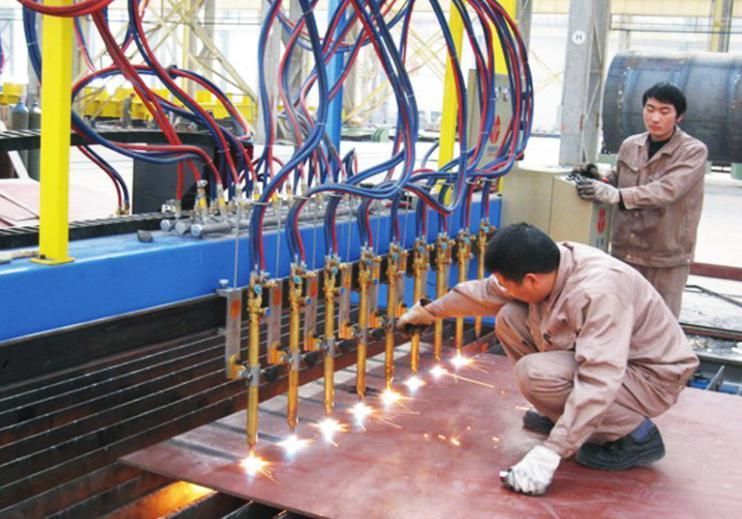

(3)straight strip cutting 10 groups
(4) drive assembly : servo motor, high precision gear boxes, mobile gear, gear, etc;

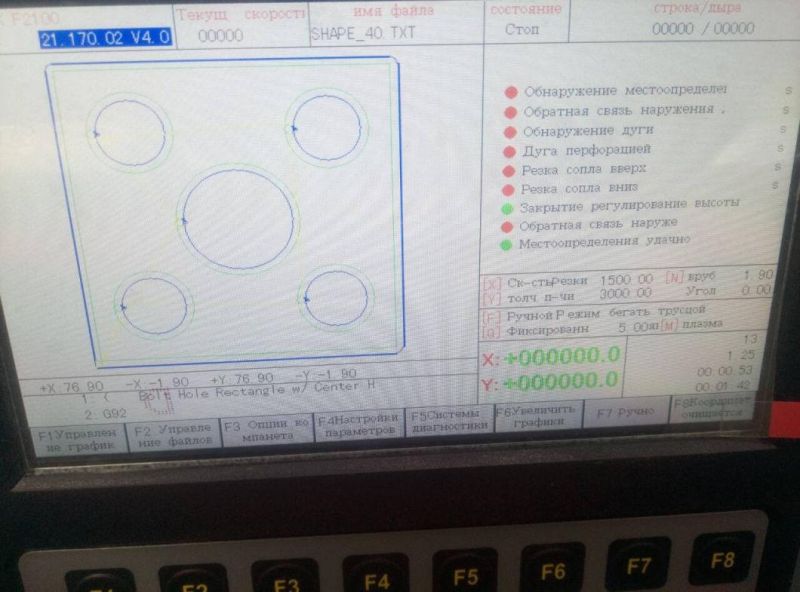

(5) electronic control system : CNC, CNC box, keyboard, electric control box;
(6) cable assembly includes: CUT160 Plasma cutting ,arc voltage high
(7) the Assembly of the gas source : total air supply hose and thread blocks;
(8) spare parts :
Cutting nozzle 0-1# total 2*11(22)
X axis&Y-axis travel gear *1
Temper-proof device 5
Push button switch 5 only
DC-24V Relay 2 only
4A Molten core- 3
Users make self-contained parts :
(1) the thread frame, rail base (supplier's drawings).
(2) Foundation (drawings).
(3) the anchor bolt (or bolts).

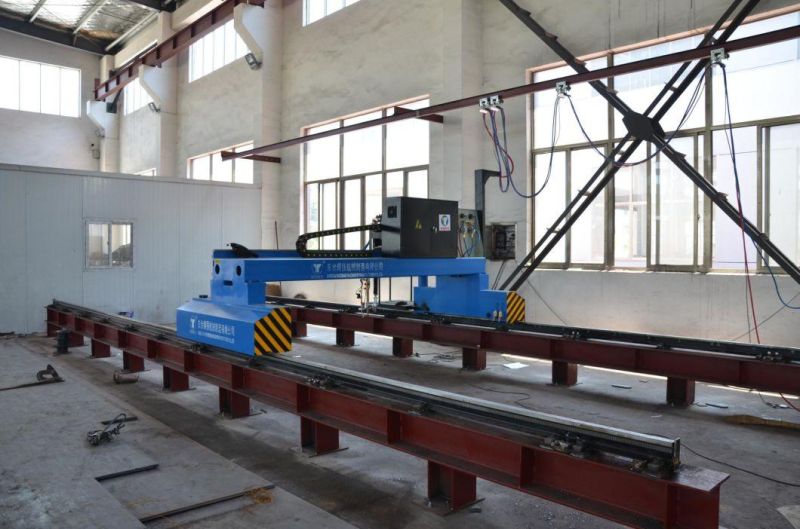

(4) the rail assembly :16mx2 (24kg/m,length according to actual need) Rails, rack, plate and adjust the pad and so on;
Supply range and units:
(1) the rack Assembly : vertical big horizontal car, straight cutting torch guide rails, pipes, steel, hanger, drag chains, steel bodies;
(2) cutting torch Assembly with 1 set of CNC cutting torch, cutting torch adjustment;
(3)straight strip cutting 10 groups
(4) drive assembly : servo motor, high precision gear boxes, mobile gear, gear, etc;
(5) electronic control system : CNC, CNC box, keyboard, electric control box;
(6) cable assembly includes: CUT160 Plasma cutting ,arc voltage high
(7) the Assembly of the gas source : total air supply hose and thread blocks;
(8) spare parts :
Cutting nozzle 0-1# total 2*11(22)
X axis&Y-axis travel gear *1
Temper-proof device 5
Push button switch 5 only
DC-24V Relay 2 only
4A Molten core- 3
Users make self-contained parts :
(1) the thread frame, rail base (supplier's drawings).
(2) Foundation (drawings).
(3) the anchor bolt (or bolts).
(4) the rail assembly :16mx2 (24kg/m,length according to actual need) Rails, rack, plate and adjust the pad and so on;
