• Model NO.：GT-WB-80-8A
• Suitable for：Carbon Steel, Stainless Steel
• Type：Cnc Bending Machine
• Transport Package：Standard Fumigated Wooden Case
• Specification：4200x1520x1600mm
• Trademark：WG
• Origin：China
• HS Code：8462299000
• Production Capacity：50000pieces,Year

Basic Info.

Model NO. GT-WB-80-8A Suitable for Carbon Steel, Stainless Steel Type Cnc Bending Machine Transport Package Standard Fumigated Wooden Case Specification 4200x1520x1600mm Trademark WG Origin China HS Code 8462299000 Production Capacity 50000pieces/Year

Product Description

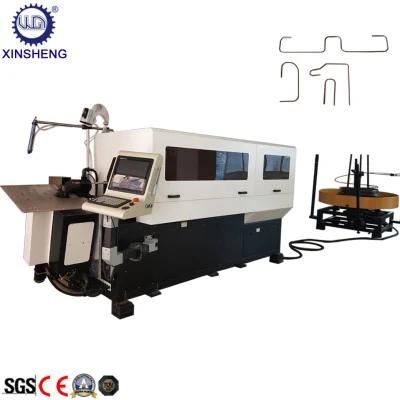

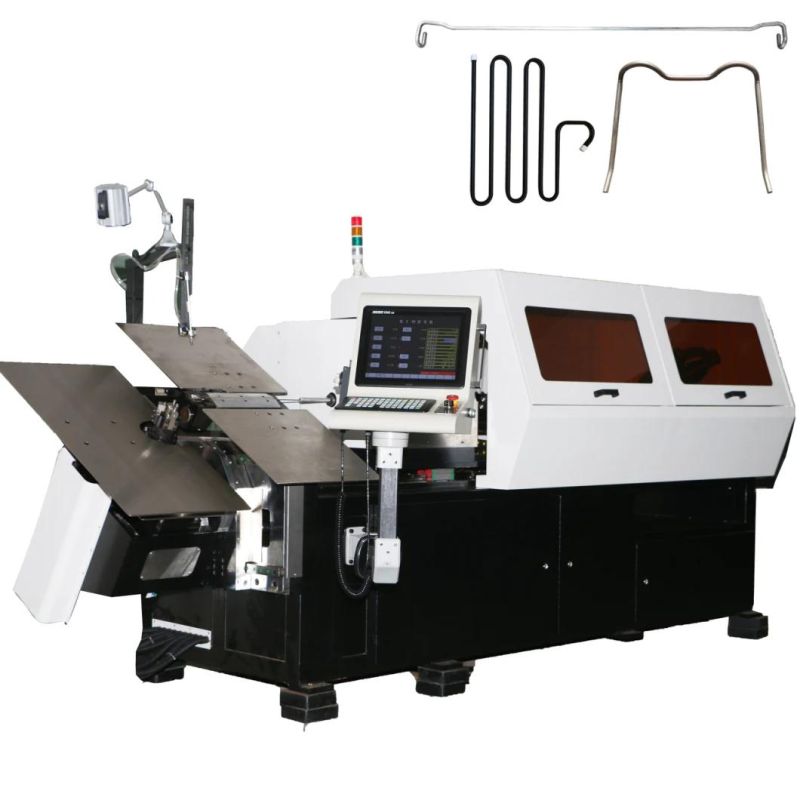

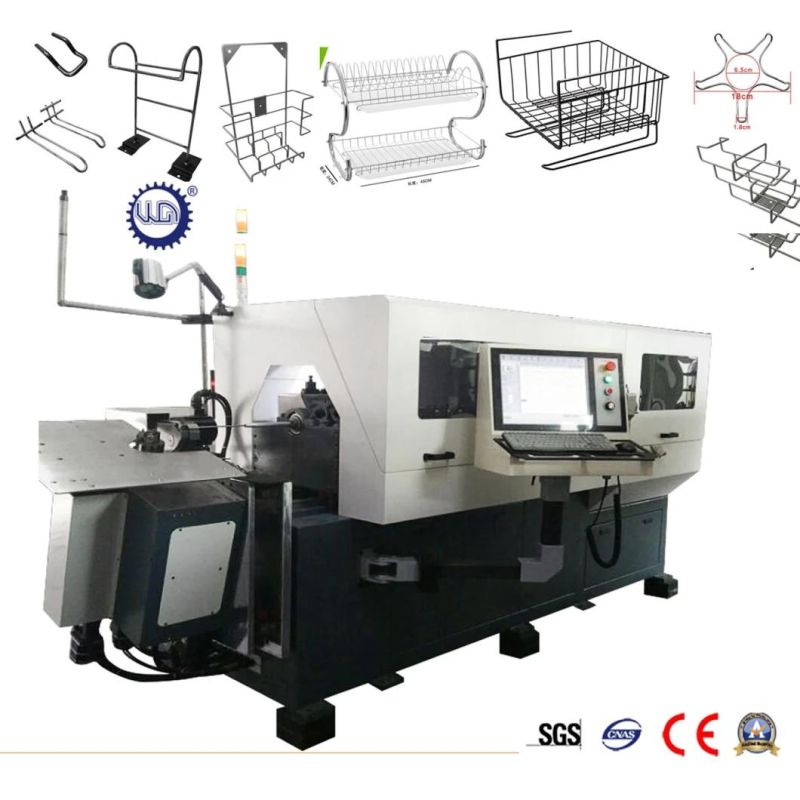

CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.

3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1)Auto Industry area       2)Metal wire industry
3)Display table and cargo shelf       4)Furniture and Kitchen
5)Hardware industry         6)Mattress, Sofa spring area
7)Architecture area      8)Hardware Artcraft

Model	GT-WB-80-8A
Wire size	3.0-8.0mm
Axis	8
wire feeding value         (mm)	Max.10000.00 Min.0.01
Feeding length number	3 pairs
Wire turning angle	Unlimited
Platform Lifting Height	+25-120mm
twisting head lift height	+20-180mm
left to right moving range	Left:100mm     Right:50mm
Feeding front and back moving range	Front:300mm    Back:100mm
Total output power of servo motors	25.8KW
machine size(mm)	4200x1520x1600
machine weight	3800.0(kg)
