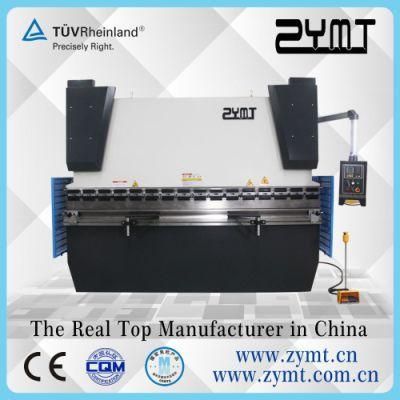

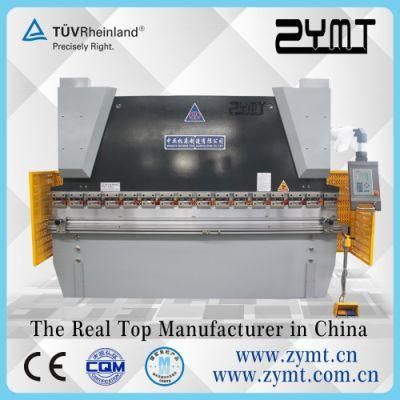

• Model NO.：WC67K-300T,3200
• Controller with Movable Arm：Yes
• Front and Back Protection Fence：Yes
• Backgauge with Ball Screw：Yes
• Emergency Button：Yes
• Main Motor：Siemens
• Pump：Sunny
• Controller：E21
• Ball Screw：Hiwin
• Transport Package：Plastic Cover
• Specification：CE, ISO, SGS
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462299000
• Production Capacity：3000 Sets,Year

TypeNominal force(KN)Worktable length(mm)Poles distance(mm)Throat depth(mm)Slider travel(mm)Max open (mm)Power (KN)WeightDimension (mm)40t/2200400220018502301003205.527502200*1200*190040t/2500400250018502301003205.530002500*1200*190050t/2500500250018502301003205.534002500*1200*200063 t/2500630250019002501003205.540002500*1300*221063 t/3200630320025602501003205.548003200*1300*221080 t/2500800250019903001003207.550002500*1400*230080t/3200800320025603201003507.560003200*1500*230080t/4000800400032003201003507.570004000*1500*2400100 t/25001000250019903201203507.560002500*1600*2400100t/32001000320026003201504007.568003200*1600*2600100 t/40001000400032003201504007.580004000*1600*2600125 t/32001250320026003201504001170003200*1600*2600125 t/40001250400032003201504001185004000*1600*2600160 t/320016003200258032020046011100003200*1700*2700160 t/400016004000290032020046011110004000*1700*2800160 t/500016005000390032020046011135005000*1900*3100160t/600016006000490032020046011185006300*1900*3200200t/320020003200248032020046011110003200*1950*2800200t/400020004000290032020046011125004000*1950*2800200t/500020005000390032020046011140005000*1950*3000200t/600020006000490032020046011200006000*1950*3300250t/320025003200245040025059018.5185003250*2000*3200250 t/400025004000290040025059018.5200004000*2000*3400250/500025005000390040025059018.5230005000*2000*3400250/600025006000490040025059018.5270006000*2000*3400300t/320030003200245040025059022205003200*2000*3450300t/400030004000290040025059022220004000*2000*3450300t/500030005000390040025059022250005000*2000*3450300t/600030006000490040025059022285006000*2000*3450400t/320040003200240040025059030225003200*2180*3400400t/400040004000290040025059030250004000*2180*3400400t/500040005000390040025059030290005000*2180*3500400t/600040006000490040025059030340006000*2180*3800500t/500050005000390040025059045420005050*3500*3700500t/600050006000490040032059045540006050*3500*3700600t/500060004000290040032059055440004050*4500*3700600t/600060006000490040032059055600006050*4500*3700



Optional Controller
E200
LCD display 240X128;The pace of programming a program run, a location automatically;
Automatically to avoid the interference; Single positioning, eliminating gaps of the screw transmission;
Metric and inches system transformation; Position compensation; Power-failure memory function ;Bending count; Reference point for the memory available for search and electricity.

DA41
Servo control technology; 47"high light liquid crystal display screen with multi languages interface including Chinese.
Tooling parameters setting, bending angle programming;
About 100 programs are stored, and there are 25 operations in each program.
The escaped material is programmable, the processing quantity is accountable, there is memory to power off, and conversion between metric system and inches system.

E210
5.6"LCD color display, Chinese and English menu to choose;
With the point programming, can automatically calculate the bending angle bending depth;
100programs to provide storage space, the upper punch and lower die can be selected;
Automatic retraction is available to avoid possible impact between a work piece and backguage, ensure required processing precision.
Memories position in case of power off, to provide site protection of parameters, positions and programs;
All I/O ports can be configured through the pages, and has a self-test function.

HT072
High luminosity LED display having 6 digits plus sign for position, 2 digits for cycles and programs;
Possibility to save up to 99 programs composed of 20 cycles, each cycle can count 65000 repetitions at maximum;
Datas and programs are saved in a flash memory without floating battery;
IP65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.
External connection through extractable terminals.

P40
Control 1-2 axes;
Analog output or digital transmission output (one to three speed)
16 programmable digital input/output (optional 8 I/O)
To program memory 1000 program sentences;
To operation board can realize the actual value, the target value, number of input;
Through the buttons can also be given target value and the pieces and start positioning operation.

E21
Positioning control of back gauge.
Intelligent positioning control.
One-side and two-side positioning which eliminates spindle clearance effectively.
Retract functions.
Automatic reference searching.
One-key parameter backup and restore.
Fast position indexing.
40 programs storage space, each program has 25 steps.
Power-off protection.

E10
X axis and Y axis position display;
Resolution:0.01mm or 0.001 inch;
Holding time setting;
One side positioning indication;
Software limitation;
Power-off memorization.

Packaging & Shipping

(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.

Our Services
1. Shearing blades and accessories-Customized to your specifications.In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.

2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.

3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand)
