- Model NO.:WC67K-100T,3200
- Backgauge Motor:Detong
- Pump:Sunny
- Controller:E21
- Mould:Guoling
- Ball Screw:Hiwin
- Footswitch:Karcon
- Electrics:Schneider
- Transport Package:Plastic Cover
- Specification:CE
- Trademark:ZYMT
- Origin:China
- HS Code:8462299000
- Production Capacity:3000 Sets,Year
No. | Parts Name | Brand | Brand Location |
1 | Main motor | Siemens | Germany |
2 | Backgauge motor | Jiahuang | Hangzhou China |
3 | Electrics | Schneider | France |
4 | Oil Cylinder | Yuhua | Maanshan China |
5 | Seal ring | Nok | Japan |
6 | Hydraulic valve | Rexroth | Germany |
7 | Pump | Hangfa | Shanghai China |
8 | Controller | E21S | Nanjing China |
9 | Blades | Jinshan | Shanghai China |
10 | Pipe connector | EMB | Germany |
11 | Footswitch | Karcon | South Korea |
12 | Ball screw | Hiwin | Taiwan |
13 | Controller with mobile arm | YES |
14 | Front and back protection fence | YES |
15 | Backgauge with ball screw | YES |
16 | Backgauge travel | 600MM |
17 | Shadow line light | YES |
18 | Emergency button | YES |
QC12K Series Technical Parameters:
Type | Cutting Thickness (mm) | Cutting Length(mm) | Cutting Angle(°) | Material Strength (KN/CM) | Stroke (times/min) | Power(kw) | Weight(kg) | Dimension(mm) |
4×2500 | 4 | 2500 | 1°30' | ≤450 | 10 | 5.5 | 3800 | 3040*1610*1620 |
4×3200 | 4 | 3200 | 1°30' | ≤450 | 10 | 5.5 | 5000 | 3840*1610*1620 |
4×4000 | 4 | 4000 | 1°30' | ≤450 | 8 | 5.5 | 6500 | 4600*1700*1700 |
4×6000 | 4 | 6000 | 1°30' | ≤450 | 5 | 7.5 | 11000 | 6460*2100*3200 |
6×2500 | 6 | 2500 | 1°30' | ≤450 | 10 | 7.5 | 5000 | 3040*1610*1620 |
6×3200 | 6 | 3200 | 1°30' | ≤450 | 9 | 7.5 | 6000 | 3840*1610*1620 |
6×4000 | 6 | 4000 | 1°30' | ≤450 | 8 | 7.5 | 8000 | 4620*1750*1700 |
6×5000 | 6 | 5000 | 1°30' | ≤450 | 6 | 7.5 | 10500 | 5400*1750*1700 |
6×6000 | 6 | 6000 | 1°30' | ≤450 | 5 | 11 | 16500 | 6480*2100*2300 |
8×2500 | 8 | 2500 | 1°30' | ≤450 | 10 | 7.5 | 6000 | 3040*1700*1700 |
8×3200 | 8 | 3200 | 1°30' | ≤450 | 8 | 7.5 | 7200 | 3860*1700*1700 |
8×4000 | 8 | 4000 | 1°30' | ≤450 | 8 | 7.5 | 8800 | 4640*1700*1700 |
8×5000 | 8 | 5000 | 1°30' | ≤450 | 8 | 7.5 | 11500 | 5400*2400*2000 |
8×6000 | 8 | 6000 | 1°30' | ≤450 | 8 | 11 | 18000 | 6480*2100*2350 |
10×2500 | 10 | 2500 | 1°30' | ≤450 | 9 | 11 | 7300 | 3040*1700*1700 |
10×3200 | 10 | 3200 | 1°30' | ≤450 | 9 | 11 | 8000 | 3860*1700*1700 |
10×4000 | 10 | 4000 | 1°30' | ≤450 | 8 | 11 | 12000 | 4650*2100*2000 |
10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 24000 | 6500*2100*2300 |
12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 9000 | 3140*2150*2000 |
12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 10800 | 3880*2150*2000 |
12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 13000 | 4680*2150*2000 |
12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 16000 | 5900*2150*2000 |
12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 29000 | 6900*2600*2700 |
12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 46500 | 9000*3500*3500 |
16×2500 | 16 | 2500 | 2°30' | ≤450 | 9 | 18.5 | 11000 | 3140*2150*2000 |
16×3200 | 16 | 3200 | 2°30' | ≤450 | 8 | 18.5 | 13000 | 3880*2150*2000 |
16×4000 | 16 | 4000 | 2°30' | ≤450 | 8 | 18.5 | 16300 | 4650*2150*2200 |
16×5000 | 16 | 5000 | 2°30' | ≤450 | 6 | 18.5 | 20000 | 5900*2600*2700 |
16×6000 | 16 | 6000 | 2°30' | ≤450 | 5 | 22 | 36000 | 6900*2700*2700 |
20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 15500 | 3440*2300*2500 |
20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 18000 | 4150*2350*2700 |
20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 21000 | 4850*2350*2700 |
25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 19000 | 3200*2700*2900 |
25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 23000 | 4200*2700*2900 |
25×4000 | 25 | 4000 | 3° | ≤450 | 5 | 37 | 27000 | 3850*2700*2900 |
30×2500 | 30 | 2500 | 3° | ≤450 | 5 | 37 | 23500 | 3300*2900*2900 |
30×3200 | 30 | 3200 | 3° | ≤450 | 5 | 37 | 27500 | 4200*2900*2900 |

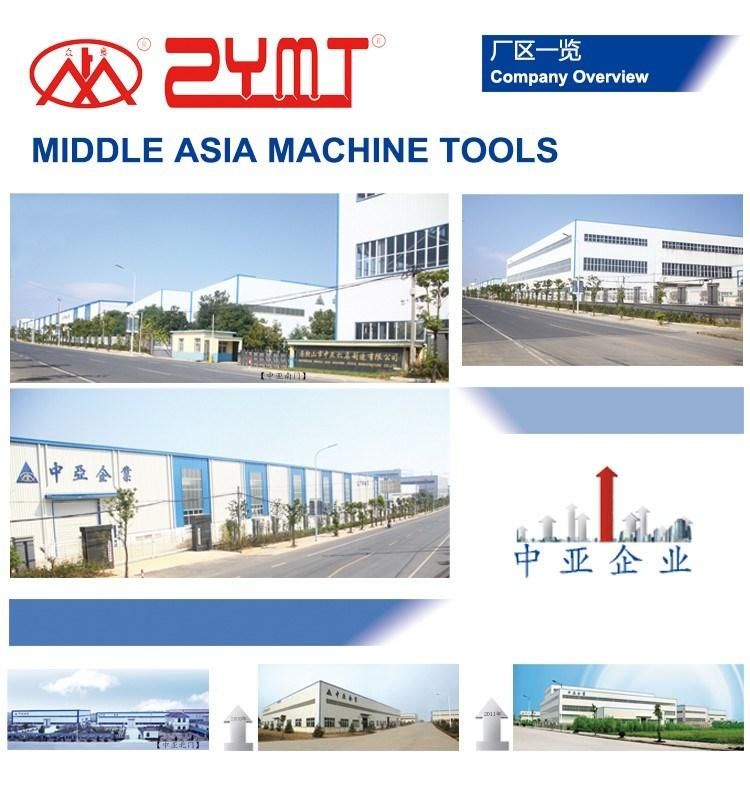

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.

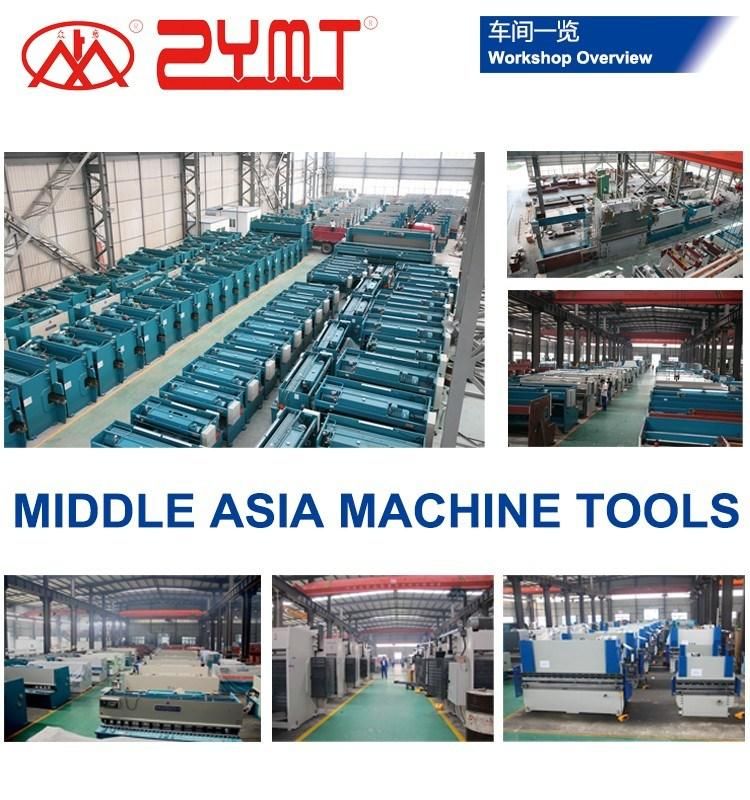

We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
Packing&Delivery:
With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.
Our Services:
1.24 hours telephone line is available for any question.
2.Experienced service technician team is available.
3.Support in hard work solution.
