• Model NO.：UG-1625V
• Condition：New
• Control：Automatic
• Application：Paper, Plastic, Leather, Fabric, Foam, Sponge, Kt Board, PU, EVA, XPE
• Power Source：Electric
• Layout：Horizontal
• Working Area：1600*2500mm( X,Y)
• Working Table：Fixed Aluminum Adsorption Vacuum Working Table
• Guide Rail：Linear Square Guide Rail ( PMI, Taiwan)
• Transmission：Helical Rack &Pinion for X Y -Axis,
• Driving Mode：Servo Motor and Drivers, Panasonic, Japan
• Cutting Head：Vibration Knife
• Cutting Speed：0-0-1,500mm,S(According to Different Cutting Mater
• Control System：Uida Rdd6584G(Ec) Touch Screen Control System
• Vacuum Pump：Air Cooling, 2 Sets, 7.5kw+2.2kw
• Graphic Format Supported：Plt, Dxf, Ai, etc.
• Transport Package：Plywood Case
• Specification：3400*2340*1350mm, 800kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：84659900
• Production Capacity：200 Sets,Month
• Package size per unit product：360.00cm * 225.00cm * 155.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. UG-1625V Condition New Control Automatic Application Paper, Plastic, Leather, Fabric, Foam, Sponge, Kt Board, PU, EVA, XPE Power Source Electric Layout Horizontal Working Area 1600*2500mm( X/Y) Working Table Fixed Aluminum Adsorption Vacuum Working Table Guide Rail Linear Square Guide Rail ( PMI, Taiwan) Transmission Helical Rack &Pinion for X Y -Axis, Driving Mode Servo Motor and Drivers, Panasonic, Japan Cutting Head Vibration Knife Cutting Speed 0-0-1,500mm/S(According to Different Cutting Mater Control System Uida Rdd6584G(Ec) Touch Screen Control System Vacuum Pump Air Cooling, 2 Sets, 7.5kw+2.2kw Graphic Format Supported Plt, Dxf, Ai, etc. Transport Package Plywood Case Specification 3400*2340*1350mm, 800kgs Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 84659900 Production Capacity 200 Sets/Month

Packaging & Delivery

Package size per unit product 360.00cm * 225.00cm * 155.00cm Gross weight per unit product 1000.000kg

Product Description

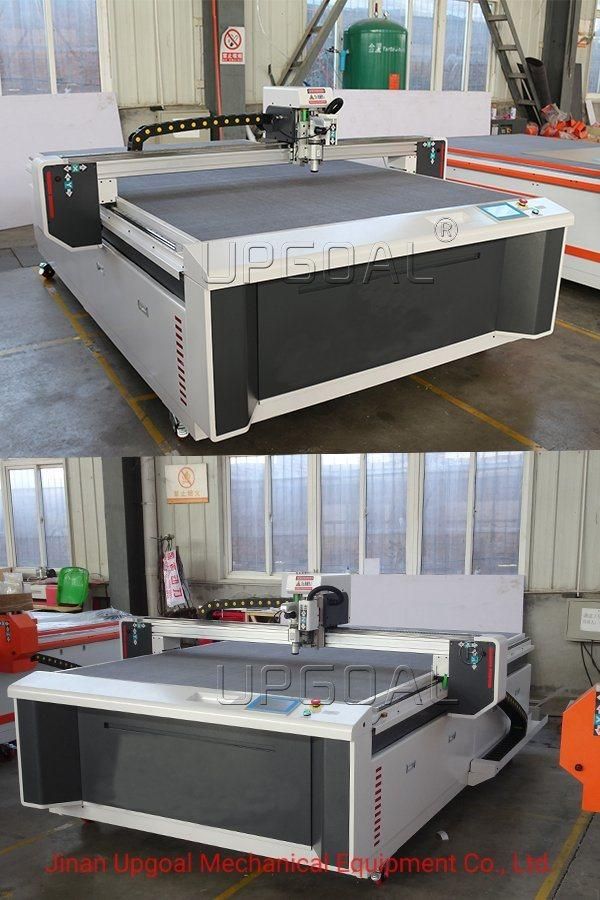

Hot Sale China CNC Oscillating Knife /Vibration Knife Cutting Machine 1600*2500mm

Application

UPGOAL cnc vibration knife cutting machine is widely used in cutting paper materials, automotive interior processing industry, used in the cutting processing of car seat covers, seat cushions, steering wheel grips, leather processing industry, leather cutting and punching, household fabrics, cutting of new technology materials and other industries.



Cutting materials

Cardboard, corrugated paper, honeycomb paper, leather, glass fiber, carbon fiber, fabric, self-adhesive, film, foam board, acrylic board, rubber, gasket material, clothing cloth, footwear material, luggage material, non-woven fabric, carpet, Sponge, KT board, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composite materials.



Features

1. The ultra-high frequency vibration knife cutting technology eliminates the irregularities of manual cutting, the limitation of the accuracy of the punching machine, and the scorching odor of the laser cutting machine. High efficiency and fast speed make leather and PU cutting become artistic enjoyment.

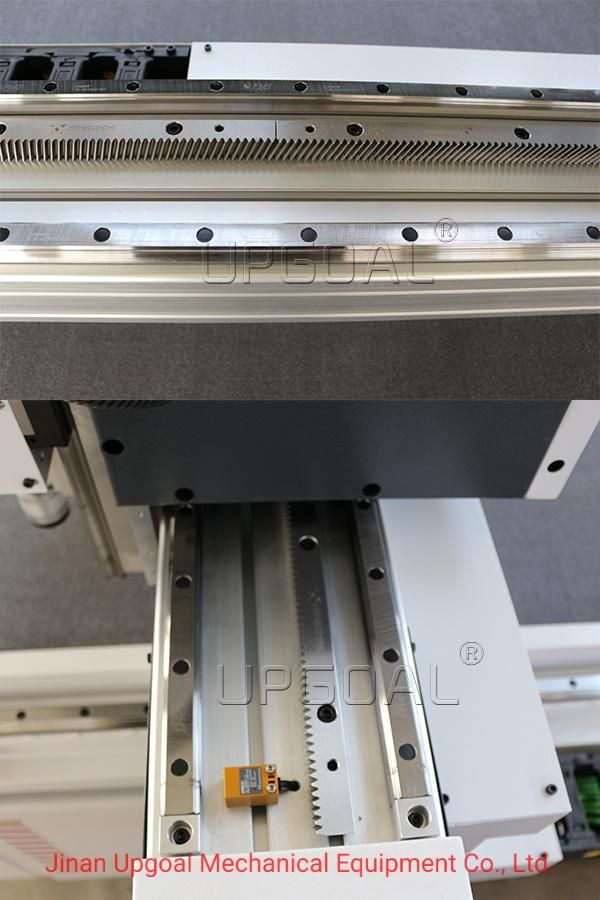

2. Imported PMI, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, and more durable.

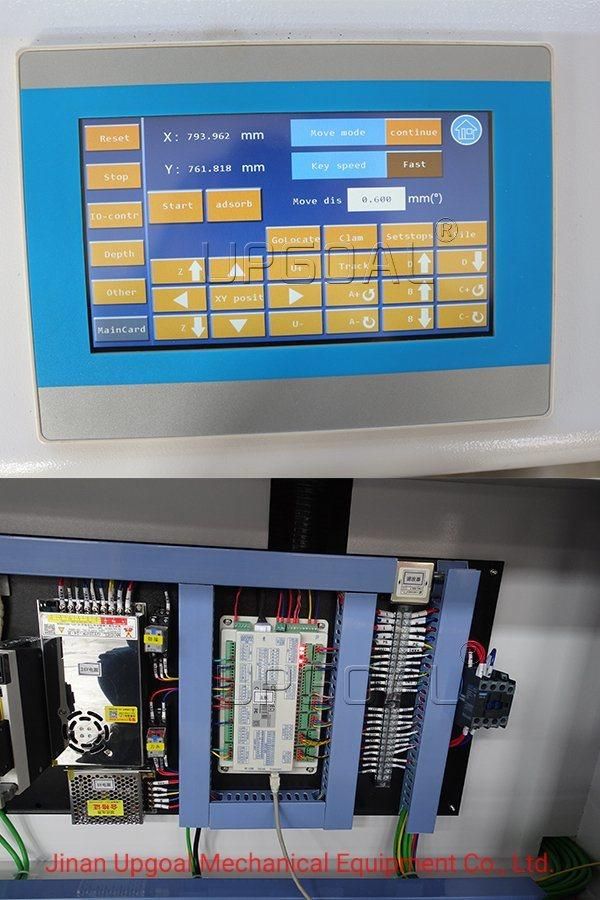

3. Adopted famous RuiDa RDD6584G touch screen control system supports both USB and Ethernet connection, has a knife cutting controller with tool direction following control function. It integrates the processing of tools such as vibrating cutters, round cutters, milling cutters, and pressing wheels. It also integrates feeding, circular punching, and V-shaped special punching. Hole, pen processing, red light positioning and a series of functions.

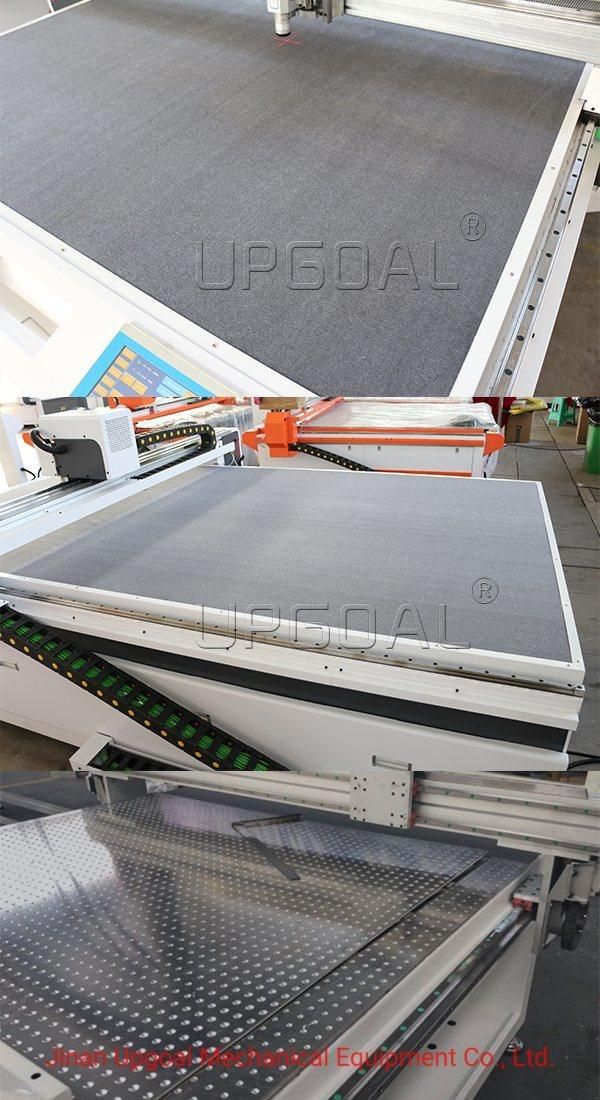

4. Whole cast aluminum vacuum table, ensuring the machine stablity.

5. Equipped with 2 sets 7.5KW+2.2KW high pressure air cooling turbofan, high adsorption ability.

6. Japan Yaskawa servo motor and driver for XYZ-axis, ensuring the processing speed & precision.

7. The cutting efficiency is high, the surface is smooth and flat, which greatly saves costs

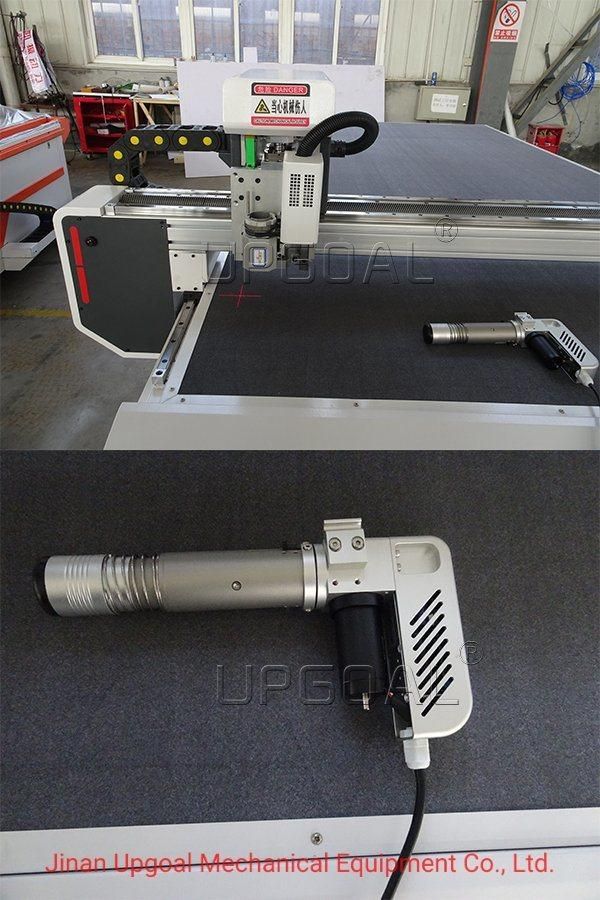

8. A variety of tool heads(Vibrating knife, high-power round knife, punching knife, pneumatic knife, multi-layer knife, drag knife, half cutter, bevel cutter, milling cutter, etc. all can be installed), quick replacement to adapt to different materials

9. Convenient output, high-speed cutting, rapid prototyping, intelligent typesetting, saving materials

10.Supports multiple formats such as DXF, PLT, HPGl, etc., without cutting tools, saving manpower and material resources, and simplifying the work process.

11. Improve the cutting speed and efficiency, and provide strong support for high-speed cutting of the electric vibrating knife with a frequency of up to 25,000 times/min, up to 1000mm/s.

12. Smooth operation, fine and smooth incision, powerful function, can effectively solve various problems such as proofing.

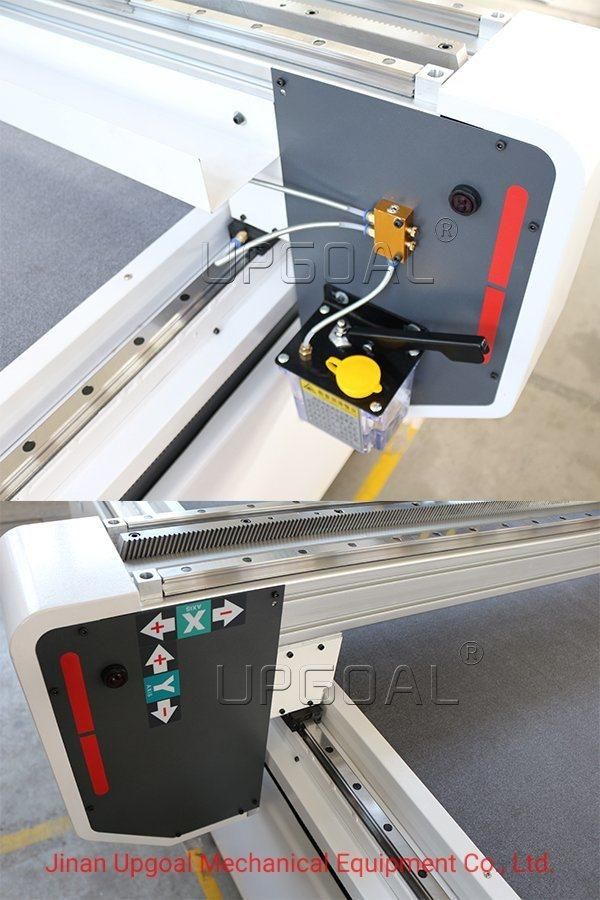

13. Semi-auto lubrication system more convenient for maintenance.
14. Anti-collisiion device, ensuring the safe operation.

Technical Parameters

Model	UG-1625V
Effective cutting area	1600*2500mm
Working table	Fixed aluminum adsorption vacuum working table  with adsorption felt
Material fixed method	Vacuum suction system
Cutting head	Vibration knife
Control system	RuiDa RDD6584G(EC) touch screen control system
Cutting software	RuiDa VcutWorks( supports WLAN cable & USB cable)
Cutting speed	0-1,500mm/s(according to different cutting materials)
Cutting thickness	≤40mm
Cutting accuracy	≤0.1mm
Drive system	Servo motors and drivers(Panasonic, Japan)
Guide rail	PMI, Taiwan, linear square guide rail
Transmission system	Helical rack and pinion transmission
Vacuum pump	Air cooling, 2 sets, 7.5KW+2.2KW
Safety device	Anti-collision system
Graphic format supported	PLT, DXF, AI, etc.
Compatible	CORELDRAW, PHOTOSHOP, AUTOCAD, TAJIMA, etc.
Voltage	AC220V ±10%,50/60Hz, single phase or AC380V ±10%,50/60Hz, three phases
Machine size	3400*2340*1350mm
Net weight	800kgs
Gross weight	900kgs

Reference Sample Photos

Reference Working Videos


https://youtu.be/LlcSYno7iuo

https://youtu.be/UogHVNJMZfs

https://youtu.be/214pZhfgA8g


Accessories & Packing & Delivery



For more information, just feel free to contact us!

     Jinan Upgoal Mechanical Equipment Co.,Ltd


     CNC Router/Laser Engraving Cutting Marking Machine/Plasma Cutting Machine
