Automatic 3D Channel Letter Bending Bender Machine for LED Signage
Yitai Packing-Materi Accessories (Kunshan) Co., Ltd.- After-sales Service：Available
- Waterproof Rating：IPX-6
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, CE
- Automation：Automatic
Base Info
- Model NO.：JDA05
- Suitable for：Plastic, Copper, Aluminum, Alloy, Stainless Steel
- Type：Cnc Bending Machine
- Name：Profile Signage Channel Letter Bending Machine
- 3D CNC Channel Letter Bending Slotting F：R6
- Servo Configuration：Four Japan FUJI Servo
- Feeding System：Overall Casting Type and Mechanical Arm
- Accuracy：0.1mm
- Air Supply：0.6m3,Min
- Weight：480kg
- Power：AC 220V 50Hz 3.5kw
- Bending System：Overall Casting Type and Double Blade Alternative
- Slotting System：Overall Casting Type Plane Cutter and Milling Cutt
- Material Width：10-130mm
- Transport Package：Carton
- Specification：L2478*W1050*H1583.1
- Trademark：YT
- Origin：China
- Production Capacity：5000sets,Year
Description
Basic Info.
Model NO. JDA05 Suitable for Plastic, Copper, Aluminum, Alloy, Stainless Steel Type Cnc Bending Machine Name Profile Signage Channel Letter Bending Machine 3D CNC Channel Letter Bending Slotting F R6 Servo Configuration Four Japan FUJI Servo Feeding System Overall Casting Type and Mechanical Arm Accuracy 0.1mm Air Supply 0.6m3/Min Weight 480kg Power AC 220V 50Hz 3.5kw Bending System Overall Casting Type and Double Blade Alternative Slotting System Overall Casting Type Plane Cutter and Milling Cutt Material Width 10-130mm Transport Package Carton Specification L2478*W1050*H1583.1 Trademark YT Origin China Production Capacity 5000sets/YearProduct Description

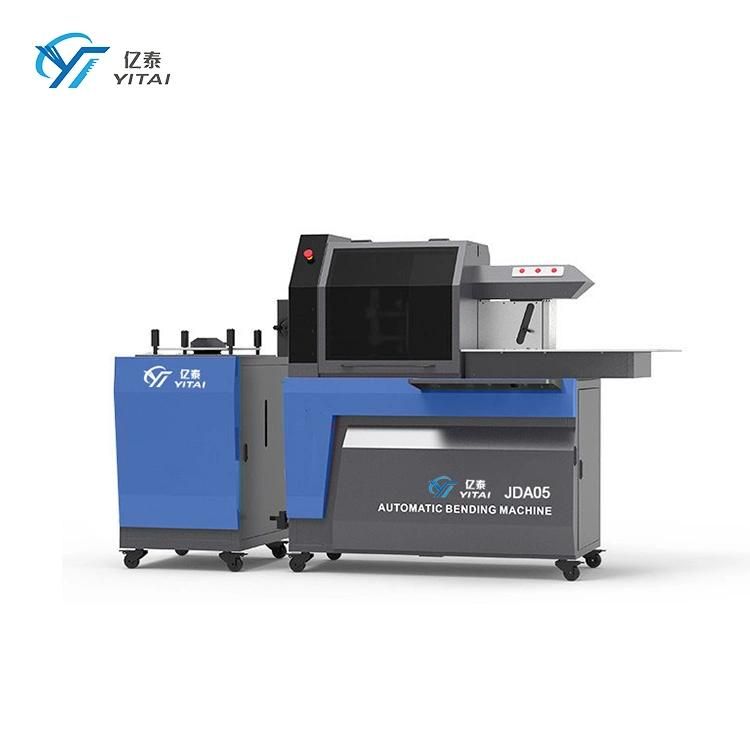

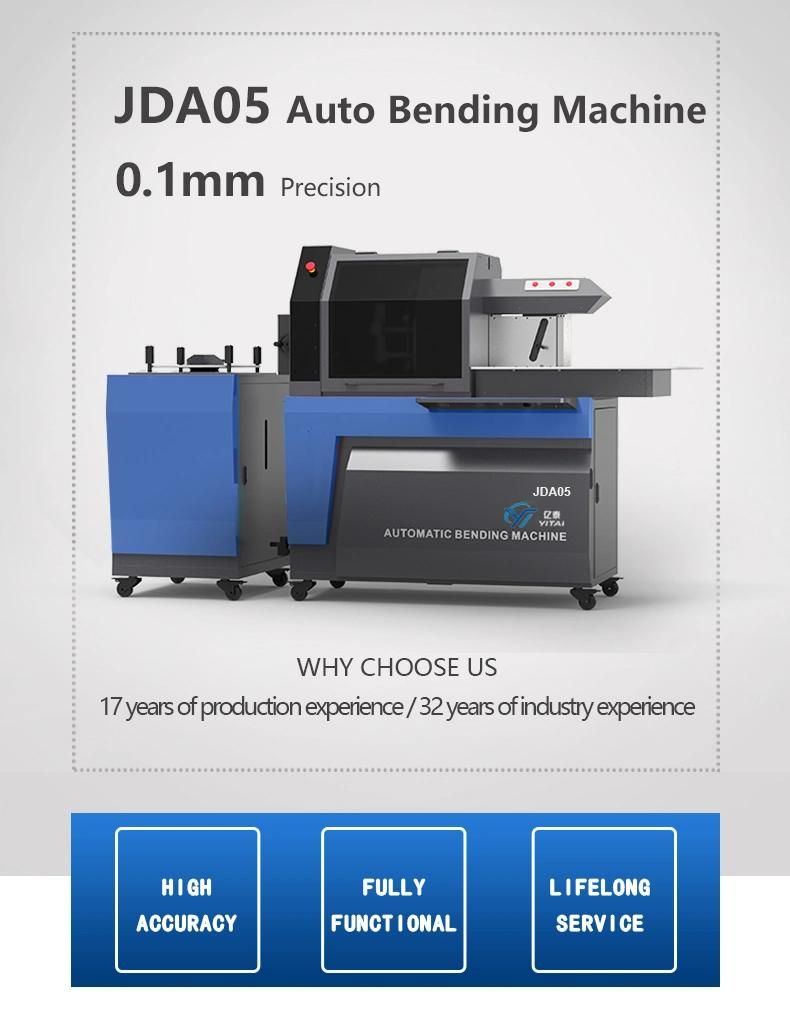

Ads Industry CNC Automatic 3D Channel Letter Bending Bender Machine for LED Signage

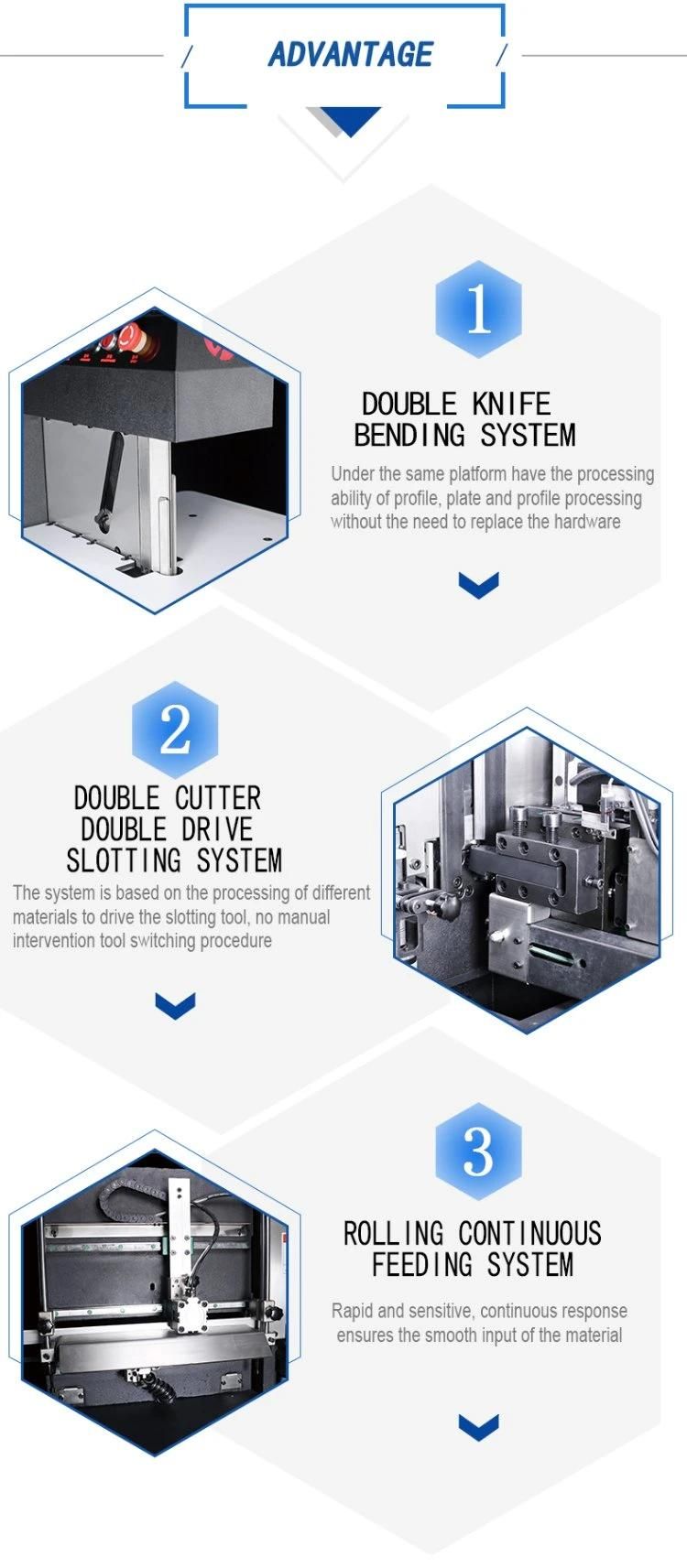

Fully functional, which has combined both the plate and profile process ng This system integrated the most convenient switching function of ma terial and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet aluminum plate and aluminum profile and other materials processing. Now the machine is the highest rate of return on investment in the market
| MOULD | JDA05 |
| SUITABLE MATERIAL | Stainless steel,Galvanized stee,Aluminum,Aluminium profile |
| MATERIAL SPECIFICATION | thickness<1. 2mm Flat aluminum/Aluminum profile/Single edge |
| HEIGHT | 10-130mm |

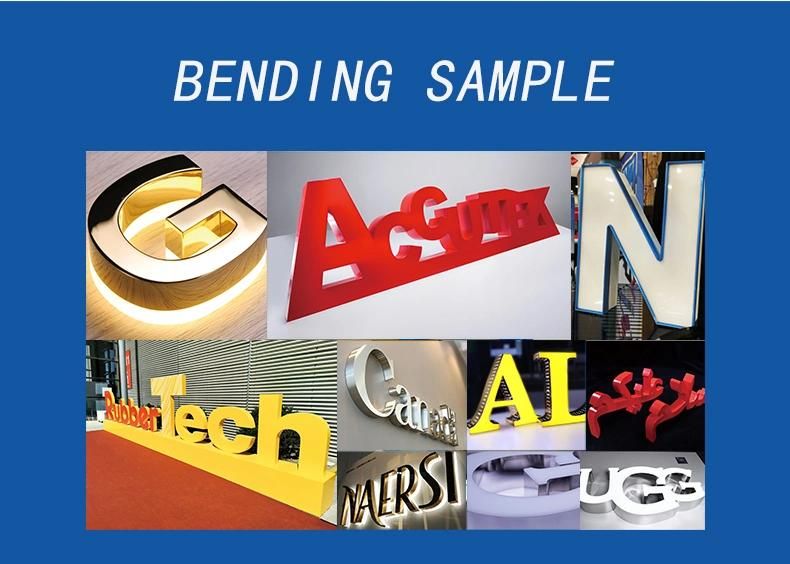

| SCOPE OF APPLICATION | Seiko Stainless Steel Letter /Epoxy resin letter /Endless Acrylic Letter /Light Box Letter /Party building/3d beveling sign /Mini-square letter /Super bright letter /Aluminum Trim Strip Letter /Channelume Luminous Letter |
| MIN BENDING ANGLE | R6 |
| SERVO CONFIGURATION | Four Japan Fuji Servo |
| FEEDING SYSTEM | Overall casting type and mechanical arm |
| SLOTTING SYSTEM | Overall casting type plane cutter and milling cutter |
| BENDING SYSTEM | Overall casting type and double blade alternative bending |
| PUNCHING SYSTEM | Automatic punching system |
| ACCURACY | 0.1mm |
| POWER | AC 220V 50Hz 3.5KW |
| AIR SUPPLY | 0.6m3/min |
| DIMENSION(mm) | L2478*W1050*H1583.1 |
| WEIGHT | 480KG |
