• Model NO.：HG-B100T
• Feeding Side：1 or 2
• Cylinders：Two
• Columns：Four
• Cutting Area：810*1400mm
• Cutting Force：60tons
• Control：by Computer Control, PLC Control
• Automatic Grade：Manual to Automatic
• Suitable for Material：Sponge,Foam,Plastic,Leather,EVA,EPE,PS,PVC,PE etc.
• Transport Package：Plastic Film or Packed in Wooden Cases
• Specification：CE
• Trademark：honggang
• Origin：Guangdong Foshan
• HS Code：847780000
• Production Capacity：3000sets,Years

Basic Info.

Model NO. HG-B100T Feeding Side 1 or 2 Cylinders Two Columns Four Cutting Area 810*1400mm Cutting Force 60tons Control by Computer Control, PLC Control Automatic Grade Manual to Automatic Suitable for Material Sponge,Foam,Plastic,Leather,EVA/EPE/PS/PVC/PE etc. Transport Package Plastic Film or Packed in Wooden Cases Specification CE Trademark honggang Origin Guangdong Foshan HS Code 847780000 Production Capacity 3000sets/Years

Product Description

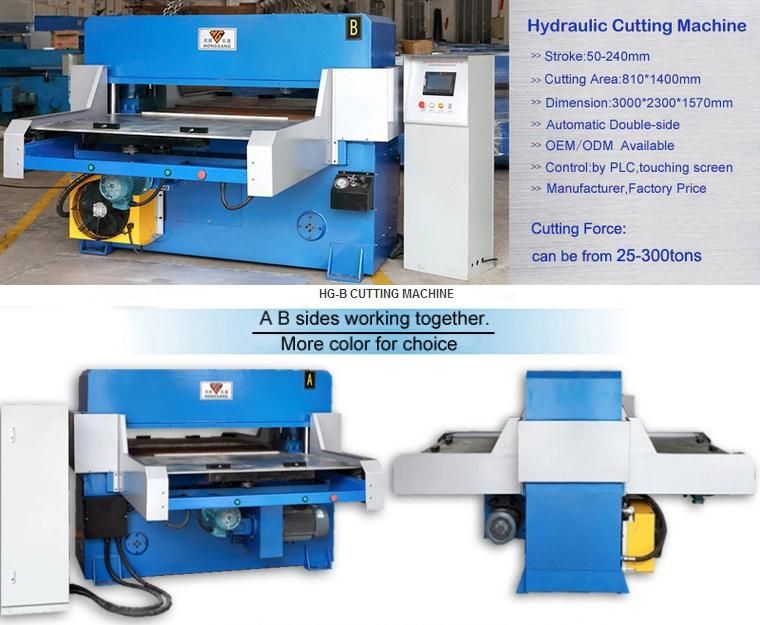

China Supplier Hydraulic Chocolate Plastic Packaging Press Cutting Machine (HG-B100T)

The cutting machine used for die cutting disposable blister or foam packing,EPE foam packaging,automatic/plane interiors etc.large materials sheet

1.Features and Advantages

1.controlled by PLC(programmable logic controller),with touching screen,to set and micro-adjust working pressure,cutting depth,feeding speed easier,faster and more precise.
2.double automatic working tables,increases ther output twice or triple.
3.auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure any working area.
4.powered by hydraulic system,slow down when the cutting die touches material,to confirm the precision between upper and bottom for thick materials.
5.central automatic lubrication system,increases machine durability,prolong the working time.

2.Product Specification

Model	Cutting Force	Dimension/(mm)	Cutting Area	Moter	Stroke	Net Weight
HG-B60T	60 Tons	3000*2300*1570	810*1400mm	5.5kw	50-240mm	4500kg
HG-B80T	80 Tons	3000*2300*1570	810*1400mm	7.5kw	50-240mm	5000kg
HG-B100T	100 Tons	3000*2300*1570	810*1400mm	7.5kw	50-240mm	5500kg
HG-B120T	120 Tons	3000*2300*1570	810*1400mm	11kw	50-240mm	6300kg
HG-B150T	150 Tons	3000*2300*1570	810*1400mm	11kw	50-240mm	7000kg

Remark:Cutting force can be from 50 tons to 300tons;cutting area can be (610/710/810/910mm)×(1400/1600/1800mm),etc

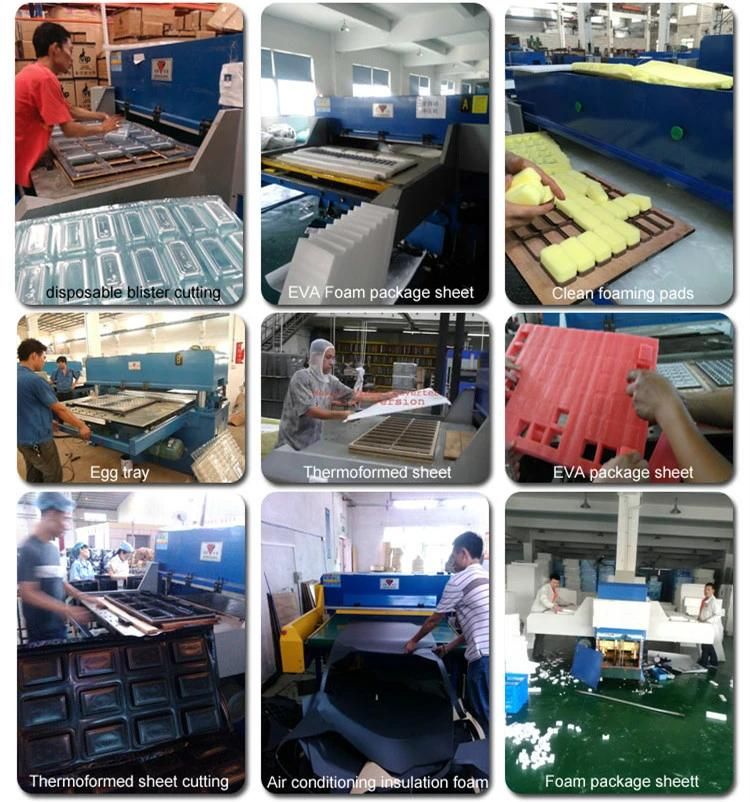

3. The Cutting Machine Working Show

4. Application Materials:

The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.



5. FQA:

1)What's warranty of machine?

12 months Warranty
Life-long maintenance service for machine



2)What's your after-sales service?

Engineer available to serve machines over seas;

Email and calling service in working hour;  24 hours door to door in domestic.



3)Can we test the our material by your machine free?

Yes, please contact us to send your matrial.



4)How to confirm how much ton pressure is fine?

Always 1m knife line need about 5 ton pressure.

please send your drawing or product photo, we can help you confirm.



5)Can you make dies & PP boards?

Yes, just send your drawing or material.

PP board will come with machine to you.



6)Are you a factory or trading company?
We are a factory and manufacturer



Don't know how many ton you need?

Please contact us!


If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:
